T32MZ

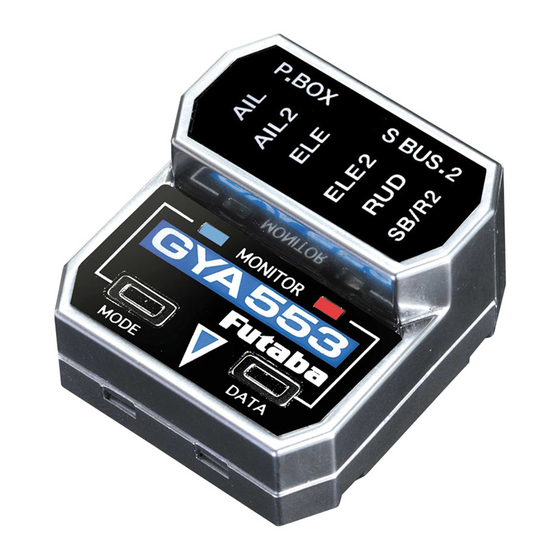

GYA553
Setting manual
1M23Z06813

Advertisement

loading
Need help?

Need help?

Do you have a question about the T32MZ and is the answer not in the manual?

Questions and answers

Related Manuals for FUTABA T32MZ

Summary of Contents for FUTABA T32MZ

  • Page 1 T32MZ GYA553 Setting manual 1M23Z06813...
  • Page 2 By installing the latest software (Ver3.4 ~) on the T32MZ, you can  setting the airplane gyro GYA553 on the T32MZ. Connection T32MZ and GYA553 Connection T32MZ and GYA553 T32MZ S.I/F CGY 接続コード（ジャイロに付属） Reciver Connection Cable  (included with gyro) GYA553 CAUTION Be sure to connect and disconnect the GYA553 and T32MZ connection cable with the power off.
  • Page 3 SETTING 1. Select “Gyro setting” on the last page of  Airplane Model Menu * At this time, if Gyro is not connected to T32MZ by wire, this screen  appears. When "GY Settings Transfer" is  selected, the gyro setting data saved  in T32MZ is written to the gyro. 2.  Select "Start" Tap "Yes" to display the GYA533 data saved in T32MZ. Select "Start" This will download the gyro data to the T32MZ. To Basic menu 3.  Home screen is displayed ◆ When copying data from Gyro A to Gyro B Connect the gyro A to the T32MZ and press [Start]. (Enter the data of A into T32MZ) If you press Start here, the B data will be download  to the T32MZ and the A data will be lost. Connect Gyro B to T32MZ and press [GY Settings Transfer]. (Put data on A into gyro B)

  • Page 4: Home Screen

    Home screen Home screen On the home screen, basic information such as gyro operation mode, sensitivity, battery voltage are displayed. Battery voltage Displays the voltage of the receiver battery connected to GYA. Gyro operation mode / Gyro gain Displays "AVCS" or "Normal" opera- tion mode and gyro gain of aileron (roll), elevator (pitch) and rudder (yaw) axis.
  • Page 5 Config Config Config 1/6 Gyro set mounting direction Set the mounting direction of GYA. Set mounting Config 1/6 WING/TAIL Set with the wing type/tail type of GYA553. The wing type/tail type of the transmitter is not used and is normal. Select wing type Select tail type...
  • Page 6 Config Config Config 1/6 Servo type Select the servo type according to the servo to be used. Digital servo → DG : 285 Hz Analog servo → AN : 70 Hz action. Digital servo Analog servo Config 1/6 SB/R2  OUT S.BUS Rudder 2 S.BUS devices can  be connected to this  port. When using two rudder servos Program box S.BUS 2 MODE LED DATA LED MODE SW DATA SW Aileron 1 S.BUS/Rudder 2 Aileron 2 Rudder  Elevator 2 Elevator Head direction mark...
  • Page 7 Config Config Config 2/6   Gyro direction For dual aileron, dual elevator, and dual rudder aircraft, check the operating direction of each second aile ron/elevator/rudder. Tilt the airplane to the left on  the ground and check that the  ailerons operate to the right. Turn the airplane to the right on  the ground and check that the  rudder operates to the left. Raise the airplane with its nose  upward and check that the  elevator operates downward. Config 3/6 Neutral offset Neutral position setting for each servo. This will move the neutral to the desired position.
  • Page 8 Config Config Config 4/6    5/6 Servo limit This is the limit setting for each servo. The position Aileron example Maximum angle Stick to full right Adjust the value (%) to reach the  maximum operating position Maximum angle Stick to full left Adjust the value (%) to reach the  maximum operating position Config 6/6 Reset...
  • Page 9 (in the FUNCTION menu) assignments. If any changes are made within the transmitter function assignments, then it will also be necessary to make the changes within the S.BUS function assignments. To change the channel, GYA553 and T32MZ must be connected.
