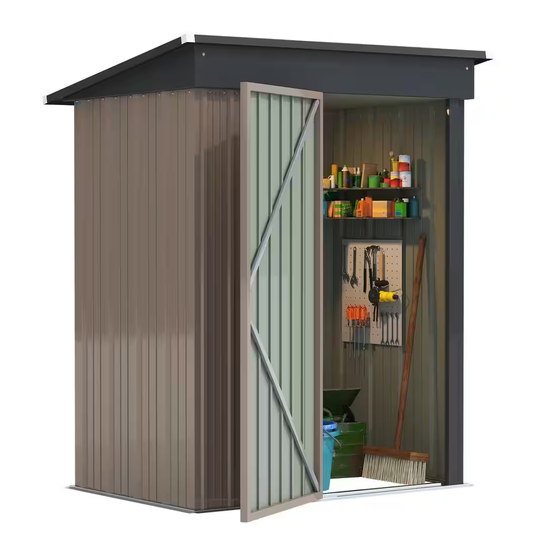

- Page 1 ASSEMBLY INSTRUCTIONS METAL GARDEN SHED SKU: T-PS1053S0BNA YOUR Metal Garden Shed LIFE BUILDER Installation Tutorial https://www.patiowell.com/ pages/video-t-ps1053s0bna www.patiowell.com saleservice@patiowell.com...
-
Page 2: Site Preparation
SITE PREPARATION Level the ground surface. Recommendation: Construct a wooden or concrete base as a foundation. The external dimensions of the product : 71.1’’ 61’’ 34.3’’... -
Page 3: Before Starting Assembly
Requires two people and takes 2-3 hours for Installation. Recommended to wear gloves to avoid scratches. Please read the manual carefully before installation. DO NOT RETURN YOUR UNIT TO THE STORE Contact us first saleservice@patiowell.com... - Page 4 ROOF PARTS P1 X2 P2 X1 P3 X1 M4 X2 S3 X1 S4 X1 S2 X1 GC X4 M3 X4...
- Page 5 WALL PARTS W1A X5 W2A X4 W3A X1 ULA X1 BR X1 B1 X1 URA X1 BL X1 B2 X1 V1 X80 V2 X150 L3 X1 L1 X1 L2 X1 UP1 X1...
-
Page 6: Door Parts
DOOR PARTS 20 X2 DH X2 DG X1 DX1 X2 DL1 X1 DR1 X1 DF X1 SCREW inch inch F1(X160) M4*10 F2(X8) M4*10 For GC inch inch F3(X16) M5*12 F5(X4) M4*16... - Page 8 CONTENTS Bottom frame 09-10 (page) Wall 11-18 (page) Roof 19-21 (page) Door 22-24 (page)
- Page 9 STEP 1 F1 X2 STEP 2 F1 X2...
- Page 10 STEP 3 F1 X4 STEP 4 Tips: Align the gasket with the hole, and then use the electric drill to drill the V2 into the hole.
- Page 11 STEP 5 Please align the screws with the screw holes for installation. F1 X4 V2 X4 STEP 6 F1 X4 V2 X4...
- Page 12 STEP 7 F1 X4 V2 X4 STEP 8 F1 X3 V2 X3...
- Page 13 STEP 9 Tips: Pay attention to distinguishing F1 X6 V2 X6 the direction when installing. STEP 10 Tips: Pay attention to distinguishing the direction when installing. F1 X4 V2 X4...
- Page 14 STEP 11 Tips: Pay attention to distinguishing the direction when installing. F1 X4 V2 X4 STEP 12 F1 X8 V2 X8...
- Page 15 STEP 13 F1 X8 V2 X8 STEP 14 F1 X16 V2 X16...
- Page 16 STEP 15 F1 X4 V2 X4 STEP 16 Tips: Internal setup. F1 X2 V2 X2...
- Page 17 STEP 17 F1 X5 V2 X5 STEP 18 Tips: Internal setup. F1 X2 V2 X2...
- Page 18 STEP 19 F1 X4 V2 X4 STEP 20 Tips: Internal setup. F1 X4 V2 X4...
- Page 19 STEP 21 Tips: Internal setup. F1 X8 V2 X8 STEP 22 F1 X4 V2 X5 F2 X1...
- Page 20 STEP 23 F1 X4 V2 X5 F2 X1 STEP 24 When installing P1, please note that these two holes need to be aligned installed. F1 X32 V2 X32...
- Page 21 STEP 25 F1 X2 V2 X2 STEP 26 F5 X4...
- Page 22 STEP 27 STEP 28...
- Page 23 STEP 29 F1 X8 V2 X8 F2 X6 STEP 30 F1 X6 V2 X6...
- Page 24 STEP 31 F3 X8 STEP 32 F1 X2 F3 X8...
- Page 25 STEP 33 Put it on the screw tip to prevent injury. V1 X80 FINISH...
-
Page 26: Care And Safety
CARE & SAFETY • Unsuitable for storage of flammable or corrosive substances. • It is of utmost importance to assemble all of the parts according to the directions. Do not skip any step. • Please consult your local authorities if any permits are required to erect shed. •...
