VEVOR OVERHEAD GARAGE RACK Installation Instructions Manual page 8

Completing the following 1~3 steps to assemble the long C Channel beam. 2pcs
connecting beam design needed only! The whole beam design can ignore the
assembly steps on this page.

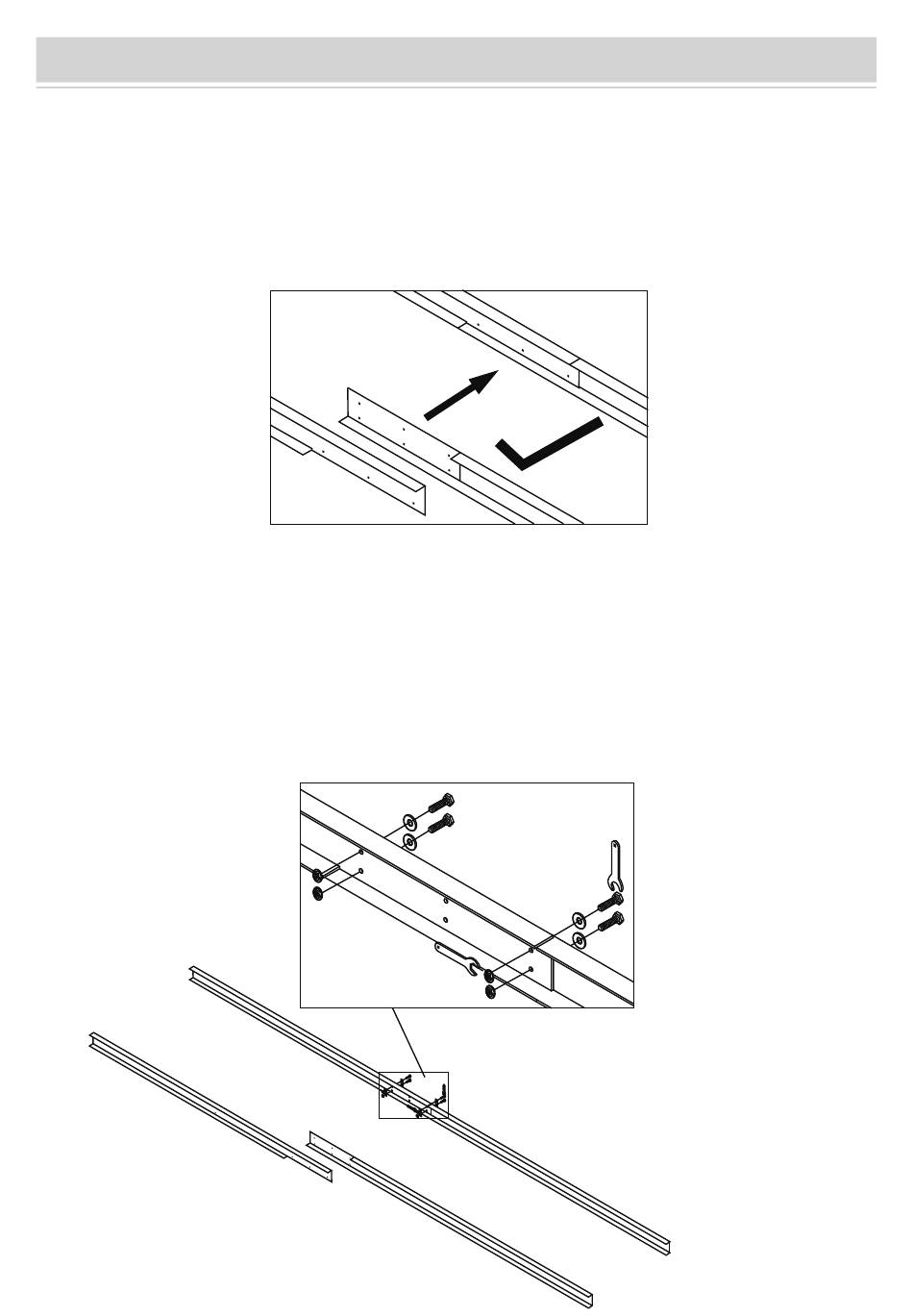

Step 1, Align the holes at the center of the 2pcs C Channel beams as seen in the
illustration (8ft size only).
Step 2, Using 4pcs M6x16 Hex bolts, 4pcs Hex nut and 4pcs Washer, assemble the C
Channel beam together on the outermost
Holes as seen in the following picture.
(Tips: to avoid alignment issues, place the remaining 2pcs M6 x 16 Hex bolts in the
center holes, as these will be used for the center support in a later step.)
Step 3, Repeat steps 1 and 2 for the remaining C Channel beams.
Pre-Assenbly
06
