3 - Installation and User Guidance
3.2

Installation

Connect the device to a USB host for power and control in an attended or unattended environment. The
kiosk version includes features for secure mounting to a surface.
The DynaFlex II PED should be placed away from sources of heat, moisture, dust, and electromagnetic
radiation (e.g., display screens, motors, and security tag mechanisms).
When mounting DynaFlex II PED with kiosk back cover, the device must be installed such that
cardholders have a full, unobstructed view of the housing around the card insertion slot opening ("entry
zone") and magnetic stripe reader swipe path prior to insertion or swipe see Figure 3-1 - Unobstructed
View of Card Insertion Slot and Card Swipe Path below. This is to allow cardholders to easily detect
suspicious objects in or around the card paths, such as bugs / skimmers / tapping mechanisms, and their
wires or antennas. Installation height is one factor in meeting this requirement. The DynaFlex II PED is
designed to maximize visibility of all card paths. Assuming the solution design does not add features that
obstruct the view of the slot, any practical mounting height fulfills the visibility requirement.

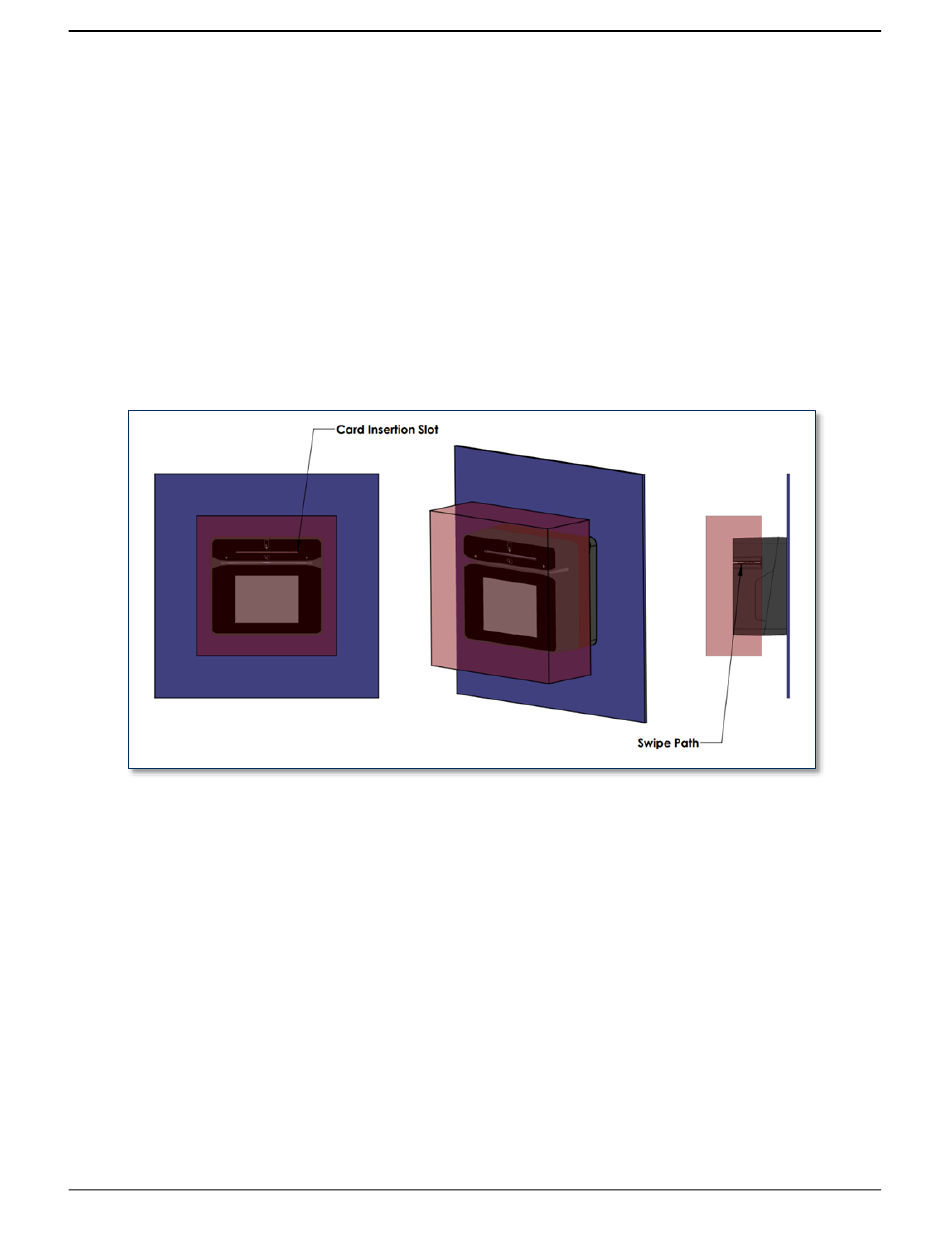

Figure 3-1 - Unobstructed View of Card Insertion Slot and Card Swipe Path
3.3

Environmental Conditions

The specified environmental conditions to operate and store the device are:
•
Operating temperature range: 0°C to 45°C / 5% to 90% RH
•
Storage temperature range: -10°C to 60°C / 5% to 90% RH
For safety, battery charging is disabled when the device is connected outside the recommended operating
temperature range.
The security of the reader is not compromised by altering the environmental conditions outside the stated
operating ranges above. Any temperature or operating voltage outside the values in the table below will
trigger environmental security protections, resulting in a tamper condition. The device will need to be
returned to the factory for inspection before this condition can be cleared.
