SECTION 3: INSTALLATION
HARDWARE INSTALLATION
To connect the IPAD to a computer, connect its USB cable to the USB port on the computer as
shown in Figure 3-1. Note: the standard USB cable P/N 30019317 is six feet long.
Warning
Connecting or disconnecting the USB cable from the back side of the IPAD when the
computer is ON may clear the encryption keys.

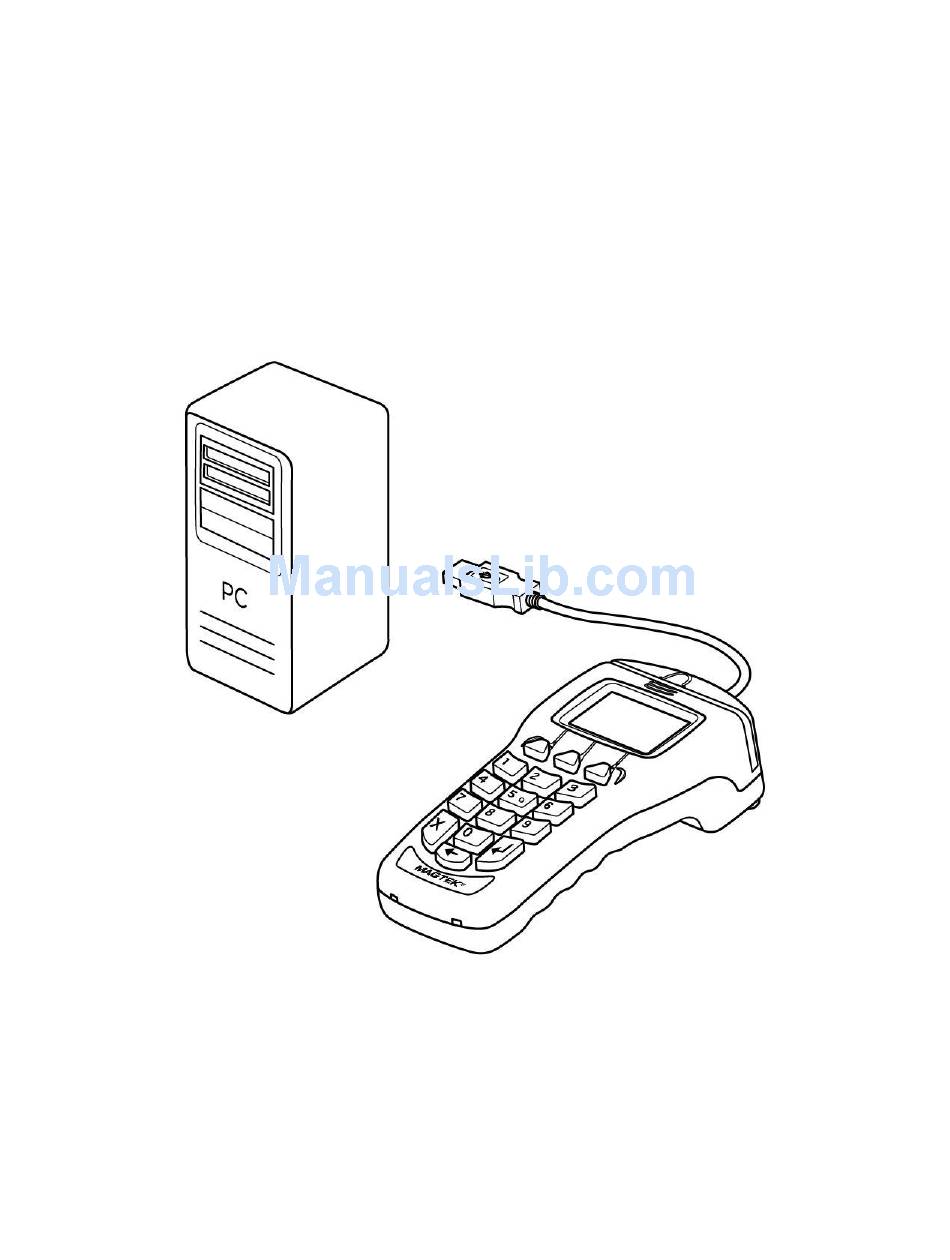

Figure 3-1. USB Interface
9
