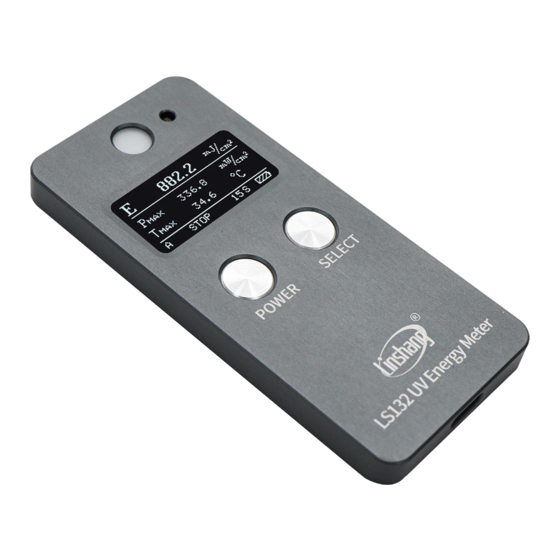

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS132 UV Energy Meter User Manual V2.01 Please read this manual carefully before using and reserve it for reference. 4-19-2021 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction UV energy meter can measure UV energy, UV intensity and temperature at the same time. It is suitable for UV energy, UV intensity and temperature detection of UV curing machines, UV dryers, mobile phone UV coating machines, exposure machines, printing machines and other equipment.
- Page 3 Shenzhen Linshang Technology Co., Ltd. III. Spectral response curve IV. Characteristics Adopt ultra-small size design, the thickness is 7.6mm and the width is 44mm. High-precision and quick-response temperature detector, dynamically measuring the actual temperature in the UV curing machine. Built-in timer, the meter can accurately record and display the UV curing time.
- Page 4 Shenzhen Linshang Technology Co., Ltd. value, the measurement is automatically started. Select Manual, short press the “POWER” button start a measurement and end a measurement. Short press the “POWER” button to confirm and start another setting. Choose “Auto”, the meter enters the trigger power value setting interface;...
- Page 5 Shenzhen Linshang Technology Co., Ltd. last measurement interface (STOP interface). As shown below: In the “STOP” interface, long press the “POWER” button to power off the meter. In the “STOP” interface, the meter will automatically power off in 3 minutes without any operation.
- Page 6 Shenzhen Linshang Technology Co., Ltd. trigger condition is met, enter the measurement interface (RUN state). The interface dynamically displays energy E, real-time power value P, real-time temperature value T and measurement time. When the recording time reaches 32 minutes or the power value is less than the set trigger power, the measurement is automatically ended and enters the STOP interface.
- Page 7 Shenzhen Linshang Technology Co., Ltd. No Heat Shield Using Heat Shield VIII. Packing details Description Quantity Unit UV Energy Meter USB data cable DC5V Power adapter User Manual Certificate/Warranty card Plastic Case Heat Shield IX. Service The meter has one-year warranty. If the meter works abnormally, please send the whole meter to the company for maintenance.
- Page 8 Shenzhen Linshang Technology Co., Ltd. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com 4-19-2021 Page 8 of 8...
