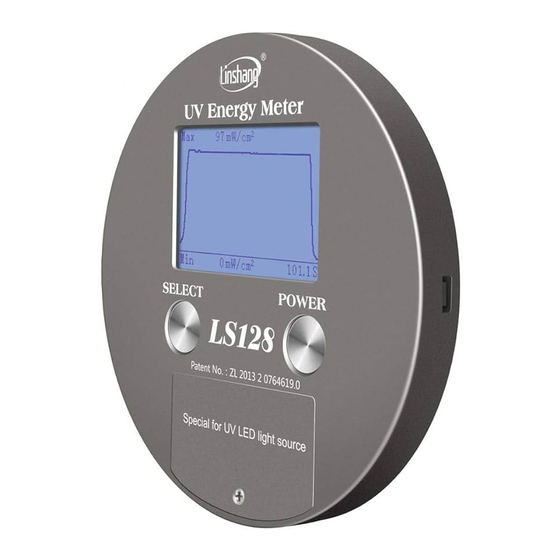

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS128 UV Energy Meter User Manual V7.0 Please read this manual carefully before using and reserve it for reference. 7-29-2020 Page 1 of 9...
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. I. Product Introduction UV energy meter can measure UV energy, UV intensity and temperature at the same time. It is suitable for UV energy, UV intensity and temperature detection of UV curing machines, UV dryers, mobile phone UV coating machines, exposure machines, printing machines and other equipment. -
Page 3: Spectral Response Curve
Shenzhen Linshang Technology Co., Ltd. III. Spectral response curve IV. Characteristics It is the real smart UV energy meter with a large LCD to display the temperature and irradiance curve directly. It is equipped with a USB port and the computer software can read the detailed record data, generating data curve and print out test reports. - Page 4 Shenzhen Linshang Technology Co., Ltd. button is for selection and “POWER” button is for confirmation. A. Trigger mode: Auto/Manual Short press the “SELECT” button and select Auto/Manual Select Auto, the automatic trigger mode, when the power value is greater than the selected trigger value, the measurement is automatically started.
- Page 5 Shenzhen Linshang Technology Co., Ltd. Standard Selection: LS-STD (Enterprise standard) 2. ON/OFF In POWER OFF state, short press “POWER” button to power on the meter. After turning on the meter, the meter displays the calibration coefficient, version number, manufacturing date, calibration date, serial number, etc.
-
Page 6: Usb Communication
Shenzhen Linshang Technology Co., Ltd. "POWER" button or after 32 minutes, the measurement is over and enter the STOP interface. Automatic mode: After pressing the button to confirm the new measurement, the meter enter the READY state to clear the historical data and wait for the trigger condition (Trigger power) to be met, the energy display "----"... - Page 7 Shenzhen Linshang Technology Co., Ltd. Recording period: 32 minutes Irradiance data storage interval: 32 times /s, up to 61440 irradiance record data. Temperature data storage interval: 2 times/s, up to 3840 temperature data In the “STOP” mode, all recording data in the meter can be read, the curves can be displayed, data can be exported into EXCEL and reports can be printed with the PC software.
- Page 8 Shenzhen Linshang Technology Co., Ltd. VII. Notes 1. The meter sensor is at the back of meter 2. When not in use, please turn off the meter 3. Avoid contact with corrosive materials and keep away from high humidity 4. Please put it in the specialized package after power-off and keep properly 5.
-
Page 9: Packing List
Shenzhen Linshang Technology Co., Ltd. VIII. Packing list Description Quantity Unit UV Energy Meter USB cable Software USB flash disk AAA battery Small cross screwdriver User Manual Certificate/Warranty card Plastic Case IX. Service The meter has one-year warranty. If the meter works abnormally, please send the whole meter to the company for maintenance.
