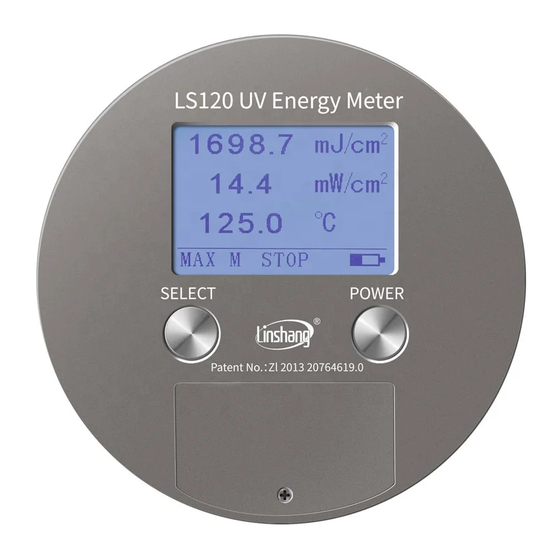

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS120 UV Energy Meter User Manual V8.01 Please read this manual carefully before using and reserve it for reference. 7-29-2020 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction UV energy meter can measure UV energy, UV intensity and temperature at the same time. It is suitable for UV energy, UV intensity and temperature detection of UV curing machines, UV dryers, mobile phone UV coating machines, exposure machines, printing machines and other equipment.
- Page 3 Shenzhen Linshang Technology Co., Ltd. IV. Characteristics of Meter It is the real smart UV energy meter with a large LCD to display the temperature and irradiance curve directly. It is equipped with a USB port and the computer software can read the detailed record data, generating data curve and print out test reports.
- Page 4 Shenzhen Linshang Technology Co., Ltd. Short press the “SELECT” button to set the trigger power value and you can long press the button for quick setting. Short press the “POWER” button to confirm the setting and the meter enters the smooth interface.
- Page 5 Shenzhen Linshang Technology Co., Ltd. READY: Ready state; in the auto trigger mode, this means the meter is waiting for triggering to begin a measurement. RUN: Measuring state; this means the meter is collecting data. STOP: Stop state, this means the data measurement finished.
- Page 6 Shenzhen Linshang Technology Co., Ltd. In the stop status, long press the " SELECT " key to clear the current test data. 5. USB communication This meter has the function of 32-minutes data recording. Recording period: 32 minutes Irradiance data storage interval: 32 times /s, up to 61440 irradiance record data.
- Page 7 Shenzhen Linshang Technology Co., Ltd. generate a report automatically and print, and if a PDF printer is installed, the electronic version report can be printed in PDF format. This is convenient for the recording and archiving of test data. Record data can be read by connect USB cable with computer directly (when the meter is connected to the computer with USB port for the first time, you will be prompted to restart the computer so as to PC load the driver automatically).
- Page 8 Shenzhen Linshang Technology Co., Ltd. VIII. Packing list Description Quantity Unit UV Energy Meter USB cable Software USB flash disk AAA battery Small cross screwdriver User Manual Certificate/Warranty card Plastic Case IX. Service The meter has one-year warranty. If the meter works abnormally, please send the whole meter to the company for maintenance.
