Summary of Contents for LINSHANG LS108A

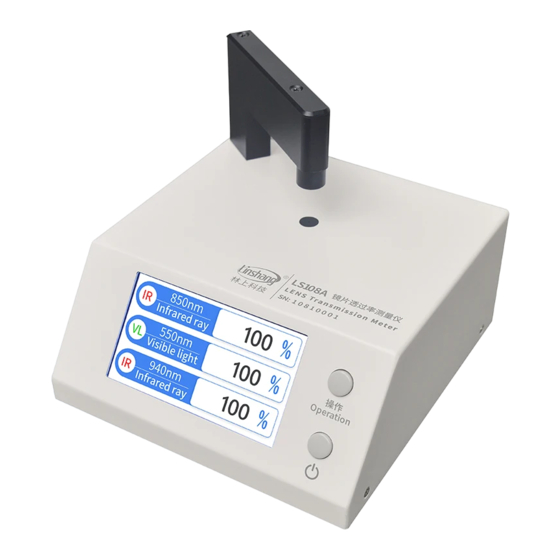

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS108A/LS108D Lens Transmission Meter (2nd) User Manual V9.0 Please read this manual carefully before using and reserve it for reference. Note: Test hole diameter: LS108A is 1mm, LS108D is 0.5mm 9-7-2020 Page 1 of 6...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction Lens transmission meter use infrared light sources of 850nm and 940nm and a visible light source of 550nm to illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test.
- Page 3 Shenzhen Linshang Technology Co., Ltd. for selection. Short press the "Operation" button to select the setting item: A. Select "Language", short press " " button to enter the setting item you selected: Short press the "Operation" button to select Chinese/English: Select "Chinese": the measurement interface will switch to Chinese;...
- Page 4 Shenzhen Linshang Technology Co., Ltd. Select “550nm/940nm”, the measurement interface display 550nm visible light transmittance, the 940nm infrared transmission; Short press the " " button to confirm the setting and return to select the setting item. C. Select "Exit", short press the "...
- Page 5 Shenzhen Linshang Technology Co., Ltd. 4. PC software counting statistics function The meter has a USB interface and provide PC software to complete the functions such as the inspection quantity counting, pass rate, pass and fail judgment during the production testing process. For details, please refer to the PC software and software user manual in the attached U disk.
- Page 6 2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the meter inspection service for free. 4. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com...
