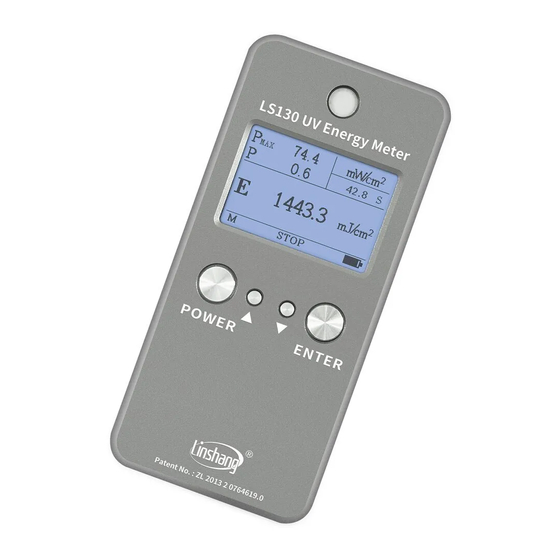

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS130 UV Energy Meter User Manual V2.01 Please read this manual carefully before using and reserve it for reference. 2019-7-25 Page 1 of 9...
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. I. Product Introduction This instrument can measure the UV energy, UV irradiance at the same time. It can be used to measure the UV irradiance and energy of UV drying machine, exposure machine and printing machine, etc. It’s suitable for the UV intensity and energy measurement of high pressure mercury lamp and the halogen lamp. -
Page 3: Operation
Shenzhen Linshang Technology Co., Ltd. IV. Characteristics It is the real smart UV energy meter with a large LCD to display. It is equipped with a USB port, and the detailed record data can be read through pc software, generating data curve and print out test reports. - Page 4 Shenzhen Linshang Technology Co., Ltd. OFF: This option can be selected if no smooth processing will be performed and the UV lamp is powered with direct current 50HZ: This option must be selected if frequency of the alternating current is 50HZ 60HZ: This option must be selected if frequency the alternating current is 60HZ Short press the “ENTER”...
- Page 5 Shenzhen Linshang Technology Co., Ltd. In the STOP interface, the meter will power off without any operation in 3 minutes. In the state of “READY”, the longest waiting time is 50 minutes .If the measurement cannot be triggered after 50 minutes, the meter will shut down automatically.
-
Page 6: Low Power Alarm
Shenzhen Linshang Technology Co., Ltd. short press the "ENTER" button to toggle between the measurement result and power curve. In the stop status, long press the "ENTER" key to clear the current test data. 5. Low Power Alarm When the battery power is low, the battery symbol "... - Page 7 Shenzhen Linshang Technology Co., Ltd. The report generation and printing function should be specially explained. For test data, the software can generate a report automatically and print, and if a PDF printer is installed, the electronic version report can be printed in PDF format. This is convenient for the recording and archiving of test data.
-
Page 8: Standard Packing List
Shenzhen Linshang Technology Co., Ltd. VII. Precautions The meter sensor needs to be facing towards the UV light source. When not in use, please turn off the meter. Avoid contact with corrosive materials and keep away from high humidity. Please put it in the plastic case after power-off and keep properly. - Page 9 Shenzhen Linshang Technology Co., Ltd. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales@linshangtech.com 2019-7-25 Page 9 of 9...
