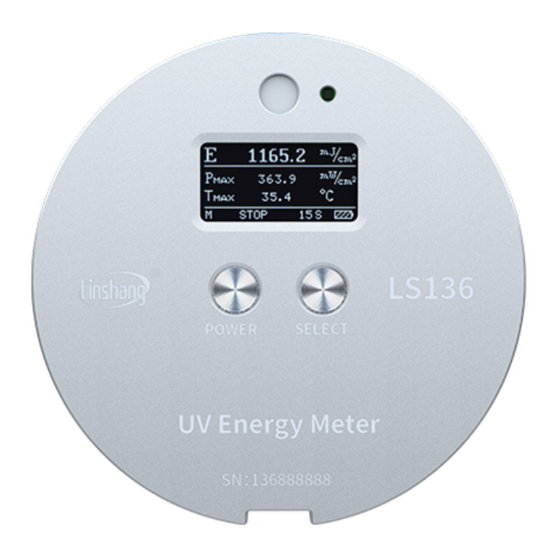

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS136 UV Energy Meter User Manual V1.0 Please read this manual carefully before using and reserve it for reference. 4-19-2021 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction UV energy meter can measure UV energy, UV intensity and temperature at the same time. It is suitable for UV energy, UV intensity and temperature detection of UV curing machines, UV dryers, mobile phone UV coating machines, exposure machines, printing machines and other equipment.
- Page 3 Shenzhen Linshang Technology Co., Ltd. III. Spectral response curve IV. Characteristics High-precision and quick-response temperature detector, dynamically measuring the actual temperature in the UV curing machine. Built-in timer, the meter can accurately record and display the UV curing time. Metal shell, high temperature resistant design, the meter can run in an environment of 100℃ for a long time.
- Page 4 Shenzhen Linshang Technology Co., Ltd. Select Manual, short press the “POWER” button start a measurement and end a measurement. Short press the “POWER” button to confirm and start another setting. Choose “Auto”, the meter enters the trigger power value setting interface; Select Manual, the meter enters the smooth setting interface.
- Page 5 Shenzhen Linshang Technology Co., Ltd. In the “STOP” interface, long press the “POWER” button to power off the meter. In the “STOP” interface, the meter will automatically power off in 3 minutes without any operation. In the automatic trigger measurement “Ready” state, the longest waiting time is 50 minutes. If the measurement cannot be triggered within 50 minutes, it will automatically turn off.
- Page 6 Shenzhen Linshang Technology Co., Ltd. displays energy E, real-time power value P, real-time temperature value T and measurement time. When the recording time reaches 32 minutes or the power value is less than the set trigger power, the measurement is automatically ended and enters the STOP interface. The interface displays the measurement result energy E, maximum power value PMAX, maximum temperature value TMAX and measurement time.
- Page 7 The meter has one-year warranty. If the meter works abnormally, please send the whole meter to the company for maintenance. Provide users with spare parts and lifelong maintenance services. Provide the users with the meter inspection service for free. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. 4-19-2021 Page 7 of 8...
- Page 8 Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com 4-19-2021 Page 8 of 8...
