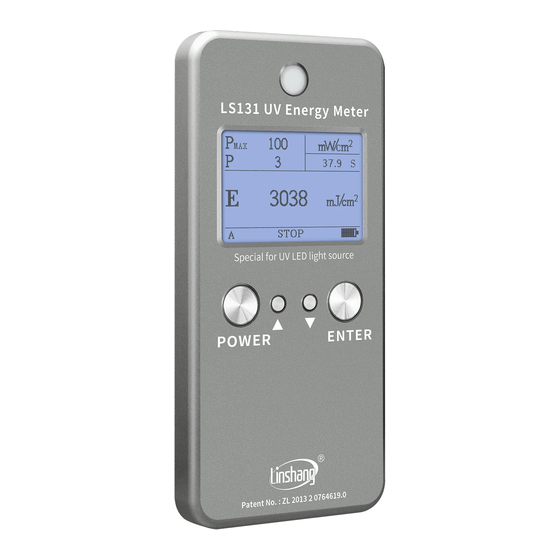

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS131 UV Energy Meter User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 2019-7-25 Page 1 of 9...
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. I. Product Introduction UV Energy meter can measure the UV energy, UV irradiance simultaneously and record UV power data as well as the power curve. It can be used to measure the UV irradiance and energy of the machine which using UV LED light source, such as UV drying machine, exposure machine and printing machine. -
Page 3: Spectral Response Curve
Shenzhen Linshang Technology Co., Ltd. III. Spectral response curve IV. Characteristics It is the real smart UV energy meter with a large LCD to display. It is equipped with a USB port, and the detailed record data can be read through PC software, generating data curve and print out test reports. - Page 4 Shenzhen Linshang Technology Co., Ltd. A. Trigger mode: (the measurement mode of Auto and Manual) Short press “▲” or “▼”to choose Auto/Manual Choose “Auto”-the auto trigger mode, the meter will start and stop automatically. Choose “Manual”-the measurement will start and stop manually.
- Page 5 Shenzhen Linshang Technology Co., Ltd. E. Factory default settings: Trigger mode: Manual Smooth: 50HZ Standard Selection: LS-STD (Enterprise standard) 2. ON/OFF In POWER OFF state, short press “POWER” button to power on the meter. Information such as calibration date, production date, version number, serial number will be showed on the meter after powering on and enter into the last measurement interface -STOP Interface.
- Page 6 Shenzhen Linshang Technology Co., Ltd. second(RUN state).Short press the “POWER” key or when the measurement time reaches 32 minutes, the measurement ends and enters into the STOP interface. Automatic measurement：Press the button to start the new measurement then enter into the “READY”...
-
Page 7: Pc Software Instruction
Shenzhen Linshang Technology Co., Ltd. VI. PC Software Instruction In the STOP interface (other interfaces cannot be connected to the PC software ), plug in the USB cable, open "UV Energy meter Vx.x" software then the meter can be connected to the computer for you to read the data .The software has various functions,... - Page 8 Shenzhen Linshang Technology Co., Ltd. VII. Precautions The meter sensor needs to be facing towards the UV light source. When not in use, please turn off the meter Avoid contact with corrosive materials and keep away from high humidity. Please put it in the plastic case after power-off and keep properly.
-
Page 9: Standard Packing List
Provide users with spare parts and lifelong maintenance services. Provide the users with the meter calibration service. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales@linshangtech.com...
