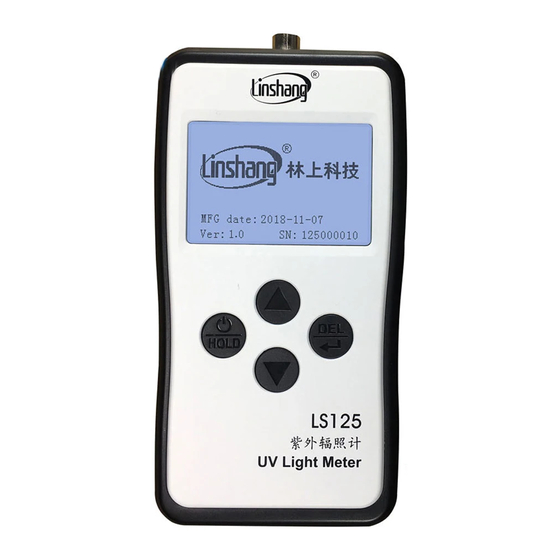

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS125 Multiple probe UV Light Meter User Manual V3.0 Please read this manual carefully before using and reserve it for reference. 2019-01-19 Page 1 of 12...
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. I. Product Introduction This instrument can support 9 kinds of UV probes according to different ultraviolet spectrum, measuring range, test hole diameter and application industry. Spectral Test Hole Probe Model Application Industry response Diameter Intensity and energy measurement of... -
Page 3: Probe Parameters
Shenzhen Linshang Technology Co., Ltd. II. Probe Parameters 1. UVC-X0 probe 1. Spectral response: 230nm-280nm, λp = 254nm 2. Power measuring range: 0 - 200000μW/cm 3. Resolution: 0.1μW/cm 4. Energy measuring range: 0-9999999μJ/cm 5. Record time: 0-99999s 6. Measuring accuracy: ±10% 7. - Page 4 Shenzhen Linshang Technology Co., Ltd. 2. Power measuring range: 0 - 200000μW/cm 3. Resolution: 0.1μW/cm 4. Energy measuring range: 0-9999999μJ/cm 5. Record time: 0-99999s 6. Measuring accuracy: ±10% 7. Sampling speed: 6 times/second 8. Optional unit:μW/cm (default), mW/cm , W/m 9.
- Page 5 Shenzhen Linshang Technology Co., Ltd. 7. Sampling speed: 2048 times/second 8. Optional unit: mW/cm (default), W/m 9. Test Hole Diameter: ￠=10mm 10. Probe size: length 39mm * width 32mm * thickness 15mm 6. UVA-X1 probe 1. Spectral response: 315nm-400nm, λp = 365nm 2.
-
Page 6: Host Parameters
Shenzhen Linshang Technology Co., Ltd. 8. UVALED-X1 probe 1. Spectral response: 340nm-420nm, calibrated with 395nm UV LED 2. Power measuring range: 0 - 20000mW/cm 3. Resolution: 1mW/cm 4. Energy measuring range: 0-9999999mJ/cm 5. Record time: 0-99999s 6. Measuring accuracy: ±10% 7. - Page 7 Shenzhen Linshang Technology Co., Ltd. 5. Probe connection: push pull (Snap-in style)，Aviation socket. III. The spectral response curves of probes 2019-01-19 Page 7 of 12...
-
Page 8: Product Features
Shenzhen Linshang Technology Co., Ltd. IV. Product features Replaceable probe design, support 9 UV probes. Advanced digital probe technology, it has high precision and good anti - jamming ability. Instrument intelligent recognize probe type and adjust the display interface intelligently. - Page 9 Shenzhen Linshang Technology Co., Ltd. A. Select whether to automatically power off (Auto Off: ON/OFF) Short press the “ ” or “ ” button to select ON/OFF Selecting ON indicates that the instrument automatically powers off in 10mins after no operation.
- Page 10 Short press the “ ” button or “ ” button to select the standard. LS-STD (Enterprise standard): The meter is calibrated according to Linshang standard. JJG 879-2015 (Chinese standard): The meter is calibrated according to Chinese standard. Short press the “...
- Page 11 Shenzhen Linshang Technology Co., Ltd. 4. Record data query mode Short press “ ” or “ ” to scroll up or down a record data. No.1 is the latest recorded data (up to 9 records can be stored, and the oldest record will be deleted automatically when exceed 9 recorded data).
-
Page 12: Packing List
Provide users with spare parts and lifelong maintenance services Provide the users with the meter calibration service Free technical support for long term Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com...
