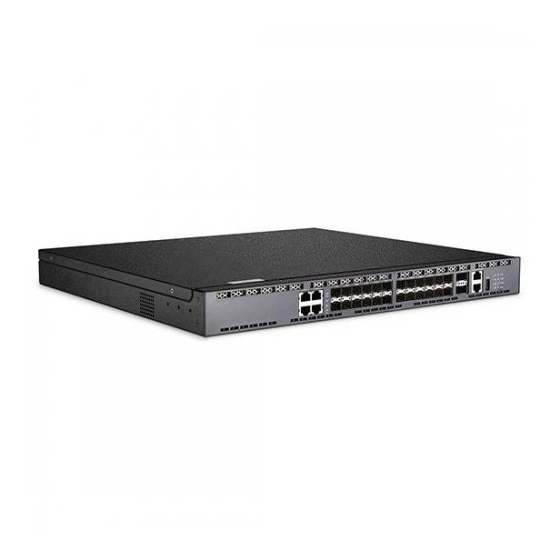

S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION
Multicast Configuration
Model: S5900-24S4T2Q

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5900-24S4T2Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FS S5900-24S4T2Q

Summary of Contents for FS S5900-24S4T2Q

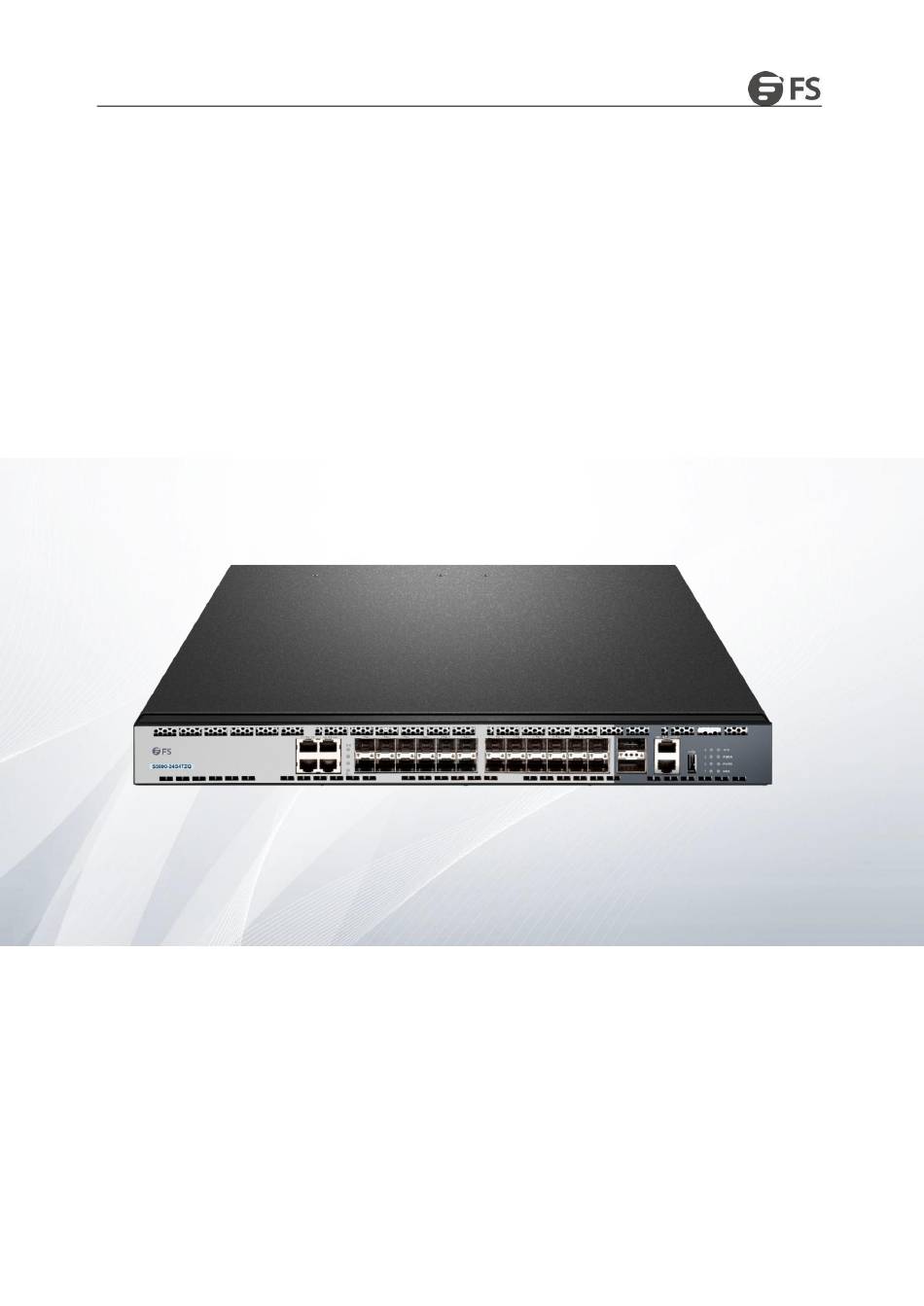

  • Page 1 S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Multicast Configuration Model: S5900-24S4T2Q...

  • Page 2: Table Of Contents

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Table of Contents 1. Multicast Overview.......................................1 1.1 Multicast Routing Realization ..................................1 1.2 Multicast Routing Configuration Task List ..............................2 1.2.1 Basic Multicast Configuration Task List ............................2 1.2.2 IGMP Configuration Task List ................................2 1.2.3 PIM-DM Configuration Task List ............................... 2 1.2.4 PIM-SM Configuration Task List ...............................
  • Page 3 S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 5.2.3 Configuring Candidate BSR ................................16 5.2.4 Configuring Candidate RP ................................16 5.2.5 Displaying PIM-SM Multicast Route ............................. 17 5.2.6 Clearing Multicast Routes Learned by PIM-SM ..........................17 5.3 Configuration Example ..................................17 5.3.1 PIM-SM Configuration Example (The switch is configured on the VLAN port) ................17...

  • Page 4: Multicast Overview

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 1. Multicast Overview The chapter describes how to configure the multicast routing protocol. For the details of the multicast routing commands, refer to the part "Multicast Routing Commands". The traditional IP transmission allows only one host to communicate with a single host (unicast communication) or to communicate with all hosts (broadcast communication).

  • Page 5: Multicast Routing Configuration Task List

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 1.2 Multicast Routing Configuration Task List 1.2.1 Basic Multicast Configuration Task List  Starting up the multicast routing (mandatory)  Configuring TTL threshold (optional)  Canceling rapid multicast forwarding (optional)  Configuring static multicast route (optional) ...

  • Page 6: Basic Multicast Routing Configuration

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 2. Basic Multicast Routing Configuration 2.1 Starting up Multicast Routing To allow the router software to forward the multicast message, you must start up the multicast routing. Run the following command in global configuration m ode to start up the multicast message forwarding:...

  • Page 7: Configuring Static Multicast Route

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Command Purpose Enables the rapid multicast forwarding function on a port. ip multicast mroute-cache Example The following example shows how the administrator cancels the rapid multicast forwarding function on a port: interface ethernet 1/0 no ip mroute-cache 2.5 Configuring Static Multicast Route...

  • Page 8: Configuring Ip Multicast Rate Control

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Command Purpose Configures the multicast boundary for the port. ip multicast boundary access-list Example The following example shows how to configure the management boundary for a port: interface ethernet 0/0 ip multicast boundary acl ip access-list standard acl permit 192.168.20.97 255.255.255.0...

  • Page 9: Configuring Stub Multicast Route

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Configures the command ip multicast helper to convert the ip multicast helper-map group-address broadcast-address access- multicast message to the broadcast message. list Configures the port number allowing to forward the message. ip forward-protocol [port] Example The following example shows how to configure the command ip multicast helper.

  • Page 10: Monitoring And Maintaining Multicast Route

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Example The configuration of router A and B is shown as follows: Stub Router A Configuration ip multicast-routing ip pim-dm ip igmp helper-address 10.0.0.2 Central Router B Configuration ip multicast-routing ip pim-dm ip pim-dm neighbor-filter stubfilter ip access-list stubfilter deny 10.0.0.1...

  • Page 11: Igmp Configuration

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 3. IGMP Configuration 3.1 Overview a. IGMP Internet Group Management Protocol (IGMP) is a protocol used to manage multicast group members. IGMP is an asymmetric protocol, containing the host side and the switch side. At the host side, the IGMP protocol regulates how the host, the multicast group member, reports the multicast group it belongs to and how the host responds to the query message from the switch.

  • Page 12: Configuring Maximum Igmp Response Time

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Run the following command in interface configuration mode to modify the IGMP query interval on a port: Command Purpose Modifies the IGMP query interval on the current interface (unit: ip igmp query-interval time second). 3.2.3 Configuring IGMP Querier Interval As to version 2 and version 3 of the IGMP-Router protocol, if another switch that runs the IGMP-Router protocol exists in the same network, you need to choose a querier.

  • Page 13: Configuring Igmp Query Interval For The Last Group Member

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Command Purpose Configures the IGMP query interval of the last group member ip igmp last-member-query-interval time (unit: ms). The previous command is useless for IGMP-RouterV1. 3.2.6 Configuring IGMP Query Interval for the Last Group Member Besides the functions regulated by the IGMP-Router protocol, BODCOM's switches support the static multicast group configuration on the port.

  • Page 14: Igmp Characteristic Configuration Example

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 3.3 IGMP Characteristic Configuration Example All configurations about the IGMP characteristics are performed in VLAN port. Example for changing the IGMP version The IGMP-Router protocol of latter version is compatible with the IGMP host of low version, but cannot be compatible with the IGMP- Router protocol of the earlier version.
  • Page 15 S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION The previous configuration command configures the static multicast group 224.1.1.7 on the interface ethernet 0/0, and defines source- filter of the multicast group as 192.168.20.168. That is, the interface belongs to the multicast group 224.1.1.7, but it only receives the IP multicast messages from 192.168.20.168.

  • Page 16: Basic Multicast Routing Configuration

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 4. Basic Multicast Routing Configuration 4.1 PIM-DM Introduction Protocol Independent Multicast Dense Mode (PIM-DM) is a multicast routing protocol in dense mode. By default, when the multicast source starts to send the multicast data, all network nodes in the domain receive the data. Therefore, PIM-DM forwards the multicast packets in broadcast-pruning mode.

  • Page 17: Configuring State-Refresh

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 4.2.2 Configuring State-Refresh The state-refresh control information of the PIM-DM is forwarded in management mode by default. The configuration commands in interface configuration mode are effective only to the configurations at the upstream ports when the first-hop switch directly connecting the source sends the state-refresh message periodically.

  • Page 18: Pim-Dm State-Refresh Configuration Example

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 4.3 PIM-DM State-Refresh Configuration Example Refer to section 4.2.2 "Configuring State-Refresh". 5. Configuring PIM-SM 5.1 PIM-SM Introduction Protocol Independent Multicast Spare Mode (PIM-SM) is a multicast routing protocol in sparse mode. In the PIM-SM domain, the switches that run PIM-SM periodically send the Hello information to achieve the following purposes: ·...

  • Page 19: Configuring Pim-Sm

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 5.2 Configuring PIM-SM Starting up PIM-SM 5.2.1 Run the following command to run PIM-SM on the interface to activate the multicast function in sparse mode: Command Purpose Enters the interface where PIM-SM needs to be run and activates...

  • Page 20: Displaying Pim-Sm Multicast Route

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION 5.2.5 Displaying PIM-SM Multicast Route Run the following command to check the multicast route information learned by PIM-SM: Command Purpose show ip mroute pim-sm [group-address] [source-address] [type Displays the PIM-SM multicast route information. number] [summary] [count] [active kbps\] 5.2.6 Clearing Multicast Routes Learned by PIM-SM...

  • Page 21: Bsr Configuration Example (The Switch Is Configured On The Vlan Port)

    S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION Device B: ip multicast-routing interface EthernetO/1 ip address 192.168.200.144 255.255.255.0 ip pim-sm ip pim-sm dr-priority 200 interface SerialO/0 ip address 192.168.21.144 255.255.255.0 ip pim-sm 5.3.2 BSR Configuration Example (The switch is configured on the VLAN port) The following example shows the BSR configuration of two switches.
  • Page 22 S5900-24S4T2Q SWITCH MULTICAST CONFIGURATION ip address 192.168.200.144 255.255.255.0 ip pim-sm interface SerialO/0 ip address 192.168.21.144 255.255.255.0 ip pim-sm ip pim-sm bsr-candidate LoopbackO 30 www.fs.com...
