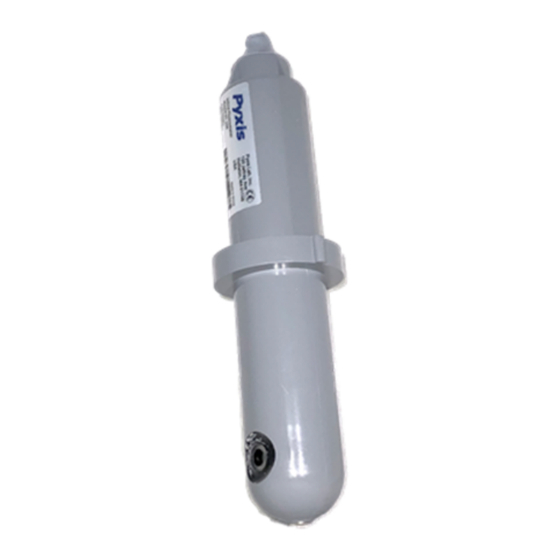

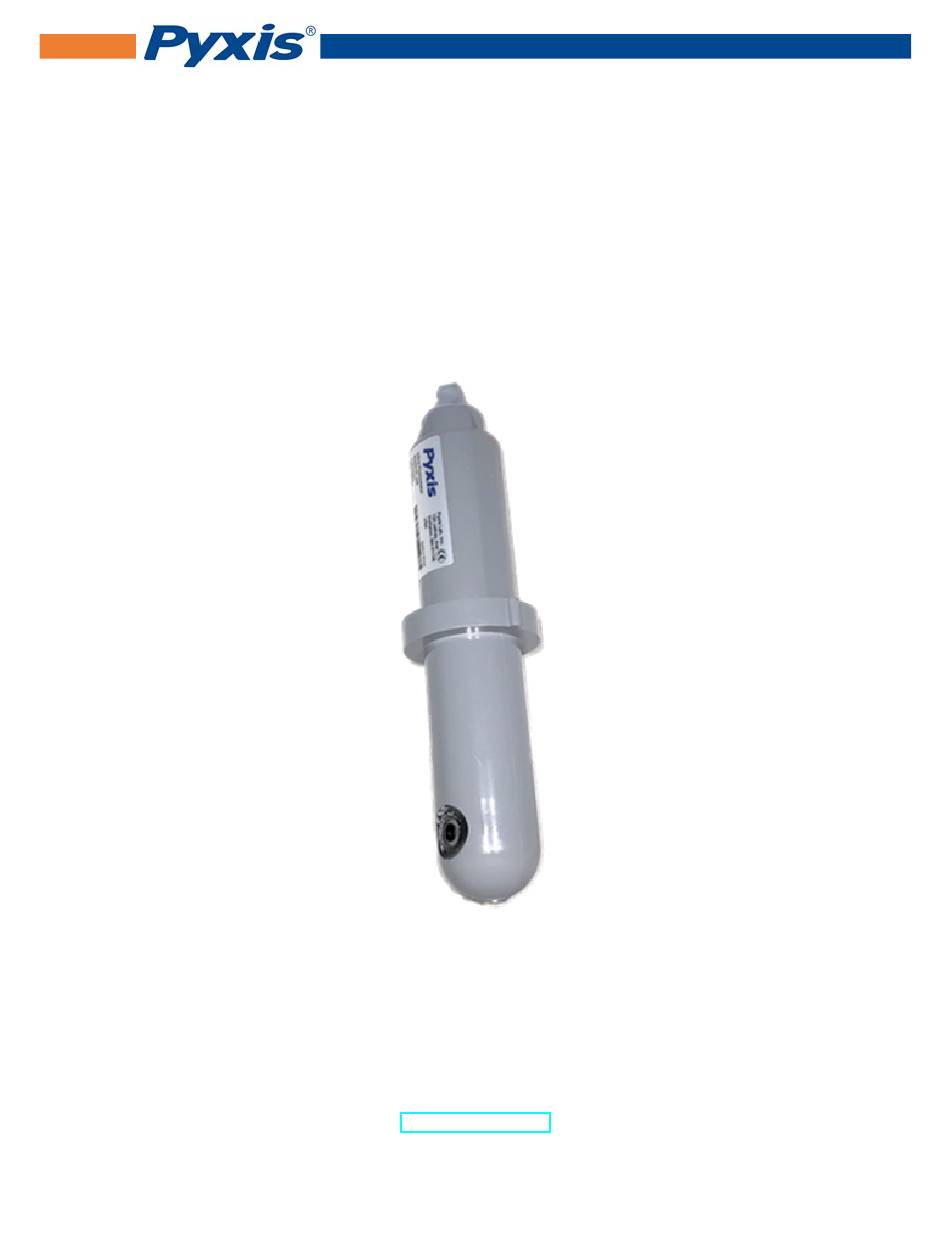

- Page 1 HM-500 Series Inline Oil in Water Fluorometer Probes User Manual April 16, 2020 Rev. 4.42 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 2: Table Of Contents
8 Sensor Maintenance and Precaution 8.1 Methods to Cleaning the HM-500 Series Probe ..... . . 8.2 Storage .......... - Page 3 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
-
Page 4: Introduction
“may” agree with each other in a relative sense, but this is not always a guarantee. The HM-500 Series is designed to be calibrated to agree with the oil-in- water concentration from a given oil type determined by commonly used methods. The calibration of the HM-500 Series probe should be initially done by the user with an actual prepared oil-in-water standard, within the detection range of the sensor itself. -
Page 5: Main Features
Up to 100 (0.7) Enclosure Rating IP67 Regulation With Pyxis’s continuous improvement policy, these specifications are subject to change without notice. The oil-in-water concentration range is based on a marine diesel oil standard. HM-500 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 6: Unpacking Instrument
Net Weight 510 10 g Pyxis OIW-500 is a synthetic standard which will read 500 ppm by a factory calibrated HM-510 probe. This product must be diluted for use with HM-500 and HM-520 inline probes to measure within their range. Once the HM-500 Series probe is calibrated to a known oil-in-water standard, you may use the equivalent value of the prepared oil- in-water secondary standard for future sensor calibrations. -
Page 7: Optional Accessories
3.2 Optional Accessories The following optional accessories can be purchased via your Regional Sales contact or Pyxis Customer Service at order@pyxis-lab.com. Figure 2. HM-500 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 8: Installation
4.1 Piping The provided ST-001 Tee Assembly can be connected to a pipe system through the 3/4” female ports, either socket or NPT threaded. To properly install the HM-500 Series probe into the ST-001 Tee Assembly, follow the steps below: 1. -
Page 9: Wiring
4.3 Connecting via Bluetooth A Bluetooth adapter (P/N: MA-WB) can be used to connect a HM-500 Series probe to a smart phone with the uPyxis® Mobile App or a computer with the uPyxis® Desktop App. The power should be sourced from a 24 VDC power terminal of a controller. -
Page 10: Connecting Via Usb
4.4 Connecting via USB A USB-RS485 adapter (P/N: MA-485) can be used to connect a HM-500 Series probe to a computer with the uPyxis® Desktop app. NOTE Using non-Pyxis USB-RS485 adapters may result in permanent damage of the HM- 500 Series probe communication hardware. -
Page 11: Download Upyxis® Mobile App
5.2 Connecting to uPyxis® Mobile App Turn on Bluetooth on your mobile phone (Do not pair the phone Bluetooth to the HM-500 Series probe). Open uPyxis® Mobile App. Once the app is open the app will start to search for the sensor. Once the uPyxis®... -
Page 12: Calibration Screen And Reading
For the first calibration, it is required to prepare an oil-in-water calibration solution using the desired oil with a concentration within the range of the HM-500 Series probe being used (i.e. HM-500 should be calibrated with a user-prepared, oil-in-water solution between 1 and 10 ppm). The user-prepared, oil-in- water calibration solution can be made by mixing a sample of the oil with DI water to develop a known ppm level. -
Page 13: Diagnosis Screen
Clean message will be shown (Figure 12). If the probe is partially fouled, a yel- low Becoming Dirty message will be shown. If the probe is severely fouled, a red Dirty message will be shown. In this case, follow the procedure in the Methods to Cleaning the HM-500 Series Probe section of this manual. -
Page 14: Device Info Screen
6 Setup and Calibration with uPyxis® Desktop App The HM-500 Series probe should be initially calibrated with a two-point (zero + slope) procedure using a deionized (DI) water sample (zero) and a prepared solution (slope) containing the actual oil-in-water de- sired. -
Page 15: Connecting To Upyxis® Desktop App
Desktop App will default to the Information screen. On the Information screen you can set the information description for Device Name and Product Name, then click to save. Figure 15. HM-500 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 16: Calibration Screen
For the first calibration, it is required to prepare an oil-in-water calibration solution using the desired oil with a concentration within the range of the HM-500 Series probe being used (i.e. HM-500 should be calibrated with a user-prepared, oil-in-water solution between 1 and 10 ppm). The user-prepared, oil-in- water calibration solution can be made by mixing a sample of the oil with DI water to develop a known ppm level. -
Page 17: Diagnosis Screen
Clean message will be shown (Figure 19). If the probe is partially fouled, a yellow Becoming Dirty message will be shown. If the probe is severely fouled, a red Dirty message will be shown. In this case, follow the procedure in the Methods to Cleaning the HM-500 Series Probe section of this manual. -
Page 18: Communication Using Modbus Rtu
Figure 19. 7 Communication using Modbus RTU The HM-500 Series is configured as a Modbus slave device. In addition to the ppm oil-in-water value, many operational parameters including warning and error messages are available via a Modbus RTU connection. Contact Pyxis Lab Technical Service (service@pyxis-lab.com) for more information. -
Page 19: Sensor Maintenance And Precaution
To clean the HM-500 Series probe, soak the lower half of the probe in 100 mL of the prepared cleaning solution for 10 minutes and gently scrub the quartz optical sensor channel. Rinse the HM-500 Series probe with distilled water and then check for the flashing blue light inside the HM-500 Series probe quartz tube. -
Page 20: Storage
Series probe from direct sunlight and precipitation. 9 Troubleshooting If the HM-500 Series probe output signal is not stable and fluctuates significantly, make an additional ground connection—connect the clear (shield, earth ground) wire to a conductor that contacts the sample water electrically such as a metal pipe adjacent to the HM-500 Series tee.
