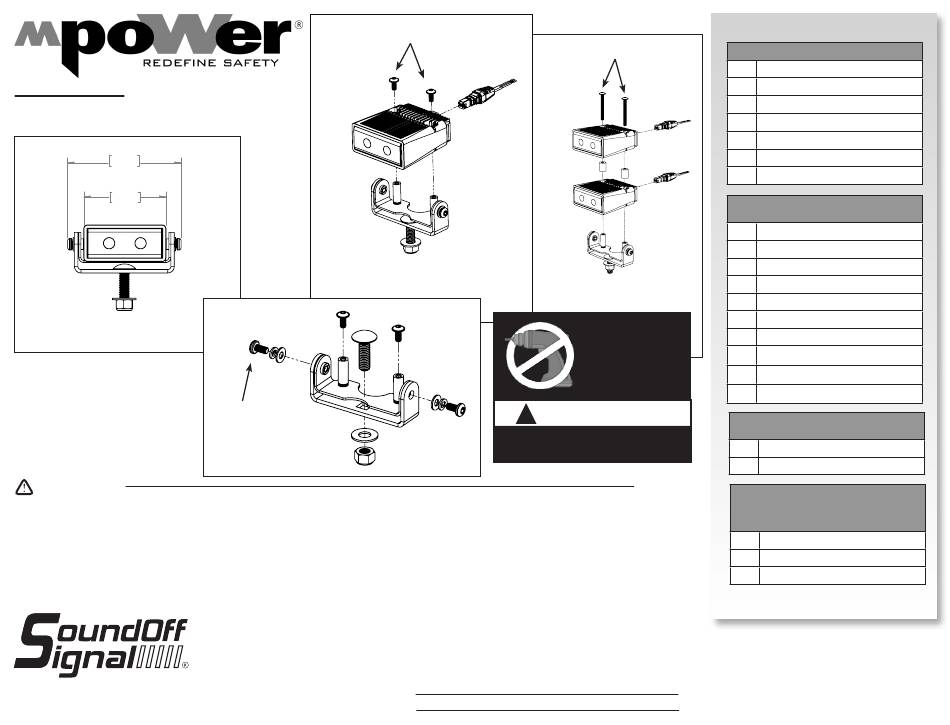

Soundoff Signal MPower EMPR10004-WW Instructions

ORV LIGHT KIT
EMPR10004-WW - 2x1
EMPR20013-W - 6x1
91.6mm
3.61"
TIGHTEN
1/8 TURN PAST
66.3mm
FULL COMPRESSION
2.61"
OF WASHER
EMPR10004-WW (2x1) SHOWN
8 7
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to supply at least 125%
of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
TIGHTEN
1/8 TURN PAST
MAX. TORQUE: 12 IN-LBS.
FULL COMPRESSION
OF WASHER
42.9mm
EMPR10004-WW (2x1) SHOWN
91.6
3.61
66.3
2.61
6
TIGHTEN 1/8 TURN PAST
FULL COMPRESSION OF
WASHER (FOR BOTH
LEFT AND RIGHT SIDES)
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
39.2mm
1.54"
24.2mm
1.69" 0.95"
SHOWN WITH DUAL STACKED
MOUNT APPLICATION
39.2
1.54
42.9
1.69
5 4
WARNING
!
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
91.6
3.61
NOTICE:
66.3
Improper use or installation may void warranty coverage.
2.61
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
MAX
EMPR10004-WW INTRODUCTION:
TORQUE: 12 IN-LBS.
MAX. TORQUE: 12 IN-LBS.
QTY
2
2
2
1
1
1
BRACKET KIT CONTAINS
QTY
1
1
1
2
2
MATERIAL:
1
DO NOT USE POWER
TOOLS TO TIGHTEN 2
DESCRIPTION:
24.2
1
DRAWING NO:
High-power-assembly
0.95
2
3
HARNESS KIT CONTAINS
QTY
1
FOR DUAL STACKED MOUNT
QTY
2
2
CONTAINS
COMPONENT
D
mpower ORV 2x1 Light
®
PMPR1BK001 - Bracket Kit
PMPR1HN001 - Harness Kit
Registration Card
Installation Instruction sheet
2.6
3.6
C
Product Warning Card
PMPR1BK001*
COMPONENT
Cradle Bracket
1.5
U Bracket
B
1.7 2.5
5/16-18 Nylon Lock Nut
10-32, 3/8" PAN HD TORX, SS Screw
8-32, 3/8" FLNG BTN HD, SS Screw
5/16"-18 X 1" Long Carriage Bolt
#10 Flat Washer, 7/16 OD SS
A
5/16 USS Flat Washer SS 3/4" OD
REVISION:
#10 Split Lock Washer, SS
2 OF 2
2 1 SHEET
PMPR1HN001*
COMPONENT
3-Wire Harness, TE Connector, HP SP
PMPR1HW002**
HARDWARE KIT
CONTAINS
COMPONENT
8-32, 1 1/2" FLNG BTN HD, SS Screw
SPACER, 3/8 OD X 1/2" LONG
*included in purchase
**sold separately
39.2
1.54
42.9
1.69
HIGH POWER SPOT 0420
