Soundoff Signal intersector ENT2B3 Series Manual

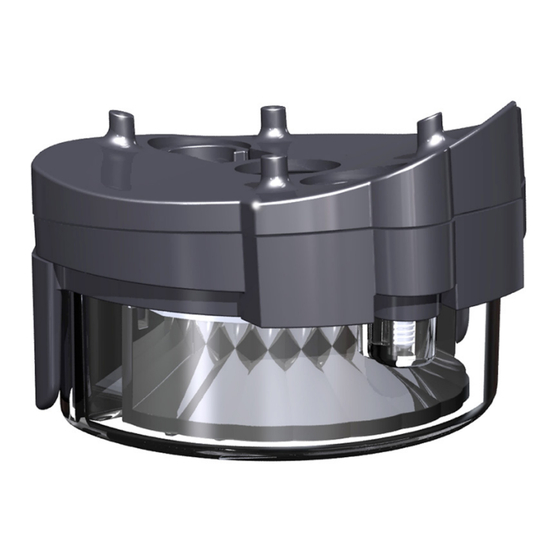

INTERSECTOR LED LIGHT
UNDER MIRROR MOUNT
ENT2B3(X) Single Light Kit – Single & Dual Color
ENT2B3(X)-EU Single Light Kit w/Xylex Lens –
Single & Dual Color
ENT2B3(XXX) Single Light Kit – Tri Color
ENT2B3(XXX)-EU Single Light Kit w/Xylex Lens –
Tri Color
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• Petroleum/silicone based lubricants will cause the silicone lens to discolor.
1.800.338.7337 / www.soundoffsignal.com
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
DIMENSIONS / TECHNICAL SPECIFICATIONS . . . . . . 2
UNDER MIRROR INSTALL . . . . . . . . . . . . . . . . . . . 3
ELECTRICAL INSTALLATION / INFORMATION . . . 4 - 7
WARRANTY INFORMATION . . . . . . . . . . . . . . . . . . 8
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
Scan for the latest version
of the instruction sheet
INTERSECTOR UNDER MIRROR MOUNT
ENGLISH 0000JL 0923 REV A
