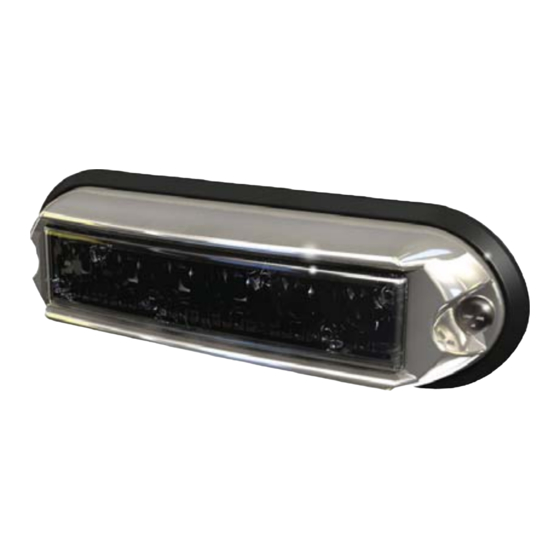

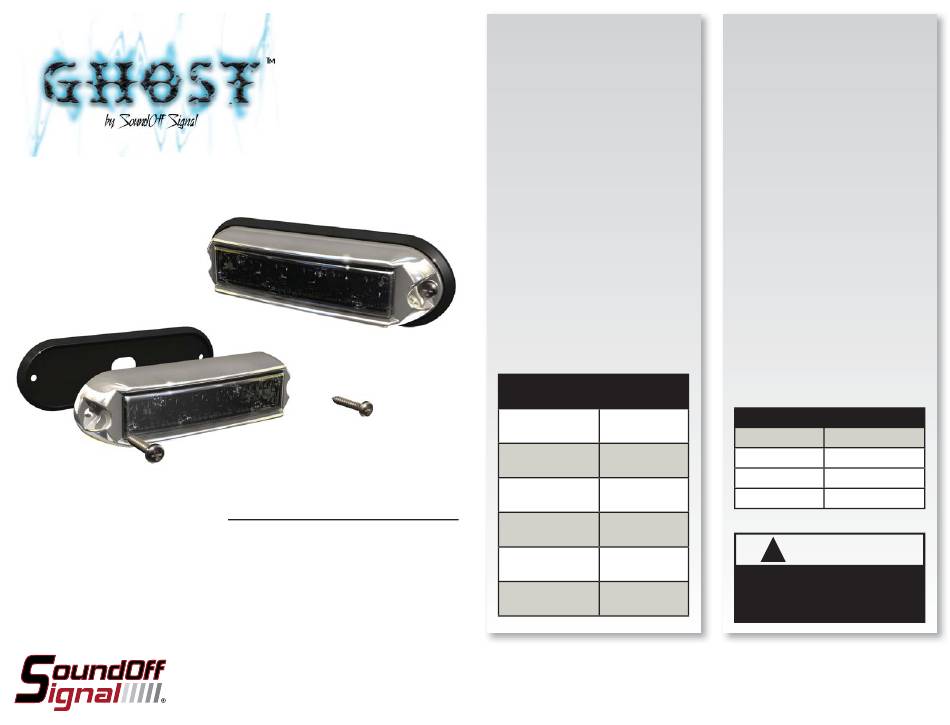

Soundoff Signal SINGLE GHOST EGHST2 Manual

SINGLE GHOST™ LED SURFACE
MOUNT WARNING LIGHT
EGHST2(x) - Black
EGHST2(x)C - Chrome
EGHST2(x)W - White
Important Information:
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
INSTALLATION:
Establish a position on the vehicle. Use
the gasket (provided) as a template
to
for mounting screws. Note: pilot holes
are 4-7/8" on center. Caution: Do not
stretch gasket as this may change
the required hole spacing.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the "Warranty & Returns"
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to techsupport@soundoffsignal.com.
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
½" wire hole and pilot holes
drill
TECHNICAL
SPECIFICATIONS
Overall 5.65"L x 1.06"H
Dimensions: x 1.8"D
Input Voltage 10-30Vdc
Range:
Current <1 amp
Consumption:
# of LEDs: 6 Generation 3
LEDs
Operating -40º to +65º C
Temperature:
# of Flash 33
Patterns
OPERATION:
WIRE CONNECTIONS
See setup procedure on second page.
The single GHOST™ comes equipped with
an internal fl asher with 33 user selectable
patterns that can be synchronized either
alternating or simultaneous with up to three
other lights. It can also be put into slave
mode and driven through an external fl asher.
1. Connect the GHOST™ BLACK wire to a
good, convenient ground.
2. Connect the GHOST™ RED wire to one
side of a user supplied on/off switch.
Connect the other side of the switch,
through a 5Amp fuse, to a source of
+10-30Vdc.
NOTE: The GHOST™ is a factory sealed
unit that CANNOT be serviced in the
fi eld. Any attempt to gain access to the
GHOST™ unit will most likely cause per-
manent damage and void its warranty.
WIRE HOOK-UP TABLE
WIRE COLOR: CONNECT TO:
RED +10-30Vdc
BLACK Ground (-)
WHITE Pattern Select
!
WARNING
This product contains high
intensity LED devices. To prevent
eye damage, DO NOT stare into
light beam at close range.
EGHST2(xx) 7.09
