Panel Descriptions

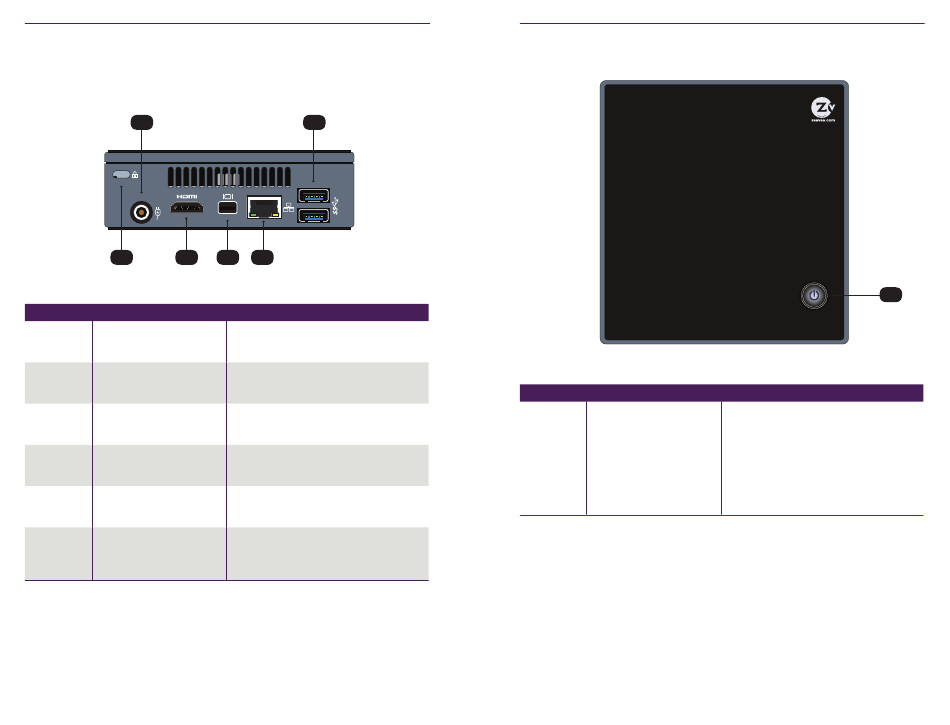

Rear View

2
1 3
ZyPerMP
ZyPer Management Platform
ID Name
1 Security port
2 Power receptacle
3 HDMI
4 Mini DisplayPort
Intelligent IP Distribution
5 Ethernet port
6 USB port
Getting Started
6
4 5
Description
This port accepts a standard computer
laptop locking connector.
Connect the included power supply to this
power receptacle.
Connect an HDMI cable from this port
on the Management Platform to an HD
display. (optional)
Connect a Mini DisplayPort cable from this
port to a DisplayPort interface (optional).
Connect an Ethernet cable from this port to
Power On/Off
a switch on the Local Area Network.
Connect up to two USB 2.0 devices, such
as a keyboard and mouse, to these USB
ports.
2

Top View

ZyPerMP
ZyPer Management Platform
Intelligent IP Distribution
ID Name
7 Power On/Off
Getting Started
7
Power On/Off
Description
Press this button to manually power-off
the Management Platform. When the
Management Platform is connected to a
power source, it will automatically power-
on. In addition, if power is lost or the
power is disconnected, the Management
Platform will automatically power-on when
power is restored.
