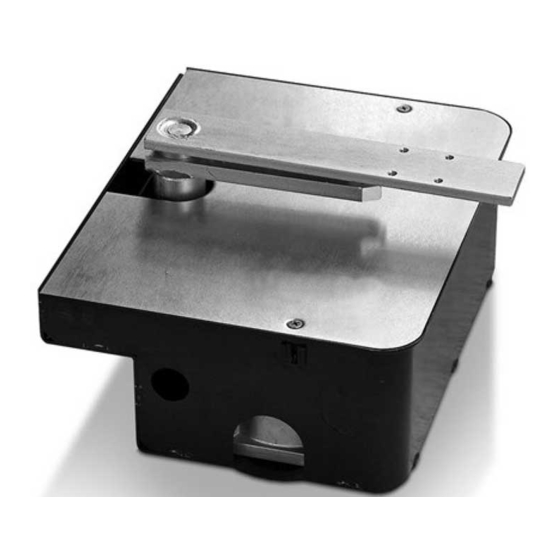

Ditec CUBIC6C-CUBIC6CG
Manuale di installazione cassa di fondazione per CUBIC6
Installation manual for foundation box for CUBIC6
Manuel d'installation de la caisse de fondation pour CUBIC6
Wartungshandbuch für das Fundament-kasten für CUBIC6
Manual de instalación de la caja de cimentacion por CUBIC6
Manual de instalação de caixa de fundação para CUBIC6
ATTENZIONE:
Giunzione cavo ESTERNA
alla cassa di fondazione
ATTENTION:
Cable junction OUTSIDE
foundation box
*
*
ATTENZIONE!
LA MANCATA OSSERVANZA DELLE REGOLE CAUSERÀ L'INVALIDAZIONE DELLA GARANZIA.
*
ATTENTION!
NON-COMPLIANCE WITH THE RULES WILL MAKE THE WARRANTY VOID.
422
502
www.entrematic.com
65
Ø35
Ø35
R32,5
342
80
Ø35
Ø35
R32,5
390
ATTENZIONE:
Collegare lo scarico per il drenaggio
ATTENTION:
Connect draining to the foundation box
min 65*
min 80**
IP1816
CUBIC6C*
CUBIC6CG**
*
Advertisement
Table of Contents
Related Manuals for Entrematic Ditec CUBIC6C
Summary of Contents for Entrematic Ditec CUBIC6C
- Page 1 Ditec CUBIC6C-CUBIC6CG IP1816 Manuale di installazione cassa di fondazione per CUBIC6 Installation manual for foundation box for CUBIC6 Manuel d’installation de la caisse de fondation pour CUBIC6 Wartungshandbuch für das Fundament-kasten für CUBIC6 Manual de instalación de la caja de cimentacion por CUBIC6 Manual de instalação de caixa de fundação para CUBIC6...
- Page 2 Periodicamente pulire l’interno delle casse e verificare che lo scarico sia libero. Insufficient draining may damage the motor and make the warranty void. Clean periodically the inside of the cases and check that drain is not clogged. Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.entrematic.com...
