Routing ANA In and AES In to MADI Out (for recording)

1) Press the OUTPUT button, repeatedly if necessary, until the MADI Output LED is lit. Then hold down the OUTPUT
button.
2) While holding down the OUTPUT button, press the INPUT button, repeatedly if necessary, until the ANA Input LED
and the AES input LED are both lit.
3) Release the buttons. ANA In and AES In are now routed to MADI Out.
The Alpha-Link needs up to 20 seconds to store new settings. Powering it off too quickly after selecting new settings
would cause them to be lost. This does not apply to Diagnostics mode settings, which are stored instantly when
leaving Diagnostics mode by pressing the SAMPLE RATE and CLOCK buttons.

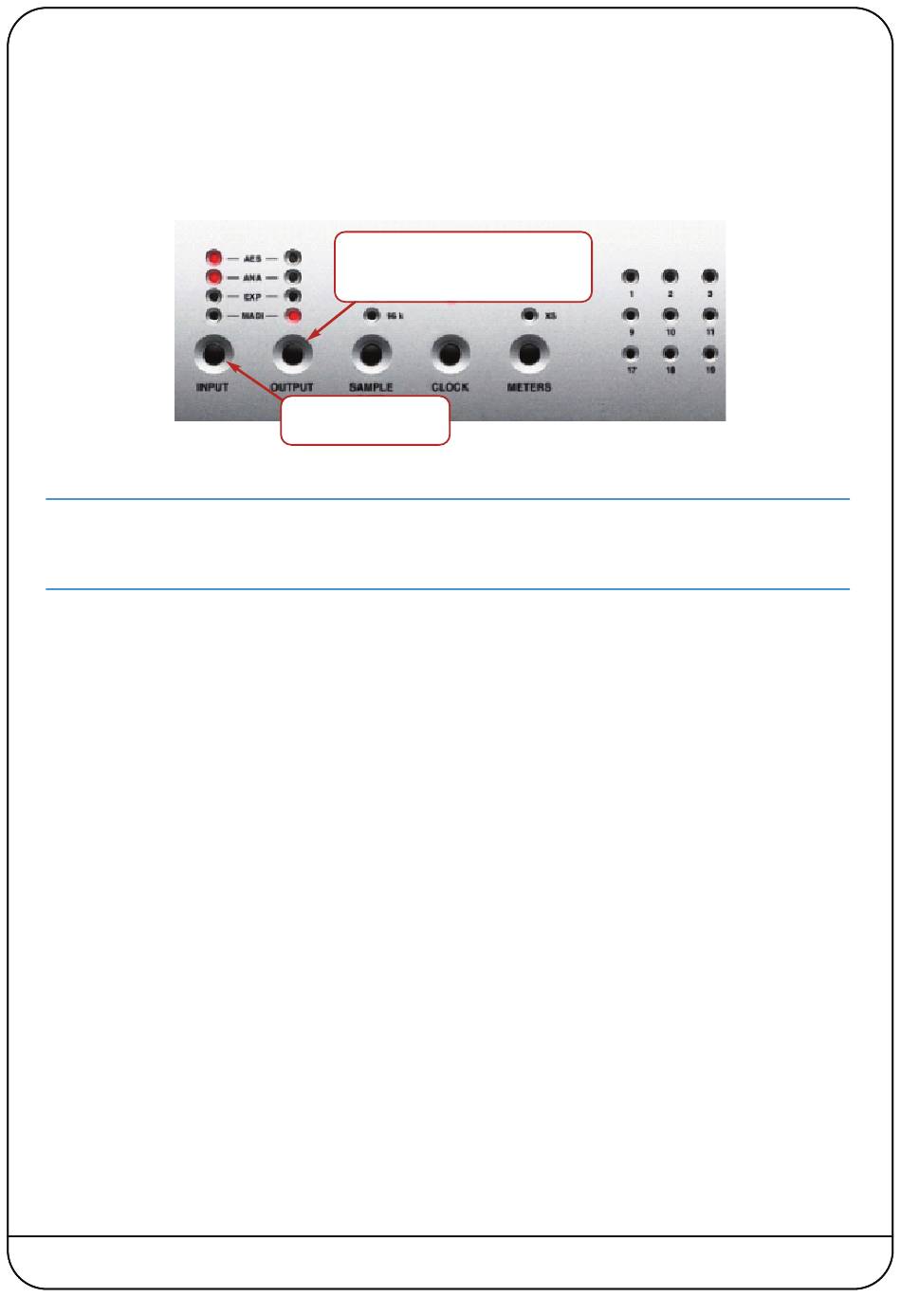

P P R R E E S S S S F F I I R R S S T T to select the MADI
output, then H H O O L L D D D D O O W W N N while
selecting the AES and ANA inputs
Press to select the
AES and ANA inputs
