Selecting MADI as the EXT clock source

We have decided that the MadiXtreme will be used as clock master, with the Alpha-Link being synchronized to the
embedded MADI clock signal from the MadiXtreme. By default, the external clock source selection (active when the EXT
LED is lit on the front panel) is set to WordClock. We must change this to MADI.

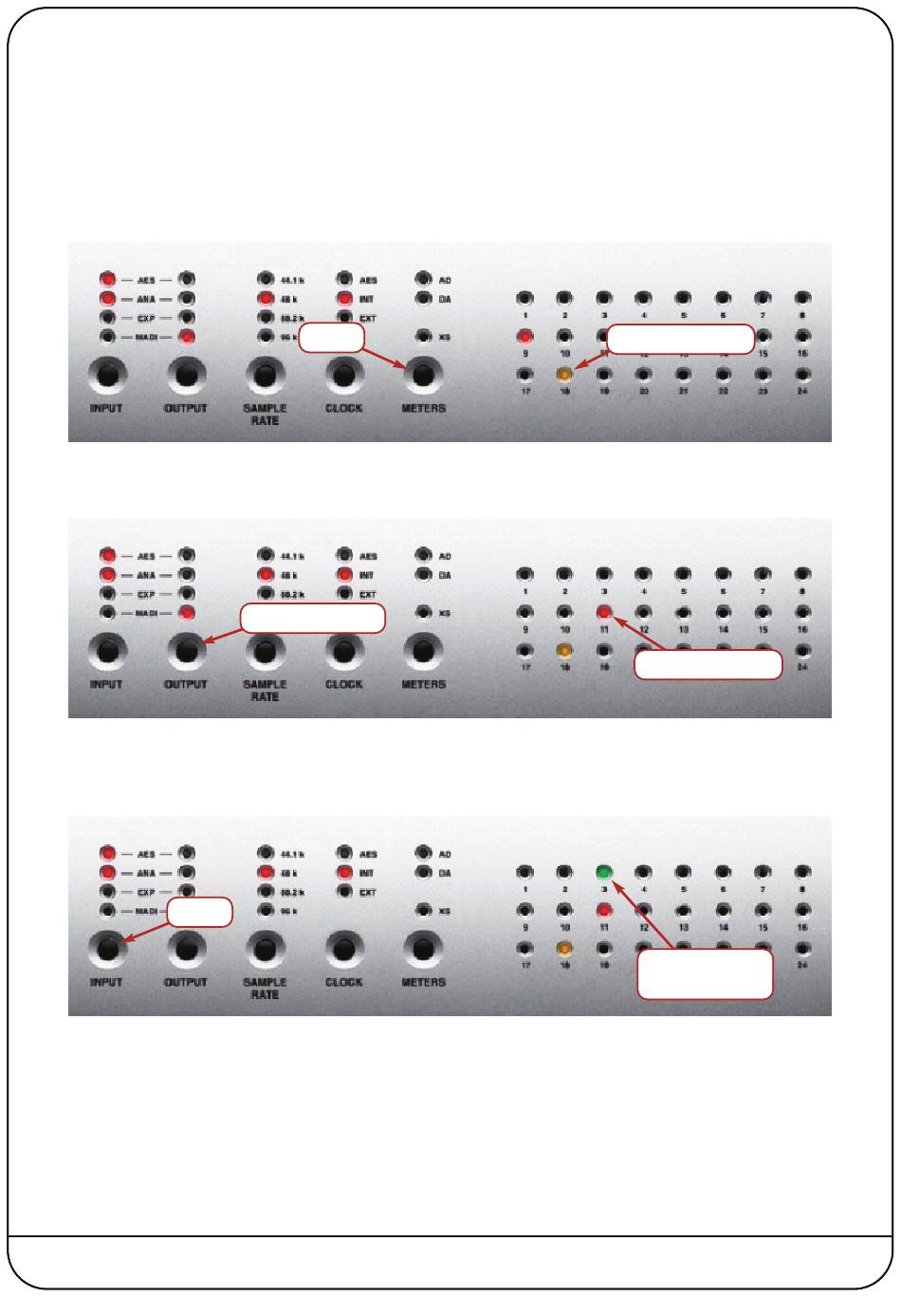

With the Alpha-Link still in Diagnostics mode, follow the steps below:
1) The External Clock Source Selection is Option 3 of Page 2. Therefore, press the METERS button to select page 2
(indicated by LED 18 being lit in the Metering section, instead of LED 17).
2) Press the OUTPUT button repeatedly to select Option 3 (indicated by LED 11 being lit in the Metering section).
3) Press the INPUT button to change the external clock source selection from WordClock (default) to MADI (LED 3 will
be turned ON).
Press
Press
Press repeatedly
Page 6
Page 2 selected
Option 3 selected
Option 3 status
changed
