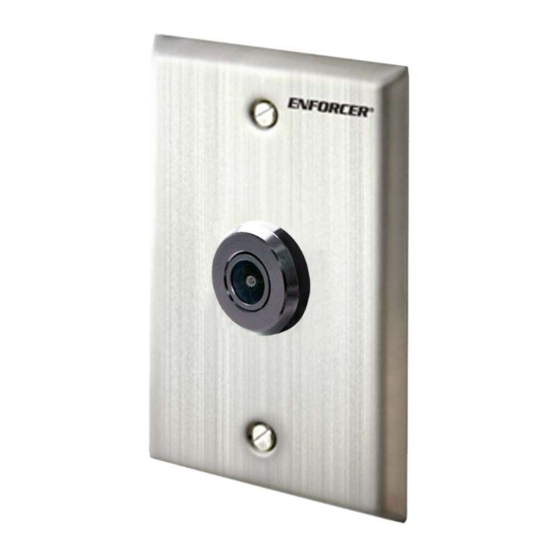

ENFORCER EV-Y5105-N2SQ Manual

4-in-1 hd tvi, cvi, ahd, analog wall-plate camera

Table of Contents

Download this manual

4-in-1 HD TVI, CVI, AHD, Analog

Features:

 Select between multiple formats:

TVI, CVI, AHD, and Analog



" 2MP Sony STARVIS CMOS

2.8

 2.9mm Wide angle lens

 Weatherproof IP67 construction

 Vandal-resistant design

EV-Y5105-N2SQ

Wall-Plate Camera

Manual

 Adjustable mounting angle

 Includes: 1 camera, 1 single-gang plate,

1 slimline plate, and angled mounting rings

 2DNR (2D Digital Noise Reduction)

 D-WDR (Digital Wide Dynamic Range)

 12VDC Operating voltage

Table of Contents

Do you have a question about the EV-Y5105-N2SQ and is the answer not in the manual?

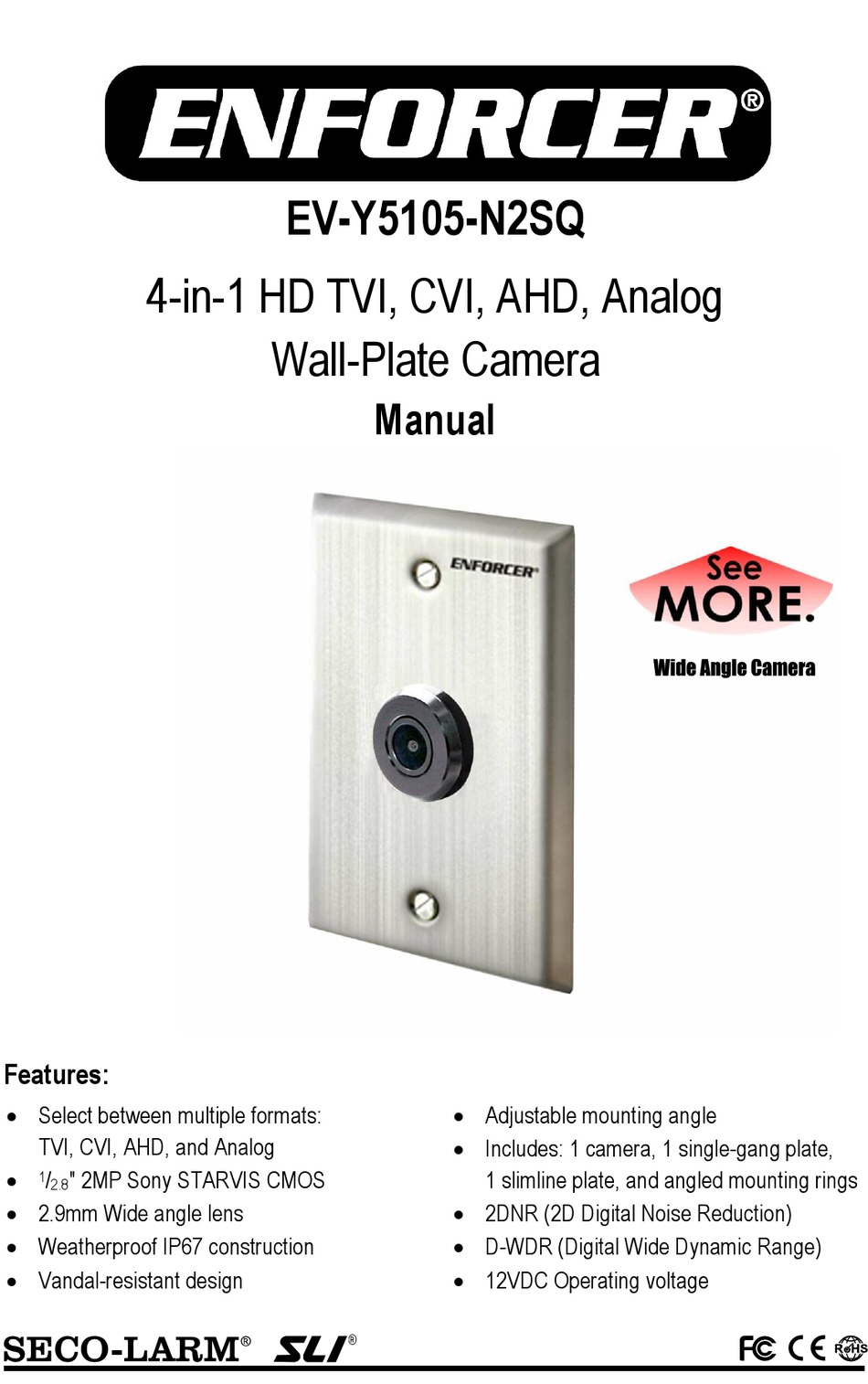

Page 1 EV-Y5105-N2SQ 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera Manual Features:  Select between multiple formats:  Adjustable mounting angle TVI, CVI, AHD, and Analog  Includes: 1 camera, 1 single-gang plate,  1 slimline plate, and angled mounting rings "...
Page 2: Specifications
ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera Specifications: Type Wall-plate camera Formats TVI (Default) / CVI / AHD / Analog Plate type 1 Single-gang, 1 slimline CMOS " 2MP Sony STARVIS CMOS Resolution 1080p 2DNR D-WDR OSD (On-Screen Display)
Page 3: Mounting Options
ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera Before Starting: 1. Read this manual carefully and keep it for future 4. Do not mount the camera in areas exposed to reference. radiation, strong magnetic fields, or strong 2. Use the camera within given temperature and electrical signals.
Page 4: Troubleshooting
ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera Switching between HD Analog Outputs: To set format via the OSD controller, press the Direction Format Setting controller in the direction of the desired setting, Down hold for 5 seconds, and release when the...
