4-in-1 HD TVI, CVI, AHD, Analog

Features:

• Select between multiple formats:

TVI, CVI, AHD, and Analog

• Joystick OSD control

• 1080p Resolution

" 2MP Sony CMOS

•

2.9

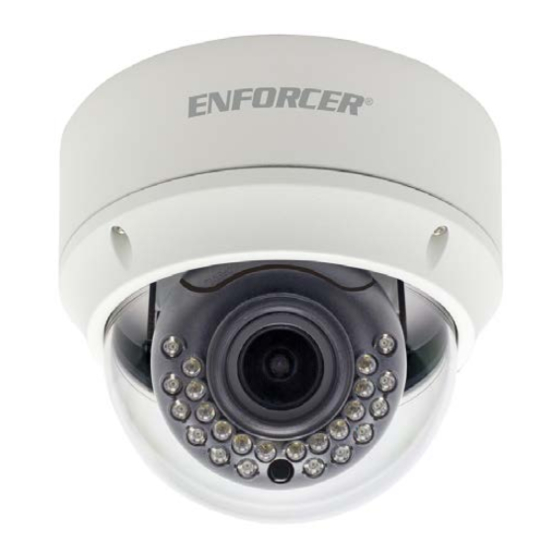

EV-Y2201-AMWAQ

Vandal Dome Camera

Manual

• Two-axis gimbal rotation

• 24 IR LEDs

• 2.8~12mm Lens

• Rugged, weatherproof (IP65) construction

• Supports UTC programming

Table of Contents

Do you have a question about the EV-Y2201-AMWAQ and is the answer not in the manual?

Page 1 EV-Y2201-AMWAQ 4-in-1 HD TVI, CVI, AHD, Analog Vandal Dome Camera Manual Features: • Select between multiple formats: • Two-axis gimbal rotation TVI, CVI, AHD, and Analog • 24 IR LEDs • Joystick OSD control • 2.8~12mm Lens • 1080p Resolution •...
Page 2: Specifications
ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Vandal Dome Camera Specifications: Type Vandal Dome Camera Formats TVI (Default) / CVI / AHD / Analog " 2MP Sony CMOS CMOS Resolution (HD) 1920x1080 TV Lines (Analog) 1200TVL 2D-NR 3D-NR DWDR OSD (On-Screen Display) Cable OSD control 1.0Vp-p Complex video output...
Page 3 ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Vandal Dome Camera Overview: Retaining wire Mounting base Mounting plate Female BNC Cover screw connector DC Plug with Dome cover terminal block OSD Controller DC jack Zoom/Focus compartment Wiring notch Important: Do not cut any wires as the warranty will be voided.
Page 4: Troubleshooting
ENFORCER 4-in-1 HD TVI, CVI, AHD, Analog Vandal Dome Camera Troubleshooting: • Check that the camera is powered up • Check that the power supply’s polarity is correct The screen is black • Check that the monitor is powered up •...
