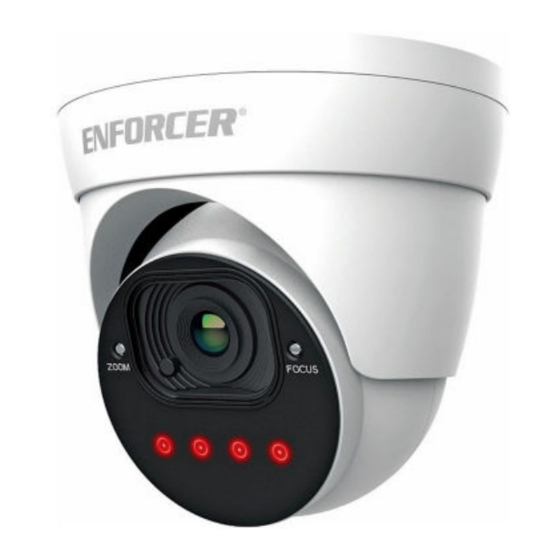

4-in-1 HD Turret
Cameras with WDR
Installation Manual
Model
EV-Y2501-A2WWQ
EV-Y2501-AMWWQ
• True Day/Night with ICR Module
• True WDR (Digital Wide Dynamic Range)
• 3D Digital Noise Reduction (3DNR)
• TVI, CVI, AHD, CVBS (Analog)
• Rugged, weatherproof (IP66) construction
• Heavy-duty vandal-resistant design
• Cables concealed in bracket to prevent tampering
For the full On-Screen Display manual,
download from the camera's product
page on www.seco-larm.com.
Lens
Resolution
2.8mm
5MP
2.8mm~12mm
EV-Y2501-AMWWQ shown
Voltage
Style
12VDC
Turret
Color
White
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EV-Y2501-A2WWQ
Summary of Contents for ENFORCER EV-Y2501-A2WWQ
- Page 1 4-in-1 HD Turret Cameras with WDR Installation Manual EV-Y2501-AMWWQ shown Model Lens Resolution Voltage Style Color EV-Y2501-A2WWQ 2.8mm 12VDC Turret White EV-Y2501-AMWWQ 2.8mm~12mm • True Day/Night with ICR Module • True WDR (Digital Wide Dynamic Range) • 3D Digital Noise Reduction (3DNR) •...
- Page 2 Parts List 1x Turret camera 3x Mounting Screws 1x Manual 1x Mounting template 1x DC Plug Specifications Model EV-Y2501-A2WWQ EV-Y2501-AMWWQ Housing color White Type Fixed Turret Camera Varifocal Turret Camera Formats TVI (Default) / CVI / AHD / Analog (CVBS) CMOS "...
- Page 3 Camera ball Case Screws Base OSD DIP Switch EV-Y2501-A2WWQ shown Female BNC connector DC Jack IMPORTANT NOTES • Do not cut DC jack or BNC connector jack as warranty will be voided. • Do not open camera case, no serviceable parts.
- Page 4 4-in-1 HD Turret Cameras with WDR Installation (Continued) 5. Put the case over the camera ball and onto the base 6. Holding the case loosely on the base, turn the camera ball to the desired direction. Use a small screwdriver to adjust the zoom and focus of the camera ball if needed, via the holes marked "ZOOM"...
