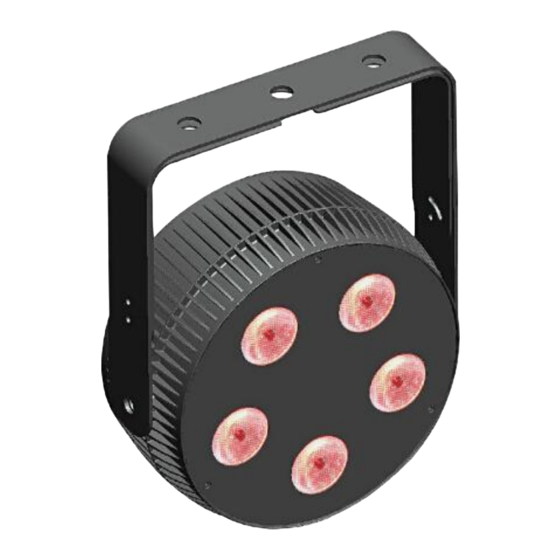

- Page 1 RGBWA+UV IR Slimpar Series User manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions....................3-4 2. Technical Specifications...................5 3. How To Control The Unit................... 6-8 4. shape.......................... 9 5. Trouble shooting......................10 6. Fixture Cleaning.......................11 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,... -
Page 3: Safety Instructions
1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. - Page 4 DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. DO NOT open the unit within five minutes after switching off. ...
-
Page 5: Technical Specifications
2. Technical Specifications Light Sources: 5/7/12 Leds*6in1 8W Beam Angle:25° Power Voltage: AC 100-240V, 50/60Hz Dimension: 225*70*220mm Net Weight: 1.5 Kgs Gross Weight:1.8Kgs Control DMX Channel: 10 Channel Control Modes: DMX512,Master-Slave/Music mode/Auto Run IR remote control Construction Display: Digital Display Data In/Out socket: 3-pin XLR sockets Power Socket: IEC power in/out socket Protection Rating: IP20... -
Page 6: How To Control The Unit
3. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal Display: MENU To select the programming functions... - Page 7 Display Menu Function → → → Addr A001~A512 DMX mode AUT1 SP-1~SP-9 St00~St99 FADE AUTO Color Jump AUT2 SP-1~SP-9 St00~St99 changing COLO CO01~CO51 St00~St99 51 colors r000~r255 St00~St99 Gree G000~G255 St00~St99 0-255 to adjust the blue b000~b255 St00~St99 brightness of colors STAT including strobe whit...
- Page 8 DMX channel´s functions and values (10 DMX channels): Mode/ Value Function Channel Full Dimmer : 0-255 Intensity 0 to 100% Red dimmer 0-255 Intensity 0 to 100% Green dimmer : 0-255 Intensity 0 to 100% Blue dimmer 0-255 Intensity 0 to 100% White dimmer 0-255 Intensity 0 to 100%...
-
Page 9: Shape
4. IR Remote controller Operation Auto 1.Key “ ” is Auto Run mode. It is also the switch for AUT1 and AUT2 mode. Press”+”,”-“to set its run speed. Sound 2.Key “ ” is Sound mode. It is also the switch for”SOUND1” and “SOUND2” mode. -
Page 10: Trouble Shooting
5. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 11: Fixture Cleaning
6. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. ...
