Summary of Contents for Vortex Impact 850
- Page 1 ...

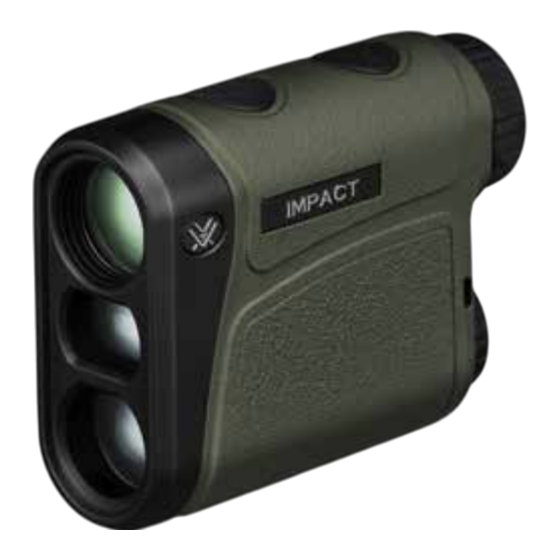

- Page 2 ® Laser Rangef inder ® The Impact 850 Laser Rangefinder ® The Impact 850 is an extremely effective angle- compensated laser rangefinder for archers and rifle shooters. Using the primary HCD (Horizontal Component Distance) mode, it provides key angle compensated range information required by the vast Impact ®...
- Page 3 Focus with cover. Power Up Eyecup Once you install the battery, the Impact 850 is in Ready Condition—the normal power-off condition when not ranging. To power up the Impact 850 from Ready Condition and prepare for ranging, press and release the Measure button. The HCD or LOS ranging screen will display.
- Page 4 ® Laser Rangef inder electiOn et and electiOns Your Impact is factory set to the angle compensating HCD mode and yards. 1. Choose between the HCD and LOS Modes. To change modes, after the Impact is After activating the Mode Selection, press the Measure Mode Selection powered up activate the Mode Selection button to toggle between the HCD and LOS displays.
- Page 5 ® Laser Rangef inder anging With the Impact 850 powered up, position the crosshair on 2. Choose between Yards and Meters Display. the target object and press and release the Measure button Press the Measure button to toggle between the Yards and to get the distance measurement.
- Page 6 • Rifle shooting out to ranges of 800 yards with mild slopes Hcd M (less than 15 degrees). The Impact 850’s HCD range display is intended to be the primary mode—used for most rifle and archery shooting • Rifle shooting out to ranges of 400 yards with moderate conditions.
- Page 7 LOS Mode – Using the INC Number When in LOS mode, an additional number is displayed below The Impact 850’s LOS (Line of Sight) mode is intended for the yardage number. This number is slope shown in degrees. rifle shooters who are using slope correcting ballistic drop...
-
Page 8: S Can F Eature
® Laser Rangef inder eature anyard The Scan feature can be used to range moving targets or The lanyard provides a secure way to carry your rangefinder. help range smaller targets on uniform backgrounds in either HCD or LOS modes. Once powered up, press and hold the Measure button and scan the laser back and forth, watching for changes in the yardage number as the crosshairs move across the target object. - Page 9 ® Laser Rangef inder angeFinding Laser rangefinders work by emitting a brief pulse of light • Solid objects, such as rock piles, will reflect the laser aimed at a target object. Distance is determined by the pulse better than less dense items such as bushes. amount of time taken for the light to emit and return to the •...
- Page 10 ® Laser Rangef inder vip W aFety and recautiOns arranty Do not stare into beam or view directly without laser eye We build optics based on our commitment to your absolute protection. Staring continuously into beam for prolonged satisfaction. That’s why our products are unconditionally periods of time could cause harm to your eyes.
- Page 11 #LRF100-17/S...
