AC300 POWER STATION
Please read this manual before use and follow its guidance. Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bluetti AC300

Summary of Contents for Bluetti AC300

  • Page 1 AC300 POWER STATION Please read this manual before use and follow its guidance. Keep this manual for future reference.
  • Page 2 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.

  • Page 3: Table Of Contents

    05. Features of AC300 ......11 06. Start up & Power off ......12 07. User Interface ........13 08. How to Recharge AC300 (INPUT) ...20 09. Discharge (OUTPUT) ....... 25 10. UPS ............28 11. Split Phase Bonding Function ....32 12.

  • Page 4: Ac300 Introduction

    Just Power On 01. AC300 Introduction 1.1. Introduction ●The AC300 system uses a dual-core controller (ARM controller + DSP controller) which combines digital and analog signals perfectly to manage and control the MPPT module, the AC Inverter module(Bidirectional topology,supporting AC reverse fast charging), the DC-to-DC module.

  • Page 5: General Safety Instructions

    ● Warning: DO NOT insert foreign objects into any ports of AC300 (both AC & DC & ventilation holes). The power station generates the same potentially lethal AC power as household wall outlet. Please use carefully and keep children away from it.
  • Page 6 Just Power On for the equipment. We are not liable for damage caused by third-party equipment and may render your warranty, invalid. 2.1. Installation (for grid-tie system) ● Before touching any conductor surface or terminal, measure the voltage of the contact point to confirm that there is no danger of electric shock. ●...
  • Page 7 BLUETTI 2.1.2. Personnel Requirements ● The personnel responsible for the installation and maintenance of the equipment must first undergo rigorous training to understand various safety precautions and grasp the correct method of operation. ● Trained personnel: personnel who have undergone corresponding technical...

  • Page 8: What`s In The Box

    Add a rat-proof baffle at the door of the machine room. 03. What`s in the Box Standard Accessories Category Quantity AC300 Power Station AC Charging Cable PV Charging Cable User Manual Warranty Card Certificate of QC PASS Additional Purchase Accessories Sold on BLUETTIPOWER.COM...

  • Page 9: App User Guide

    BLUETTI 04. APP User Guide Please make sure the Bluetooth & Wi-Fi State is “ON” before connecting AC300 with BLUETTI App. ( Main Interface - Settings - Next - Next - Next ) Step 1: ● Please search “BLUETTI” on the App Store (for IOS devices) or Google Play (for Android devices) to download the BLUETTI App to remotely control your AC300.
  • Page 10 Step 2： ● Scan the unique QR code on AC300 to add the unit on the available device list on the App, and fill it with the password of your Wi-Fi network to activate the communication function of AC300 for data syncing.
  • Page 11 The basic information can be viewed after the unit is connected with App successfully. Press ‘’gear icon’’ to customize the current working mode and parameters of your AC300 under “Settings”. ● BLUETTI App supports “Firmware Update” function to access the latest version of firmware for a better user experience.
  • Page 12 Just Power On Note: Please keep your phone 5m/16.4ft within the AC300 for better connection during update.

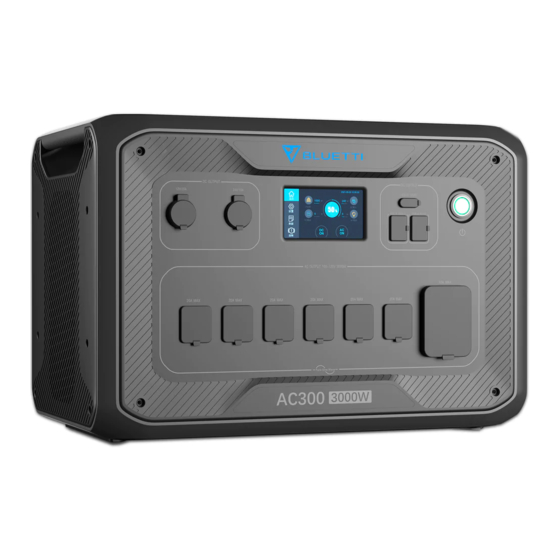

  • Page 13: Features Of Ac300

    BLUETTI 05. Features of AC300  12V/10A Cigarette Lighter Port  Power Button  12V/30A Port  USB-C(PD3.0 protocol supported)  Touchable Screen  Battery connection port  USB-A  AC Input Port  USB-A PV1/PV2 Input Port  AC Output Port(20A MAX)

  • Page 14: User Interface

    Power On AC300: Short press the power button. The power button indicator will illumination. ● Power Off AC300: Long press the power button for 2 seconds. The power button indicator light will turn off. ● DC power switch and AC power switch are accessible via the Touchscreen LCD.
  • Page 15 . BMS Information . AC Charging Info 7.2. Settings ● You can customize the working mode of AC300 and tweak the equipment’ s parameters such as language, voltage, frequency, current (UPS In-Grid Mode), working type, date/time, etc. ● Click the Settings Button in the homepage to enter the setting interface.
  • Page 16 7.2.3. Machine Type (for split phase setting, exclusive for 100-120V Version) “Single Phase” is set as the default machine type if you are operating a single AC300. This is the only and correct setting if a single AC300 is being used.
  • Page 17 Machine type is just used to set for Split Phase, “Split Phase” is only used for connecting both *2 AC300 (exclusive for 100-120V Version) bonded 2 pairs of AC300 to one power system to double the output power, voltage, so as to capacity.
  • Page 18 Just Power On 7.2.6. Date and time & Touch Sound & Backlight Brightness ● Tap each respective date and time setting in order to set the date and time as applicable to your local time zone. ● Tap to Enable/Disable touch sounds. ●...
  • Page 19 When you select the “Product Info” button, you can view the product model, serial number (SN), control software version, monitoring software version, BMS monitoring software version and display software version. ● The Serial Number (SN) can also be used to pair to BLUETTI APP manually.
  • Page 20 Just Power On 7.3.2. Inverter & Charger Info When you select the “Inverter & Charger Info” button, you can view the PV charging switch operation and the adapter operation status, DC out operation and AC out operation. This section can also be accessed directly from the shortcut icon on the main interface.

  • Page 21: How To Recharge Ac300 (Input)

    BLUETTI 08. How to Recharge AC300 (INPUT) ● The AC300 includes 2 charging ports which can be recharged in 5 different methods. They will be covered in three different sections according to which port(s) are being used. ● The ports are named Aviation Port 1 [CP1] and Aviation Port 2 [CP2] up the PV1/PV2 input port.
  • Page 22 ● The required output power of your generator has to exceed the Max. input power of the AC input port of the AC300. Also a generator with a pure sine wave output is recommended (e.g. Inverted-based Generators) Voltage limit: 85-110VAC/JP(100VAC),102-132VAC/US(120VAC), 207-253VAC/EU/UK/AU.
  • Page 23 8.2.1. Charging Method 3: Solar Panels (via 4pin aviation-MC4 cable) ● For regular solar panels: AC300 Supports two PV inputs,Single PV Max. input current of solar charging is 12A, the charging voltage should be between 12-150V. AC300 can achieve Max. 2400W solar input.
  • Page 24 ( Easy steps to solar charging ) ●For Roof Panels: If you choose roof panels to be the solar power source to recharge AC300, easily connect your roof panel with MC4-Aviation to AC300 will finish the installation. PV Module (additional accessories) is required to drop down the voltage if the open circuit voltage produced by your roof panels exceeds the limit of AC300 can handle: 12-150VDC, 12A*2.
  • Page 25 8.3. Dual Charging (CP1) (CP2) Charging Method 5: Supports charging the AC300 with CP1 and CP2 at same time. You can use any charging methods listed previously, simultaneous, to maximize charging power input. They are listed here again for your convenience.
  • Page 26 Just Power On Method 6: 24V CAR Charger/Storage battery( DC Input Source1 selects Others on the touch screen ) DC Input2: Method 7: Solar panels ( DC Input Source2 selects PV on the touch screen ) Method 8: T500 charging adaptor( DC Input Source2 selects Others on the touch screen ) Method 9: 12V CAR Charger/Storage battery( DC Input Source2 selects Others on the touch screen )

  • Page 27: Discharge (Output)

    2nd PV at same time, the estimation time will be 1.25-1.75Hrs.(AC300 with two B300 in parallel) 09. Discharge (OUTPUT) The operational time of the AC300 is subject to many different factors such ambient temperature, discharge rate, remaining battery capacity, and other factors.
  • Page 28 2. *1 Cigarette lighter port 3. *2 USB-C (PD 100W) 4. Power button 5. *2 USB-A (fast charging) 6. *2 USB-A 9.2. Operation Time Estimation AC300 with two B300 in parallel. ●Kitchen Equipment Refrigerator Electric Fry Pan Microwave Oven Washer...

  • Page 29: Ups

    Max. battery capacity at 80% at Time Control UPS Mode and Customized UPS Mode then AC300 could be charged to 80% via grid. The rest of the 20% capacity will be recharged via solar panels.
  • Page 30 BLUETTI Solar Panel PV Module ( AC300 grid-tied home power back-up system with Sub Panel and roof panels ) ( Plug-in UPS system ) Step1: Plug the AC charging cable into wall outlet Step2: AC charging cable into AC input port(left one) Step3：Connect the load to AC300 via AC output port...
  • Page 31 AC300 will always be on standby and keep the capacity stayed at 100%. 10.2.2. Time Control UPS Mode ●Set the times of the AC300 to be charged via grid power and the times to run loads from its battery. Charge Time: set the time of AC300 when to be recharged by grid to avoid the higher electricity bills charged.
  • Page 32 Retention Setting in PV Priority UPS Mode. And rest of the capacity will be fully charged by solar power and 2nd adaptor only. ● You can set the Min. Capacity Retention at 100% to let AC300 always be charged to 100% capacity via both grid and solar power.

  • Page 33: Split Phase Bonding Function

    ● Charge/discharge time, and Min./Max. Capacity can be set at Customized UPS Mode. ●Disable the grid charge setting, AC300 will not be able to be recharged by grid. ● Apart from Customized UPS Mode, the main switch of grid charging and time mode settings are involved.

  • Page 34: Technical Specification

    If one of the AC300 is out of power, the Split Phase Bonding function will not be valid. Step 1: Plug the output cables from each of the two AC300 to the Split Fusion box. Step 2: Plug the communication cables from each of the two AC300’s to the Split Fusion box.
  • Page 35 BLUETTI Storage Temperature -25-40℃ (-13-104 ℉ ) Working Environment 10-90% Humidity Certification PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS Capacity 3072-12288Wh (60-240Ah) Battery Type LiFePO4 Standard Battery Voltage 51.2VDC Battery Cell Voltage Range 44.8-57.6VDC Short-circuit Protection Included Over-temperature...

  • Page 36: Storage And Maintenance

    Just Power On <5% DC Output Cigarette Lighter Port *1 24VDC/10A USB-A *2 5VDC/3A total USB-A *2 3.6-12VDC/36W USB-C (Type-C) *1 20VDC/5A; 5-15VDC/3A Wireless Charging Pad *2 5W/7.5W/10W/15W RV Port *1 12VDC/30A 408W>load, 2S AC Input 207-253VAC Input Voltage 85-110VAC/JP 102-132VAC/US EU/UK/AU Input Frequency 47Hz-63Hz...

  • Page 37: Troubleshooting

    BLUETTI ●Ensure proper ventilation in use or store and keep away from any combustible materials or gases. ●Do not stack anything on the top of the unit in storage or use. ●Avoid exposing the unit to rain or wet environment, and direct sunlight (32- 113 ℉...
  • Page 38 Just Power On Please contact with the dealer if the error still 010 BUS Soft-Start Failure exists after rebooting the unit. Please contact with the dealer if the error still 011 H-BUS Voltage High exists after rebooting the unit. Please contact with the dealer if the error still 012 Bus Voltage High exists after rebooting the unit.
  • Page 39 The output power of load exceeds. Please check whether the grid voltage fits the 057 Grid Voltage High input voltage standard of AC300. Please check whether the grid voltage fits the 058 Grid Voltage Low input voltage standard of AC300.
  • Page 40 Just Power On Please check whether the grid frequency fits 059 Grid Frequency High the input frequency of AC300. Please check whether the grid frequency fits 060 Grid Frequency Low the input frequency of AC300. Please check whether the communication Multi Communication cable is connected correctly.
  • Page 41 096 24V/10A DC Port Locked unit. Please contact with the dealer if the error still exists after rebooting the unit. Please store AC300 at the recommended BMS Temperature temperature and leave it until the temperature abnormal inside back to the normal standard.

  • Page 42: Faq (Frequently Asked Questions)

    Just Power On Please contact with the dealer if the error still 102 BMS Output Short Circuit exists after rebooting the unit. Please check whether the battery power cable is reliably connected. BMS communication cable Please check whether the lock switch on the error power cable has been turnd on.

  • Page 43: Declaration

    ●Can I connected my two AC300 with Fusion Box to achieve double the output power, voltage and capacity. You can connect two AC300 OR two AC300 with a Fusion Box. The units must be of the same type and the correct Fusion Box (P020A for AC300, P030A for AC300).
  • Page 44 Just Power On manual. ●This unit is not suitable for use on the relevant equipment or machines involving: Personal safety, such as atomic energy devices, aerospace devices, transportation devices, medical devices, etc., or any equipment or machines that require highly reliable power sources. We are not responsible for accidents, fires, or wrongful or negligent actions done to the machine and equipment which results in damage.
  • Page 45 BLUETTI...
  • Page 46 Just Power On...
  • Page 47 P/N:17.0303.0338-01A1...
