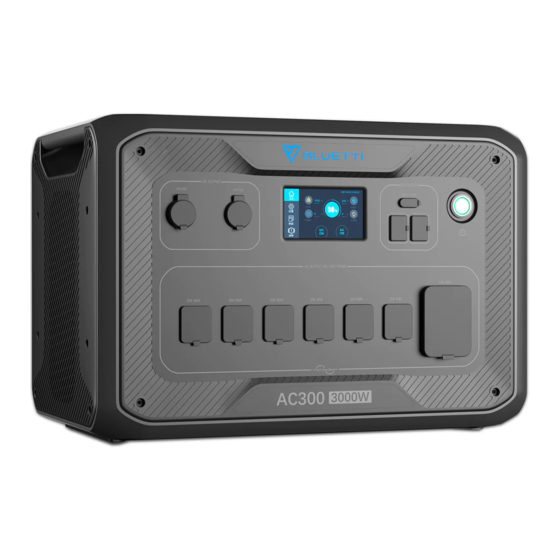

Bluetti AC300 User Manual

How to build a partial home backup system
Hide thumbs Also See for AC300:
Table of Contents

Advertisement

Quick Links

How to build
a partial home backup system with
AC300+B300
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC300 and is the answer not in the manual?

Questions and answers

Related Manuals for Bluetti AC300

Summary of Contents for Bluetti AC300

  • Page 1 How to build a partial home backup system with AC300+B300 User Manual...
  • Page 2 How to build a partial home backup system With AC300+B300 Entry type: FAQ, Entry ID: 10220706, Entry date: 14/11/2022...
  • Page 3 Thank You! Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.

  • Page 4: Table Of Contents

    3.1 Transfer switch 3.2 BLUETTI 30A AC charging cable 3.3 BLUETTI AC300 split-phase output cable 3.4 BLUETTI AC300 30A split-phase AC charging cable 3.5 Communication cable for split-phase function 3.6 NEMA L14-30R socket 3.7 NEMA TT30-P to L14-30R extension cord 3.8 Circuit breaker &...

  • Page 5: Volts Ac300+B300 Backup System

    1. 120 Volts AC300+B300 Backup System AC300+B300's Machine Type is set to "Single Phase" by default. DO NOT change this setting if you are operating a single AC300+B300 set. To build the backup system, you need the following: Accessories Qty.
  • Page 6 L14-30 TT30 1: TT-30 Socket 2: NEMA L14-30 Inlet on the transfer switch 3: 30AAC Charge cable Essential Load 4: TT30-P to NEMA L14-30 extension cord How to build a partial home backup system with AC300+B300 (Only for US standard)
  • Page 7 • Please check the voltage at outlets before plugging in your household appliances. • It is a electrical schematic. For the actual wiring diagram, please refer to Reliance PRO/TRAN2 installation instructions. How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 8: Volts Ac300+B300 Backup System

    2. 240 Volts AC300+B300 Backup System You can build the 240V Split Phase System by pairing two sets of AC300+B300 together. The system also has double the available output power and capacity. Besides TWO sets of AC300+B300, you also need the following: Accessories Qty.
  • Page 9 One TT-30 plug goes to a set. Step 3: Connect two AC300 units via the communication cable. Step 4: Turn on either AC300+B300 set. Step 5: Go to “Settings” and tap “Next”. How to build a partial home backup system with AC300+B300 (Only for US standard)
  • Page 10 • Machine Type: Select Split Phase Step 7: Select the “Master” in the Machine Address pop up. Step 8: Turn on the other AC300+B300 set. Repeat step 5 and 6 to set its machine type to “Split phase”. How to build a partial home backup system with AC300+B300 (Only for US standard)
  • Page 11 • Disconnect the AC charging cables from AC300+B300 sets before connecting to the transfer switch. • The split phase system can be controlled ONLY on the “Master” set. • If one of the AC300+B300 sets is out of power, the split phase system fails automatically. NOTE: •...
  • Page 12 Connect the AC300+B300 sets to the main panel Charge the 240V split phase system with AC300 30A split phase AC charging cable. Plug the cable to a NEMA L14-30 socket (240V )and the other two connectors into AC300s’ AC input ports.
  • Page 13 L: Live wire N: Neutral wire How to build a partial home backup system with AC300+B300 (Only for US standard)
  • Page 14 AC300 30A split-phase AC charging cable simultaneously. (AC input only through the AC300 30A split-phase AC charging cable but not the standard AC charging cable) Essential Load How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 15: Accessories

    Recommendation: Reliance Controls 310A PRO/TRAN 2 transfer switch. https://www.bluettipower.com/ or https: //www.amazon.com/30-Amp-10-Circuit-Manual-Transfer-Optional/dp/ B00YHLCMHM/ref=sr_1_1?crid=39Q2LGVYX2BK6&keywords=310A&qid=1666357623&q u=eyJxc2MiOiIwLjAwIiwicXNhIjoiMC4wMCIsInFzcCI6IjAuMDAifQ%3D%3D&sprefix=31 0a%2Caps%2C299&sr=8-1 3.2 BLUETTI 30A AC charging cable Please buy it from BLUETTI official store. https://www.bluettipower.com/products/ac300-30a-ac-charging-cable How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 16: Bluetti Ac300 Split-Phase Output Cable

    3.3 BLUETTI AC300 split-phase output cable Please buy it from BLUETTI official store. https://www.bluettipower.com 3.4 BLUETTI AC300 30A split-phase AC charging cable Please buy it from BLUETTI official store. https://www.bluettipower.com/products/30a-ac-charging-cable-for-split-phase- function How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 17: Communication Cable For Split-Phase Function

    Please buy it from BLUETTI official store. https://www.bluettipower.com/products/communication-cable-for-split -phase-function 3.6 NEMA L14-30R socket For charging the 240V AC300+B300 split phase system. Recommendation: Journeyman-Pro HJP 2710 NEMA L14-30R socket. https://www.amazon.com/Journeyman-Pro-Receptacle-Industrial-Grounding- Generator/dp/B07P8CGH52/ref=sr_1_7?crid=1WRMKA4V397S&keywords=l14-30r+rece ptacle&qid=1657944329&s=hi&sprefix=%2Ctools%2C405&sr=1-7 How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 18: Nema Tt30-P To L14-30R Extension Cord

    NOTE : If there are two solar panel arrays with a total open circuit voltage of 12-150V, you also need two 2P 16A DC circuit breakers. Circuit breaker: https://www.amazon.com/gp/product/B07GR32KCT/ref=ppx_yo_dt_ b_asin_title_o00_s00?ie=UTF8&psc=1 Protection box: https://www.amazon.com/gp/product/B07S75TV3V/ref=ppx_yo_dt_b_ asin_title_o00_s00?ie=UTF8&psc=1 How to build a partial home backup system with AC300+B300 (Only for US standard)
  • Page 19 How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 20: Solar Extension Cable

    4.1 How to install Reliance Controls ProTran2 - Part1, Tools and Planning https://www.youtube.com/watch?v=xTqjwt6WJ7o&list=PLpYCE0n7d22iDNwpVnOF9 HULSUYBBRY86 4.2 How to install Reliance Controls ProTran2 - Part2, Mounting https://www.youtube.com/watch?v=wNbBHVHgw0Y&list=PLpYCE0n7d22iDNwpVnO F9HULSUYBBRY86&index=2 How to build a partial home backup system with AC300+B300 (Only for US standard)

  • Page 21: How To Install Reliance Controls Protran2 - Part3, Wiring

    The Power Inlet Box https://www.youtube.com/watch?v=0M8sYRhEVPY&list=PLpYCE0n7d22iDNwpVnOF 9HULSUYBBRY86&index=5 4.6 How to install dd Controls ProTran2 - Part6, How To Operate https://www.youtube.com/watch?v=O4GA9AK8Tmo&list=PLpYCE0n7d22iDNwpVnO F9HULSUYBBRY86&index=6 5. More information: Website: www.bluettipower.com Email: service@bluettipower.com How to build a partial home backup system with AC300+B300 (Only for US standard)

This manual is also suitable for:

B300
