Summary of Contents for Bluetti B300

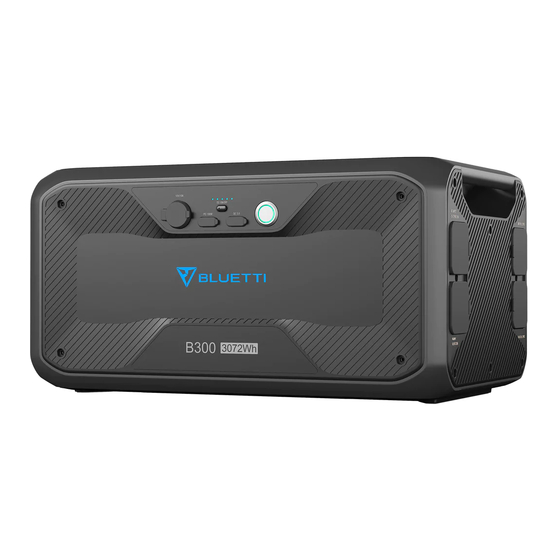

- Page 1 B300 Portable Power Station Please read this manual before use and follow its guidance. Keep this manual for future reference.
- Page 2 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.
- Page 3 Contents 01. B300 Introduction ......01 02. General Safety Instructions ...... 02 03. What`s in the Box ........06 04. APP User Guide ........07 05. Features of AC300 ......11 06. Start up & Power off ......12 07. User Interface ........13 08.
- Page 4 Just Power On 1.BRIEF INTRODUCTION Introduction B300, extension battery pack owns 3072Wh capacity to support BLUETTI AC230Max and AC300 series. With Split Phase Box(P030A), you can connect two AC300 to double the output power and capacity at the same time! Boast up to 6,000W of continuous power, 24.6kWh capacity in total, and 10.4kW of...
- Page 5 DO NOT move the unit while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside. ● Warning: DO NOT insert foreign objects into any ports of the B300. Please use carefully and keep children away from it.
- Page 6 Standard Accessories Category Quantity B300 Extension Battery B300 Portable Power Station Capacity Fusion Cable(P090A) Connect B300 with AC300 or AC200Max to share the capacity B300 Portable Power Station B300 Portable Power Station PV Input Cable (MC4 - XT90) (10A, MAX 200W) Charging B300 via solar panels with MC4 ports such as BLUETTI SP120 or SP200.
- Page 7 Sold on BLUETTIPOWER.COM B300 Portable Power Station Category Car Charging Cable(Cigarette Lighter Port - MC4) Charging B300 by vehicle, should work with default PV charging cable. Lead-acid Battery Charging Cable Charging B300 via lead-acid battery, put the clamps on the corresponding positive&negative poles of lead-acid battery.
- Page 8 Suit for 12V devices with 5521 input port such as router, camera and etc. 6.LET`S GET STARTED ● Turn on the main power switch located on the back of B300. ● Power On: Short press of the power button. The power button indicator will illuminate.
- Page 9 Ports Battery Capacity LED Power Button Show the remaining capacity of B300. To turn ON/OFF the B300, all the function will be closed. 12V/10A Cigarette Lighter Port Battery Extension Port x2 Output port for devices with corresponding The port to connect B300 with AC300/ plug such as vehicle-use vacuum.
- Page 10 Just Power On 8.RECHARGE Solar Charging ● Choose the solar panel with working voltage DC 10V-145V. ● Connect the solar panel to the product via solar charging cable included. ● Plug and play charging: it will start charging automatically after connecting the solar panel to the product even it is off status.
- Page 11 BLUETTI Car Charging 9.AC300 + B300 EXTRA BATTERY CONNECTION AC300 can extend the capacity by 1-4 B300 battery pack to 3072-12288Wh. B300 Supports up to 4 battery packs in parallel.
- Page 12 Just Power On 10.AC200MAX + B300 EXTRA BATTERY CONNECTION 图一，200MAX 接一个电池包 AC200MAX with *1 B300 图二，200MAX 接两个电池包 AC200MAX with *2 B300 11.TECHNICAL SPECIFICATIONS General Specs Model No. B300 Net Weight 33kg (44.1lbs) Dimensions 520*320*263mm (20.5*12.8*14.1in) Charge Temperature 0-40℃ (32-104 ℉ ) Discharge Temperature -20-40℃...
- Page 13 ● Can the unit be upgraded? When B300 has been connected to AC300, the firmware including ARM, DSP, IoT and BMS can be upgraded online through OTA via BLUETTI APP. ● Can it be charged and discharged at the same time? Yes, the unit supports pass-through charging function for DC outputs.
- Page 14 ● How can I connect the product to my home circuit breaker box? To install the grid-tie power system, a licensed electrician with a professional technician certificate is required to connect the wires of critical equipment loads from your main electrical box to the BLUETTI Sub Panel (optional purchase). 13. DECLARATION ●...
- Page 15 P/N:17.0303.0338-01A1...
