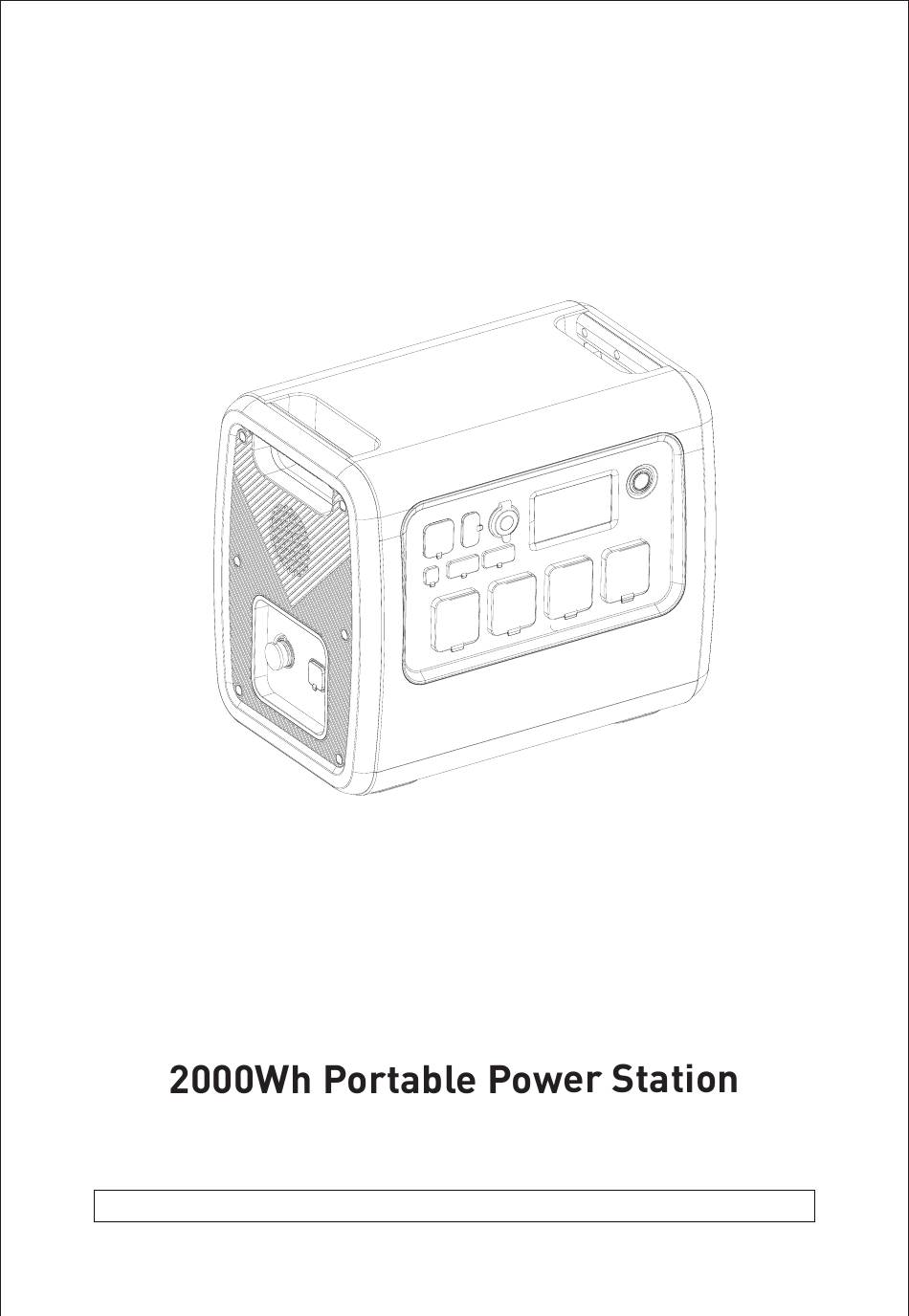

- Page 1 User Manual Please read this manual before use and follow its guidance. Keep this manual for future reference.
-
Page 2: Table Of Contents
Contents Safety instructions…………………………………………………………..……..…..01 1.Packing list…………………………………………………………….........…. 02 2.Function introduction………………………………………………..………....03 3.Startup and shutdown operation…………………………………..………....….04 4.How to use the user-friendly touch screen display……………........……04 5.The operation steps of user-friendly touch screen display…....…....….05 6.Charging the product………………………………………………..……....…….07 7.Discharging…………………………………………………………........…..09 8.Application scenario ………………………………………………........…..09 9.Examples of loads……………………………………………………..…....….….09 10.Estimation of charging time………………………………………......……….10 11.Specification………………………………………………………..…....…….….11 12.Storage and maintenance instructions…………………………..……....…….12... -
Page 3: Safety Instructions
Safety instructions Please observe the following instructions to ensure safe usage: Do not alter or disassemble this product. Do not move during charging or using it, because the vibration and impact during moving will lead to poor contact of output interface. In case of fire, use dry powder fire extinguishers for this product. -
Page 4: Packing List
1. Packing list What`s In The Box AC-DC Adapter Power Station Solar charging cable Car Charging Cable (MC4 to XT90) (Car Plug to XT90) User Manual Warranty Card XT90 to Aviation User Manual Warranty Card Plug (input) Optional 12V/25A Plug to XT60 to Anderson Lead-acid Battery Female DC7909 to XT90... -
Page 5: Function Introduction
2. Function introduction DC 12V/10A cigarette lighter port PV/Car input port DC 12V/10A output x 2pcs Adapter input port DC 12V/25A output Wireless charging 15W x 2pcs USB-A 18W output x 2pcs Touchable interaction LCD display USB-C 100W output Power button USB-A 5V/3A output x 2pcs US AC output x 6 pcs (EU/UK AC output x 4pcs) -
Page 6: Startup And Shutdown Operation
3. Startup and shutdown operation (1) Start up: short press the power button, the indicator light is on, and the machine is in standby mode. (2) Shutdown: press and hold the power button for more than 2 seconds, and the indicator light will be off and the machine shut off. -
Page 7: The Operation Steps Of User-Friendly Touch Screen Display
5. The operation steps of touch screen Warm tip: ●The touchable LCD screen is a resistance screen. we recommend to press the touch button by fingernail lightly until it "beeps". ●In order to maximize the lifespan of the LCD screen, please avoid direct sunlight on it. (1) When press the power button,it will enter the main interface of the LCD display screen: a.PV/Car charging display e.DC ON/OFF Switch... - Page 8 （Figure 2） （Figure 3） (3) Return to the main interface (Figure 1), click the “Data” button to enter the page (Figure 4) : ●Click the “Product Info” button, you can view the product model, control software version, monitoring software version, BMS monitoring software version and display software version in turn;...
-
Page 9: Charging The Product
6. Charging the product There are five ways to charge: (1) Charging mode 1: From AC Wall outlet ● Press the main power button to start charging after connecting the product to the AC wall outlet, the charging will automatically stop when it reaches 100%. (2) Charging mode 2: From the solar panels ●Choose the solar panel with working voltage DC 35V-150V. - Page 10 (4) Charging Mode 4: From a generator (gasoline, propane or diesel) ●Connect the AC adapter input to the generator and the output port to the AC charging port of the machine. ●Press the power button, the product will be charged, the charging will automatically stop when it reaches 100%.
-
Page 11: Discharging
7. Discharging (1) Turn on 12V / 25A, 12V / 3A, cigarette lighter port, USB and type C output: first, press the power button, then enter the main interface through the touch screen, click the DC ON/ OFF button and confirm, Turn off these output, and also click the DC on / off button and confirm. -
Page 12: Estimation Of Charging Time
(4) When the battery power is discharged to 0%, the DC and AC output will automatically turn off. Only when the battery power is charged to more than 5%, the DC and AC output can be turned on, which is to protect the battery and enhance its cycle life. (5) This machine supports charging and discharging simultaneously. -
Page 13: Specification
11. Specification General Specs Rated Output Typical Battery Type Net Weight Capacity power About 27.5KG/60.6lbs 2000Wh,50VDC,40Ah 2000Wh Lithium-ion (The weight may subject to 2000W<load<2500W,2min; Battery slightly change without notice) 2500W<load,immediately Dimensions Charging Discharge Working Working Temperature Temperature Noise Humidity 0-40 -20-40 440x296x387.5mm ℃... -
Page 14: Storage And Maintenance Instructions
12. Storage and maintenance instructions (1) Please fully charge the machine before storing it. (2) Turn off all power buttons. (3) To preserve the battery liftspan, please use and recharge at least once every 6 months. (4) Ensure proper ventilation while in use or store and keep away from any combustible materials or gases. -
Page 15: Faq(Frequently Asked Questions)
(3) Check whether the left of battery capacity is more than 5%. If the left of battery capacity is less than 5%, please charge as soon as possible. (4) Ensure that the load equipment meets the power limit of the product, that is, the load power is within the maximum input range of each output interface;...
