ASSEMBLY INSTRUCTION
W A R N I N G
To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the tool when assembling parts.

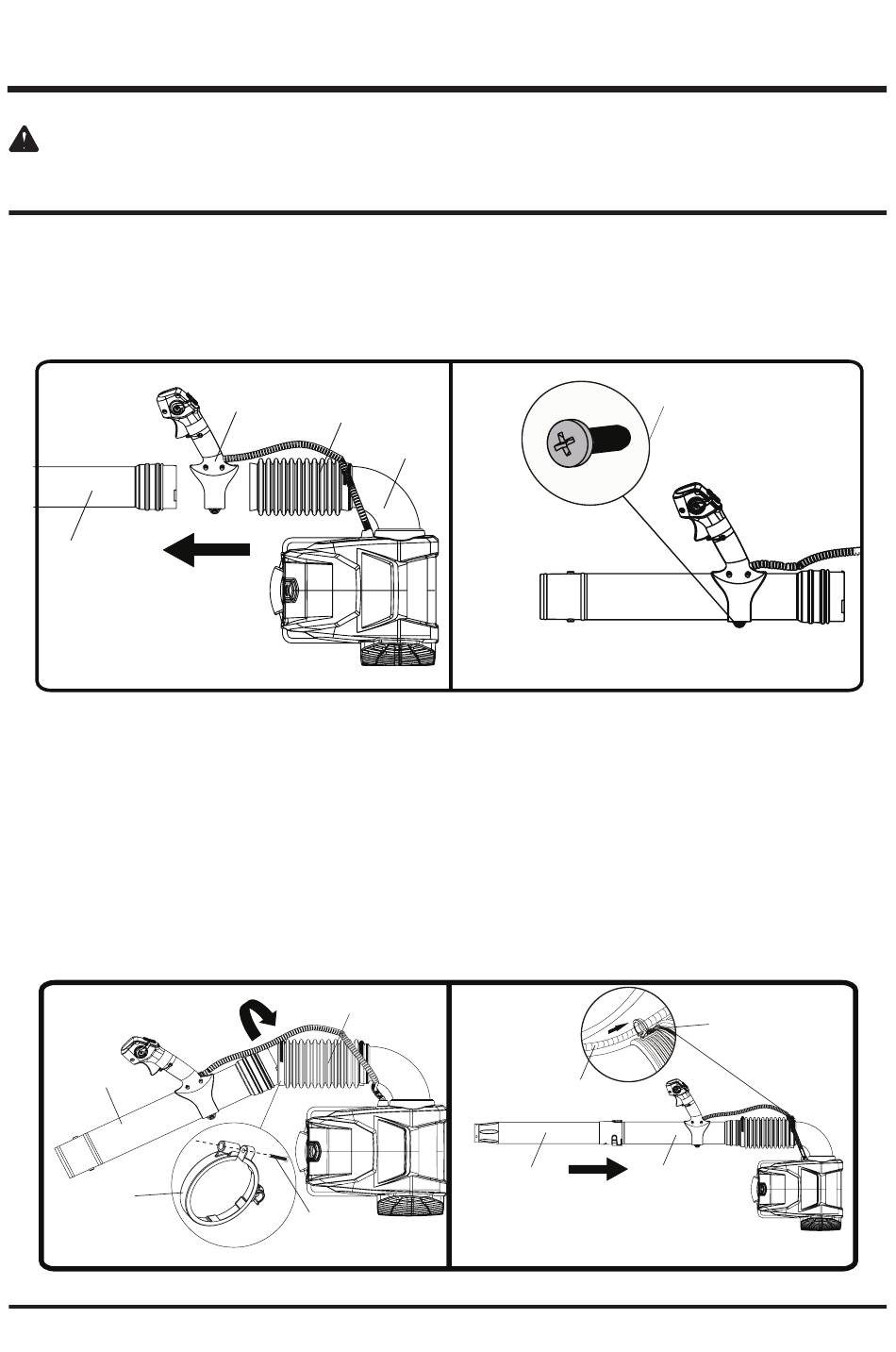

ASSEMBLING THE TIGGER HANDLE
• The flexible tube (A) is connected to the fan outlet tube (B) from the manufacturer.
• Slide trigger handle (C) on the upper blower tube (D).
• Move trigger handle to desired location before fully tightening. Use supplied screw (E) to tighten
trigger handle to the blower tube.
D
FIG.2
ASSEMBLING THE BLOWER TUBE
• Before tube installation, place the hose clamp (F) around the flex tube. Clamp may need to
be slightly loosened for tube installation. Insert the shorter end of the upper blower tube (D)
assembly into the flex tube (A) at a slight angle.
• Use one end of the tube as a pivot point, and press the other side into the flex tube. This may
require some force or lubrification to help assemble the two parts.
• Stop pressing the upper blower tube when it connects to the flex tube. Fully tighten the screw ( G)
on the hose clamp (F) once assembled. Use a screw driver (not provided) to loosen and tighten
the hose clamp. Turn clockwise to tighten, and counter clockwise to loosen.
• Place the cord (H) in the cord retainer (I).
• Connect the blower tube (J) to the operating tube (D). Twist clockwise until the tubes lock into
postion.
D
F
FIG.4
C
A
(See Figure 4-5.)
A
G
(See Figure 2-3.)
B
H
J
FIG.5
