Summary of Contents for Timeguard NTT06

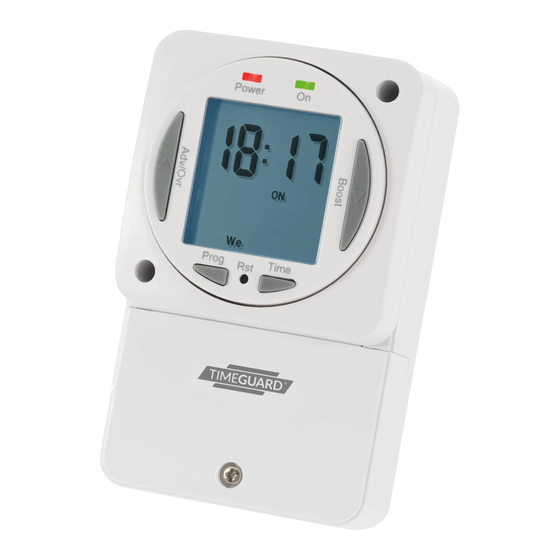

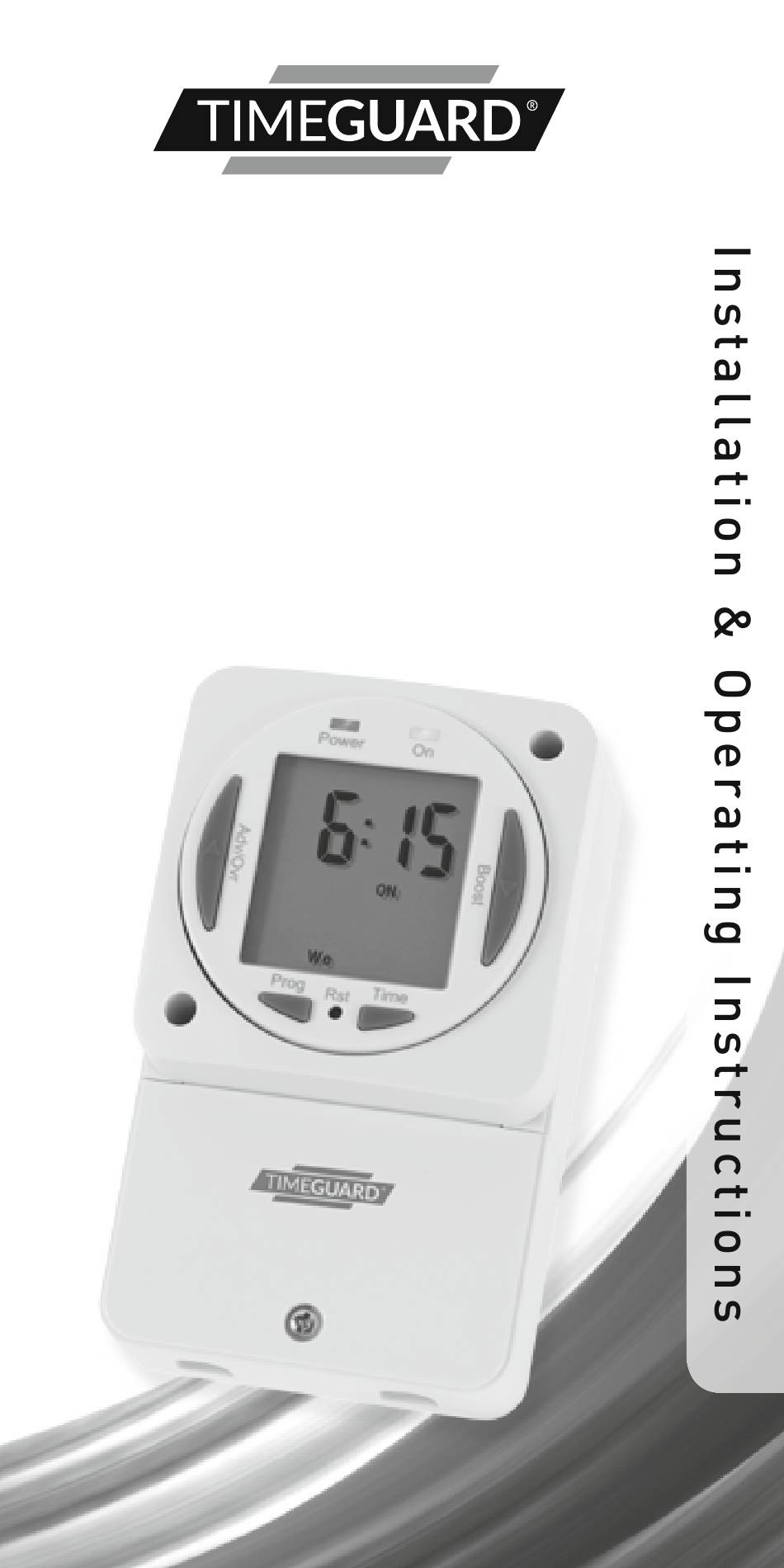

- Page 1 Digital Time Switch Model: NTT06 24 Hour General Purpose Digital Timer Model: NTT07 7 Day General Purpose Digital Timer...
-
Page 2: General Information
2400W incandescent and halogen lighting 750W fluorescent lighting 100W Compact fluorescent & LED lighting The LED switching capabilities of this product can be increased to 200W by the addition of the Timeguard ZV900 Automatic switch load controller – sold separately. - Page 3 • Boost Times: 1 or 2 hour • Power Status LED Indicator: • Output LED Indicator: Green • NTT06: 24 Hour Time Period, Up to 48 programmes per day • NTT07: 7 Day Time Period (7 Day, 5 + 2 Days...
-
Page 4: Installation
Power LED Output Illuminated screen Advance Boost button button Programme Time button button Reset Terminal button cover 4. Installation • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off. •... - Page 5 • Remove the product and drill out the lower mounting hole again taking care to avoid any joists, electrical cables or water/gas pipes that may be hidden beneath the surface. Insert the rawl plug into the hole. • The 230V 50Hz supply and load cables can enter through the rear knock outs or the front cable entry ports provided.
-
Page 6: Connection Diagram
5. Connection Diagram • The terminals are marked as follows on the bottom of the wall plate; 230V Mains Voltage Switching Link or ‘bridge wire’ 230V 50Hz Load Mains Supply 230V 50Hz Mains Supply Live (Brown or Red) to Neutral (Blue or Black) to Earth (Green/Yellow) to Load Switch Live (Brown or Red) to either;... - Page 7 Voltage Free Switching – e.g. 24V circuit 230V 50Hz Load Load Mains Supply 230V 50Hz Mains Supply Live (Brown or Red) to Neutral (Blue or Black) to Earth (Green/Yellow) to Load Remove the ‘Link’ or ‘Bridge’ L & 1 from between Live input (for voltage free output) to 1 Switch Live (for low voltage appliance) to either;...
-
Page 8: Setting The Clock
6. Battery • The time switch has a factory fitted rechargeable battery to give clock operation and programme memory back up during loss of mains supply. • Before programming for the first time, connect the unit to the mains for at least 15 minutes prior to pressing the Rst button and programming the unit. - Page 9 • Use the Adv/Ovr to increase (or the Boost buttons to decrease) the value and set to the correct year. • Press the Time button once to save the year, and the screen with show the month; • Use the Adv/Ovr or boost button to set the correct month.
- Page 10 ON/OFF times The NTT06/07 has 4 independent On/Off periods available for programming each day. For the NTT06, 24 hours is the only option, so all 7 days will be the same. For the NTT07 there is a choice of programming...
- Page 11 Individual day – Mo (followed automatically in programming by each of the other days of the week). Note: For the NTT06, Mo Tu We Th Fr Sa Su is the only option. • Once the desired day grouping is selected, press Prg button once to set and move onto programming the ON/OFF times.
- Page 12 Programme 4 ON and programme 4 OFF, adding in times as required. Note: If further times are not required, just leave the dashes in place and scroll past the rest of the programs using the Prg button. • After Programme 4 has been entered, then next day grouping will follow e.g.
- Page 13 • In the same way as for individual programmes, days or groups of days can be omitted either by leaving dashes in all the locations for ON/OFF times for that day or group of days. Alternatively, leaving the programme entry mode before filling in all the ON/OFF times will leave the remaining times blank.
-
Page 14: Boost Button
• Review times and adjust as necessary as described at the start of section 9. 10. Advance/Override button In normal operating mode the Adv/Ovr button advances the programme to the next time change. • If the output is currently OFF, it will change the output to ON ADVANCE, until the next programmed OFF time. -
Page 15: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance... - Page 16 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
