Summary of Contents for Timeguard NTTWIFI

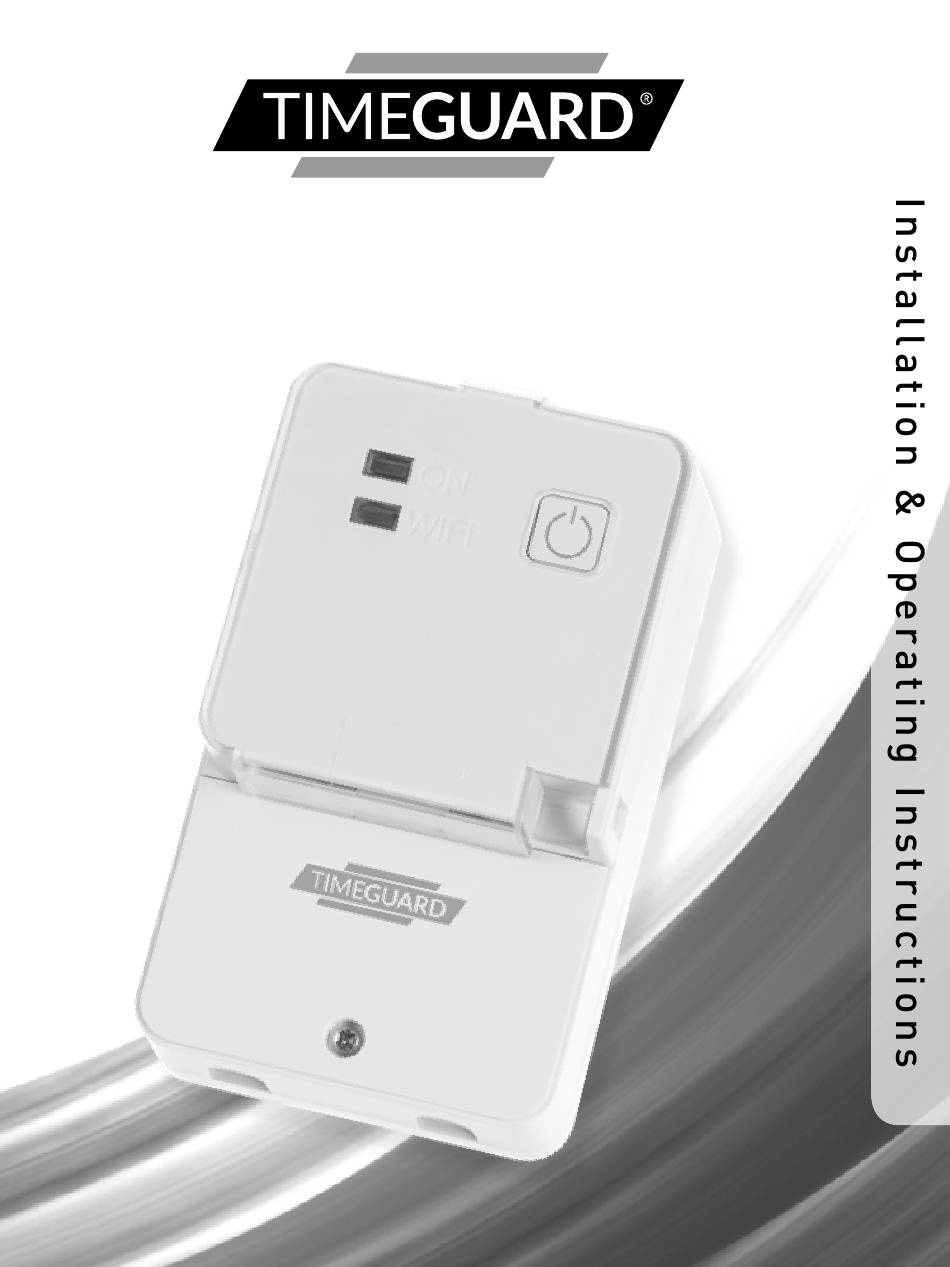

- Page 1 Wi-Fi Controlled Time Switch Model: NTTWIFI...
-
Page 2: General Information
These instructions should be read carefully, in full, before installation. Please note that all instructions are to be left with the customer after installation. Note: Timeguard reserve the right to alter these instructions, and the SupplyMaster app, at any time. Up to date instructions will always be available for download at www.Timeguard.com. - Page 3 3. Technical Specifications • 230V AC 50 Hz • This time switch is of class I construction and must be earthed • Switch Rating: 16A Resistive (3.68kW) Immersion Heaters 1kW Incandescent and Halogen lighting 500W Fluorescent lighting 100W Compact fluorescent and LED lighting •...

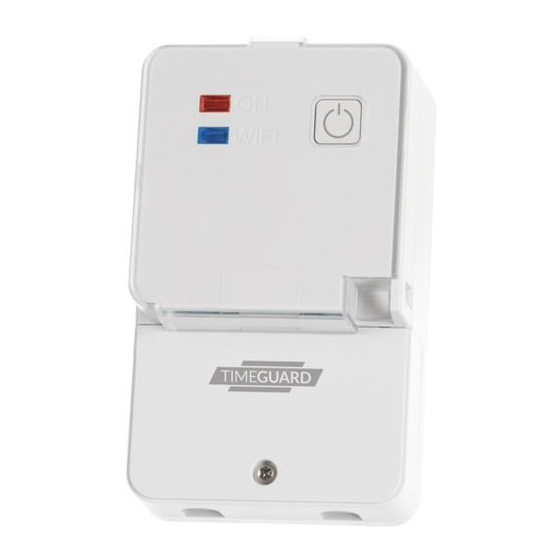

- Page 4 Wi-Fi ON/OFF Override connection indicator button indicator and Wi-Fi connect Terminal cover fixing Terminal screw cover Note: The timeswitch comes with a tamper proof cover which is padlockable.
- Page 5 Note: all instructions are to be left with the customer after installation. 5. Installation The NTTWIFI is a Wi-Fi controlled time switch which surface mounts. There is provision for two front cables, with built in cable clamps. The contacts are not volt free. There is a loop terminal for earth continuity.
- Page 6 5.3 Mark the position of the top wall mounting screw. Drill out the top mounting hole taking care to avoid any joists, electrical cables or water/gas pipes that may be hidden beneath the surface. Insert the rawl plug into the hole. 5.4 Fix the top mounting screw and leave 2.5mm proud off of the wall.
- Page 7 6. Connections • The terminals are marked as follows; Live Supply Neutral Neutral Switched Loop Terminal Supply Load Live Load terminal (Brown or Terminal Terminal Terminal for earth Red) 230V (Blue or (Blue or (Brown or continuity 50Hz Black) Black) Red) Green/ Yellow...
- Page 8 Provider) on separating the bands if required. 7.1 Ensure your phone or tablet is connected to your local Wi-Fi network. 7.2 Download the Timeguard Supplymaster App onto your phone or tablet by searching for Timeguard on Google Play store or the Apple App store.
- Page 9 App, enter the password for the network SSID. Important – DO NOT PRESS START AS OF YET. 7.7 On the NTTWIFI, hold down the override button, until the blue LED light starts to flash. 7.8 Once the blue LED is flashing press start in the App.
- Page 10 8. Features of the NTTWIFI Device Micro Disconnection • The unit offers micro disconnection of the load using the programmed times. • Micro disconnection can also be applied using the override switch on the front of the unit. Manual Override •...
- Page 11 • The App can be downloaded from the Google play store or Apple store. • An NTTWIFI can be used to provide convenient, easy programming, from your phone or tablet. Program changes can be made at any time, from any location, which will enable the user to save money by cancelling programmed times during periods of unexpected absence.
- Page 12 Device Home Screen • From log in, the user is presented with a list of devices. Each of these has a device home screen. When a device is selected, the home screen is then shown. Device name Back Settings button Time of next programme Mode...
- Page 13 Operating Modes • The following options are available in Settings Auto: Controlled by the timer programme, and can be temporarily overridden by Boost or Advance. Permanent OFF: Output is off until auto is re enabled by the user. In this mode, boost and advance are disabled. Permanent ON: Output is on until auto is re enabled by the user.
- Page 14 Advance • Advance changes the output state until the next programmed change. Note: The display will show the next program change: • The time of the next programmed change is shown on the device home screen. It also shows the boost time in boost mode (see above). Program Entry •...
- Page 15 Alternative Program Periods • The App supports multiple alternative programs. This is useful for keeping separate sets of programs, for use in school holidays, periods of non-residency, pre and post summer time, seasonal programs, and periods of unexpected residency such as illness. This means that the original time programs can be saved, and reverted back to when needed, without the need for re-programming.
- Page 16 Positive Affirmation of ON/OFF Status • With output status not enabled (default), the advance button shows red OFF, green ON. • Output status will not work unless there is more than a 10W load present. There will still be an output, but this will not show on the device home screen.
- Page 17 • This shows the version number of the App, and will notify if an update is available. User Manual • This is a link to the Timeguard web page version of these instructions. There is also a link to a Youtube site, where there are videos of the App functions.
- Page 18 Graphical Representation of the Last 24 Hours • With output status enabled, there is a graphical representation that compares programmed on times with actual output. This can be used to check that the NTT (and the connected appliance) has been working correctly. •...
- Page 19 Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement is sent.
- Page 20 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
