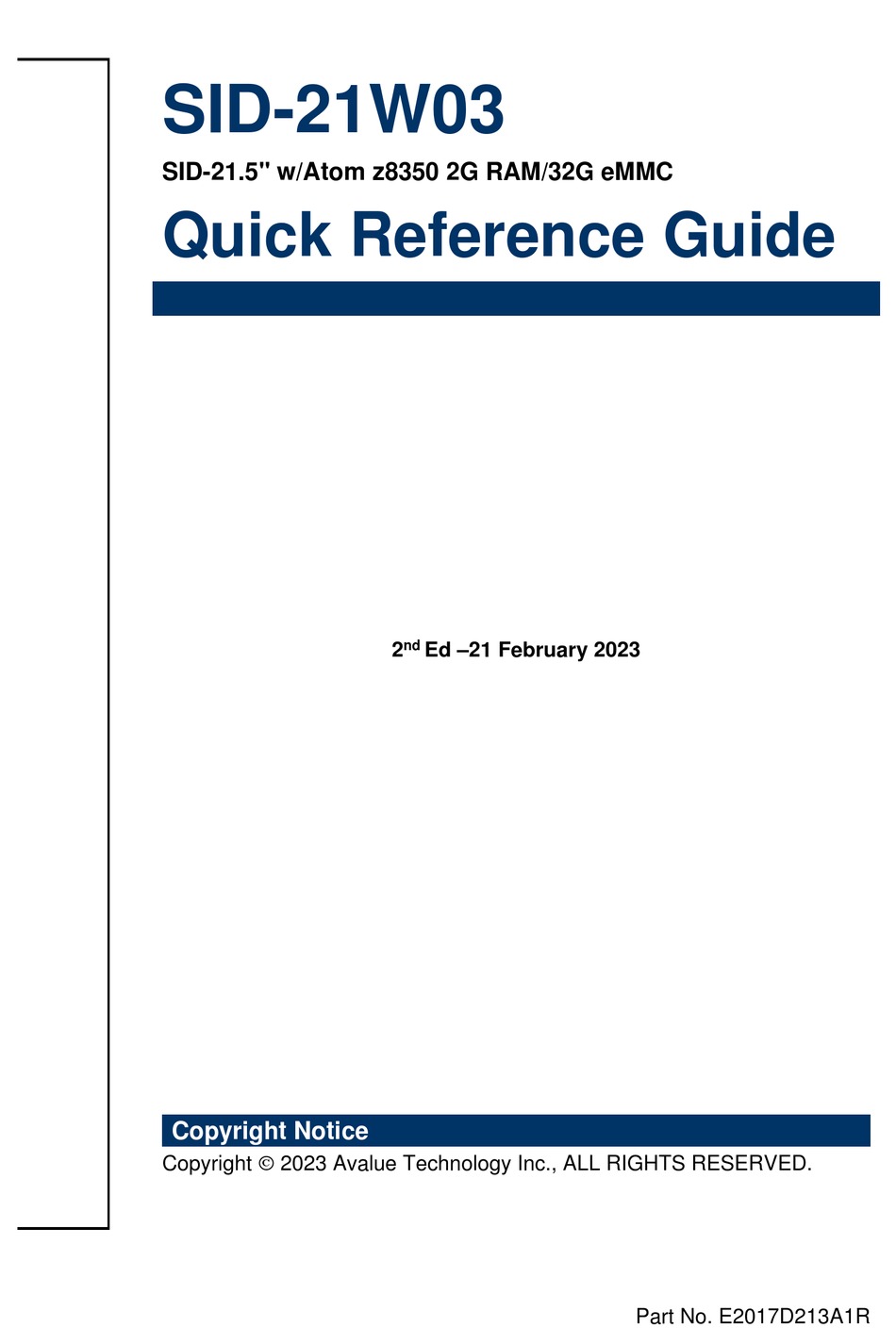

- Page 1 SID-21W03 SID-21.5" w/Atom z8350 2G RAM/32G eMMC Quick Reference Guide Ed –21 February 2023 Copyright Notice Copyright 2023 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017D213A1R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-21W03 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
System Specifications ................... 7 System Overview ....................9 1.4.1 I/O View ............................9 System Dimensions ..................... 10 Hardware Configuration ................... 11 SID-21W03 connector mapping ................12 2.1.1 Serial port connector (COM) (Optional) ..................12 2.1.2 RJ-45 Ethernet connector (LAN) ....................12 2.1.3 HDMI connector (HDMI) ...................... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-21W03 Panel PC 1 x AC/DC adapter 12V/5A 90 Screw Type ... -
Page 7: System Specifications
1 x Dipole Antenna Antenna Switch 1 x power push button Others 1 x Reset button Mechanical Power Type 12V~24V DC-Input Power Connector 2.5mm DC-in jack Type Dimension 509 x 304.8 x 51.3 mm Weight 7.2 kg Color Black SID-21W03 Quick Reference Guide... - Page 8 2. Limitation: CPU Intel Z8350 only has S0iX or S5 without S3 & S4. S0iX needs hardware support that means all of device must have S0iX support or will not wake up. Please strongly advice customers to not get into sleep mode, just backlight off. 8 SID-21W03 Quick Reference Guide...
-
Page 9: System Overview
Line out Audio line-out connector Head phone jack HDMI HDMI connector HDMI type A 2 x USB2.0 connector USB2.0 USB3.0 connector USB3.0 DCIN DC power-in connector DC jack RJ-45 Ethernet connector Serial port connector(Optional) DB-9 male connector SID-21W03 Quick Reference Guide... -
Page 10: System Dimensions
SID-21W03 1.5 System Dimensions (Unit: mm) 10 SID-21W03 Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw SID-21W03 Quick Reference Guide 11... -
Page 12: Sid-21W03 Connector Mapping
SID-21W03 2.1 SID-21W03 connector mapping 2.1.1 Serial port connector (COM) (Optional) Signal PIN PIN Signal 2.1.2 RJ-45 Ethernet connector (LAN) Signal 12 SID-21W03 Quick Reference Guide... -
Page 13: Hdmi Connector (Hdmi)
Quick Reference Guide 2.1.3 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 2.1.4 USB2.0 connector (USB2.0) Signal USB_JUSB2_N USB_JUSB2_P SID-21W03 Quick Reference Guide 13... -
Page 14: Usb3.0 Connector (Usb3.0)
SID-21W03 2.1.5 USB3.0 connector (USB3.0) Signal PIN PIN Signal USB_JUSB1_RX_N USB_JUSB1_N USB_JUSB1_RX_P USB_JUSB1_P USB_JUSB1_TX_N USB_JUSB1_TX_P 14 SID-21W03 Quick Reference Guide...
