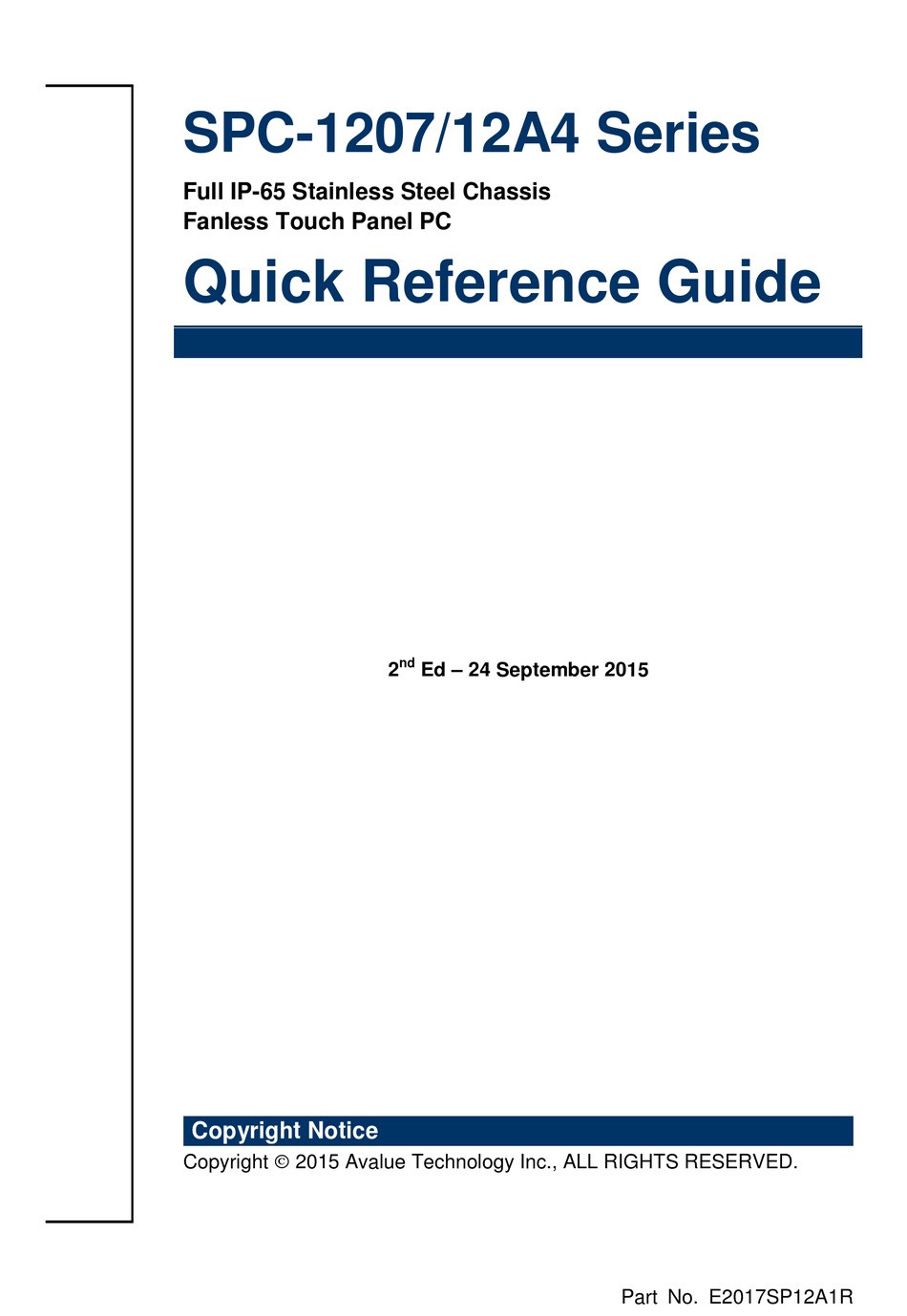

- Page 1 SPC-1207/12A4 Series Full IP-65 Stainless Steel Chassis Fanless Touch Panel PC Quick Reference Guide Ed – 24 September 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017SP12A1R...
- Page 2 SPC-1207/12A4 Series FCC Statement THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A"...
-
Page 3: Table Of Contents
Quick Reference Guide Contents Getting Started ......................4 1.1 Safety Precautions ....................4 1.2 Packing List ....................... 4 1.3 System Specifications ....................5 1.4 System Overview ...................... 7 1.4.1 Rear View ........................... 7 1.5 System Dimensions ....................8 1.5.1 Front and rear side......................8 SPC-1207/12A4 Series Quick Reference Guide... -
Page 4: Getting Started
SPC-1207/12A4 Series 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 5: System Specifications
Quick Reference Guide 1.3 System Specifications Panel SPC-1207 SPC-12A4 Model LCD Size 12.1”, 4:3 Resolution 1024 x 768, XGA Pixel Pitch 0.240mm (H) x 0.240mm (V) Luminance 600cd/m² Contrast Ratio Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R) Response Time 16ms Backlight... - Page 6 SPC-1207/12A4 Series Power Input 1 x DC-in (Water Proof, IP-67 Rating) 1 x DC-in (Water Proof, IP-67 Rating) Speaker 2 x 2W Speaker 2 x 2W Speaker Environment & Mechanical Color Front & Rear Panel Silver Mounting VESA/ Wall/ Stand 75mm x 75mm & 100mm x 100mm System Power Requirement +12 ~ 26V DC Power Input Input: 100 ~ 250VAC/ 47 ~ 63Hz...
-
Page 7: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Rear View Connectors Label Function Note POWER Power jack Combo Port Waterproof USB2.0 + LAN + COM connector Waterproof USB 2.0 connector x 2 SPC-1207/12A4 Series Quick Reference Guide... -
Page 8: System Dimensions
SPC-1207/12A4 Series 1.5 System Dimensions 1.5.1 Front and rear side (Unit: mm) 8 SPC-1207/12A4 Series Quick Reference Guide...
