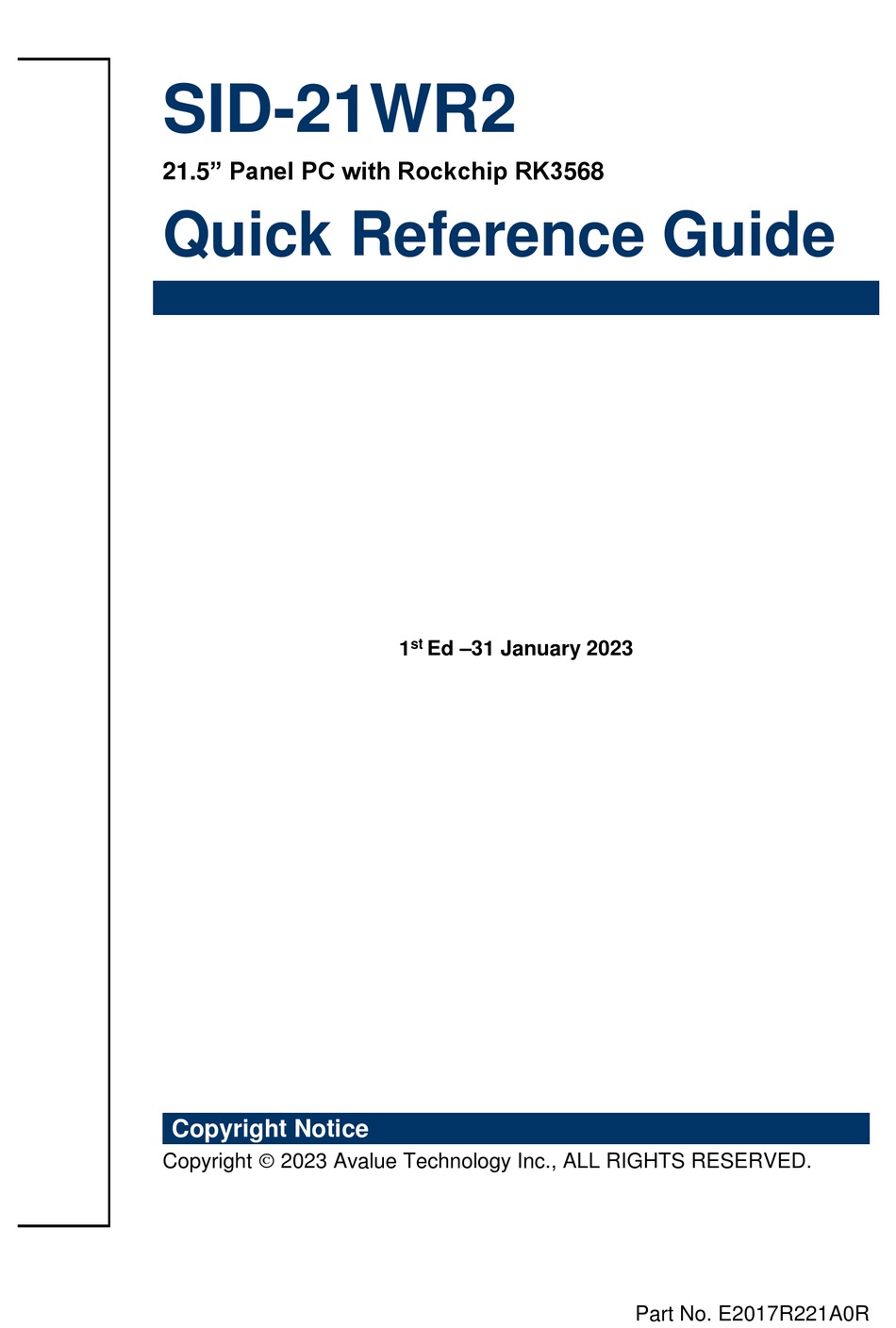

- Page 1 SID-21WR2 21.5” Panel PC with Rockchip RK3568 Quick Reference Guide Ed –31 January 2023 Copyright Notice Copyright 2023 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017R221A0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-21WR2 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
1.4.1 Front View ..........................10 1.4.2 Rear View ........................... 10 System Dimensions ..................... 11 Hardware Configuration ................... 12 SID-21WR2 connector mapping ................13 2.1.1 Serial port connector (COM) ...................... 13 2.1.2 Serial port connector (COM) ...................... 13 2.1.3 RJ-45 Ethernet connector (LAN) ....................14 2.1.4... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-21WR2 Panel PC 1 x AC 60W Adapter ... -
Page 7: System Specifications
JLAN1: 10/100/1000 Lan port_90D Audio Port JHP1: Headphone Jack_90D Reset button Reset button_90D 1 x DB9 for RS-232 COM Port 1 x DB9 for RS-485 Mechanical Power Type 12V~24V wide voltage DC input Power Connector DC jack SID-21WR2 Quick Reference Guide... - Page 8 2. Non-operation mode Package vibration 3. Test Frequency : 5-500Hz test 4. Test Axis : X,Y and Z axis 5. 30 min. per each axis 6. IEC 60068-2-64 Test:Fh Mechanical Shock 1. PSD: 0.026G²/Hz , 2.16 Grms 8 SID-21WR2 Quick Reference Guide...
- Page 9 7. Reference IEC 60068-2-29 Testing procedures Test Eb : Bump Test Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Storage -20°C ~ 60°C (-4°F ~ 140°F) Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Note: Specifications are subject to change without notice. SID-21WR2 Quick Reference Guide...
-
Page 10: System Overview
USB3.0 2 x USB3.0 connector USB type A DCIN DC power-in connector DC jack RJ-45 Ethernet connector 1 x DB9 for RS-232 2 x Serial port connector 1 x DB9 for RS-485 RESET Reset button 10 SID-21WR2 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) SID-21WR2 Quick Reference Guide 11... -
Page 12: Hardware Configuration
SID-21WR2 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SID-21WR2 Quick Reference Guide... -
Page 13: Sid-21Wr2 Connector Mapping
Quick Reference Guide 2.1 SID-21WR2 connector mapping 2.1.1 Serial port connector (COM) RS-232 Signal PIN PIN Signal 2.1.2 Serial port connector (COM) RS-485 Signal PIN PIN Signal DATA- DATA+ SID-21WR2 Quick Reference Guide 13... -
Page 14: Ethernet Connector (Lan)
SID-21WR2 2.1.3 RJ-45 Ethernet connector (LAN) Signal LAN_MDI0+ LAN_MDI0- LAN_MDI1+ LAN_MDI2+ LAN_MDI2- LAN_MDI1- LAN_MDI3+ LAN_MDI3- 2.1.4 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 14 SID-21WR2 Quick Reference Guide... -
Page 15: Usb3.0 Connector (Usb3.0)
Quick Reference Guide 2.1.5 USB3.0 connector (USB3.0) Signal Data- Data+ SID-21WR2 Quick Reference Guide 15...
