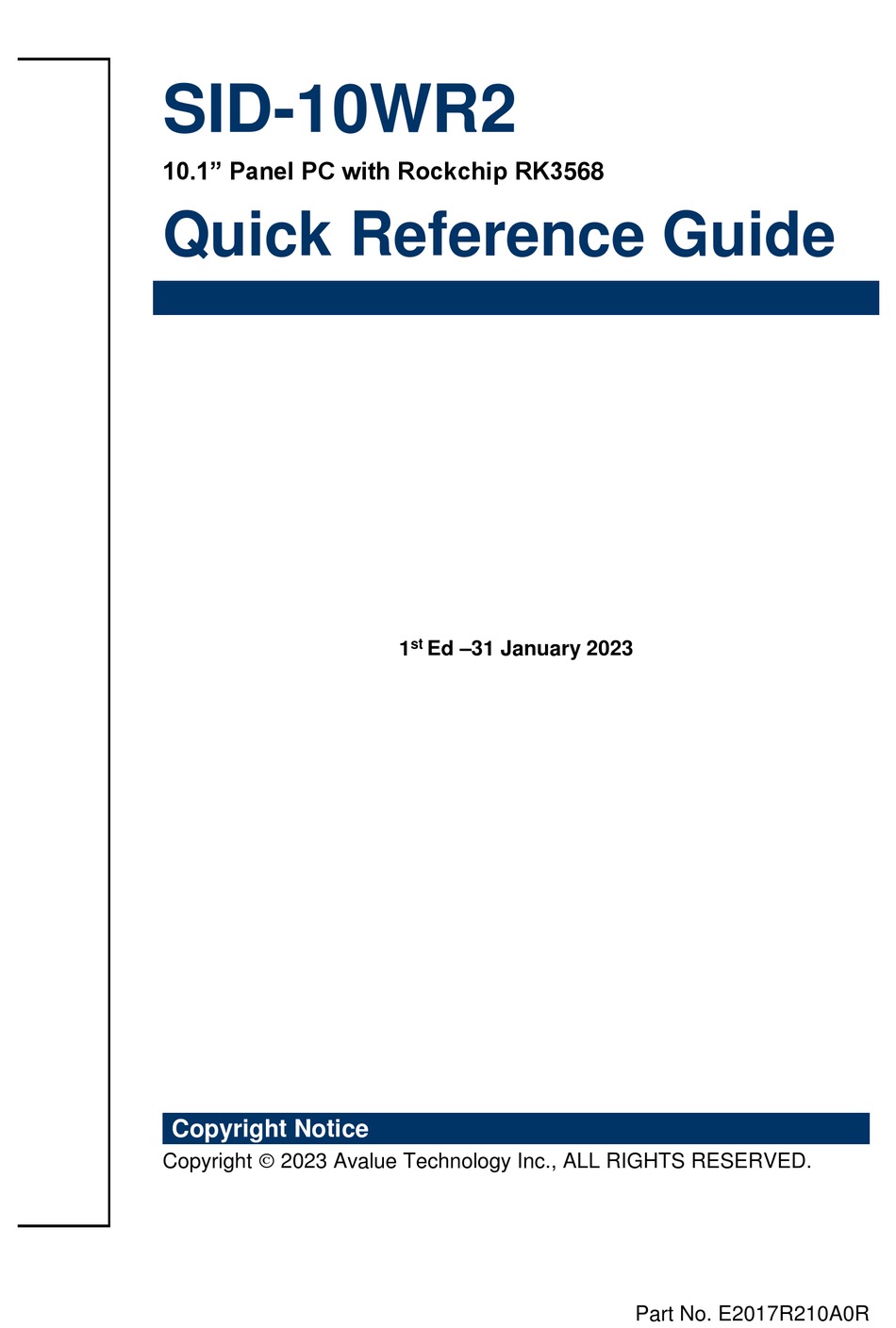

SID-10WR2 10.1” Panel PC with Rockchip RK3568 Quick Reference Guide Ed –31 January 2023 Copyright Notice Copyright 2023 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017R210A0R...
Page 2
(2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-10WR2 Quick Reference Guide...
Page 3
Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
Page 4
Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-10WR2 Panel PC 1 x AC 60W Adapter ...
JLAN1: 10/100/1000 Lan port_90D Audio Port JHP1: Headphone Jack_90D Reset button Reset button_90D COM Port 1 x DB9 for RS-232 Mechanical Power Type 12V~24V wide voltage DC input Power Connector DC jack Type Dimension 258.8x182.8x41.1 mm SID-10WR2 Quick Reference Guide...
Page 8
4. Test Axis : X,Y and Z axis 5. 30 min. per each axis 6. IEC 60068-2-64 Test:Fh 1. PSD: 0.026G²/Hz , 2.16 Grms Mechanical Shock 2. Non-operation mode Test 3. Test Frequency : 5-500Hz 8 SID-10WR2 Quick Reference Guide...
Page 9
7. Reference IEC 60068-2-29 Testing procedures Test Eb : Bump Test Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Storage -20°C ~ 60°C (-4°F ~ 140°F) Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Note: Specifications are subject to change without notice. SID-10WR2 Quick Reference Guide...
Audio line-out connector Head phone jack HDMI HDMI connector 2 x USB3.0 connector USB type A USB3.0 DCIN DC power-in connector DC jack RJ-45 Ethernet connector Serial port connector DB-9 male connector RESET Reset button 10 SID-10WR2 Quick Reference Guide...
SID-10WR2 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SID-10WR2 Quick Reference Guide...
