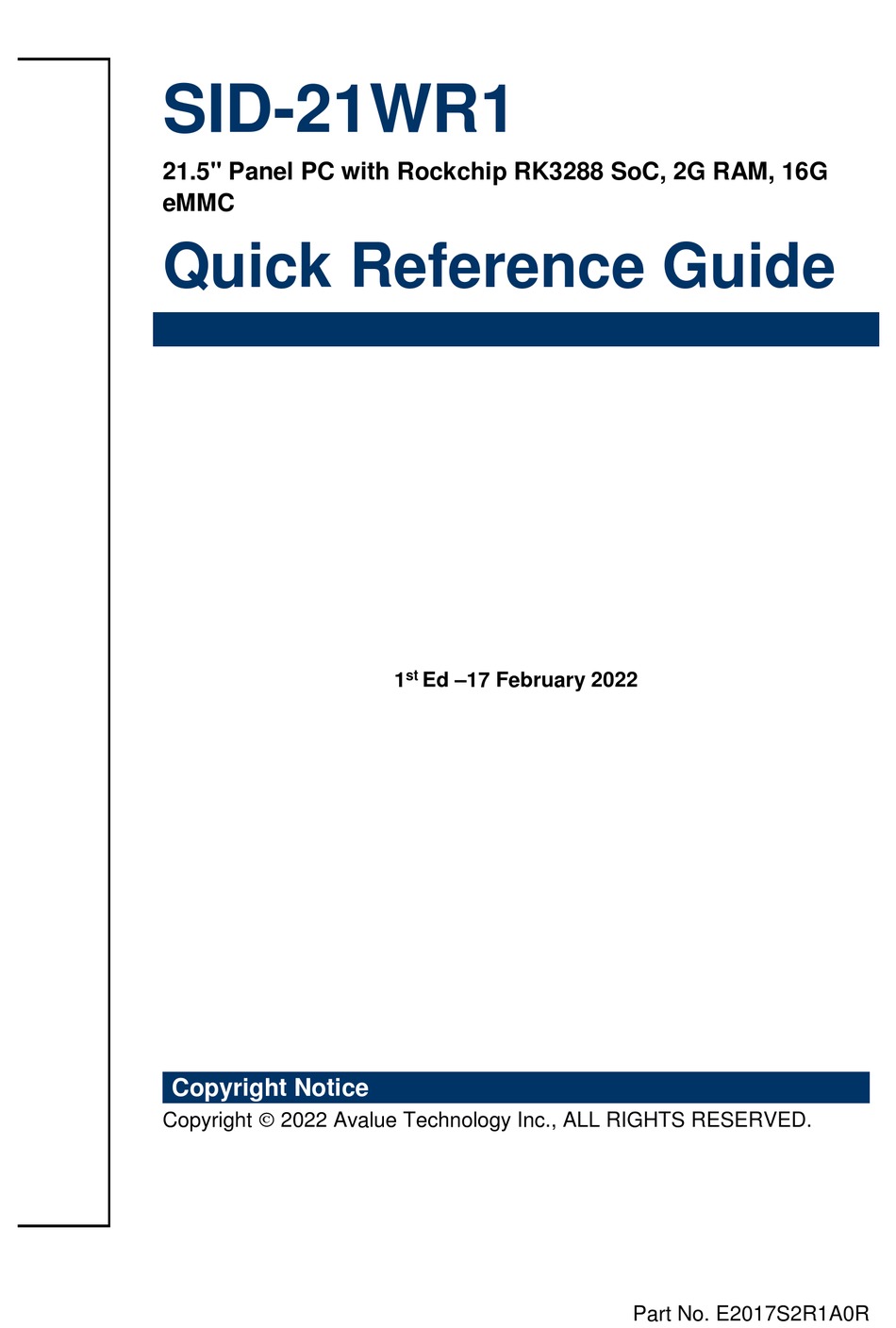

- Page 1 SID-21WR1 21.5" Panel PC with Rockchip RK3288 SoC, 2G RAM, 16G eMMC Quick Reference Guide Ed –17 February 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S2R1A0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-21WR1 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
System Specifications ................... 7 System Overview ....................9 1.4.1 I/O View ............................9 System Dimensions ..................... 10 Hardware Configuration ................... 11 SID-21WR1 connector mapping ................12 2.1.1 Serial port connector (COM) ...................... 12 2.1.2 RJ-45 Ethernet connector (LAN) ....................12 2.1.3 HDMI connector (HDMI) ...................... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-21WR1 Panel PC 1 x AC/DC adapter 12V/5A 90 Screw Type ... -
Page 7: System Specifications
Power Requirement/Mechanical Power Type 12V~24V wide voltage DC input Power Connector 2.5mm DC-in jack Type Dimension 509 x 304.8 x 51.3 mm Weight 7.2 kg Color Black Fanless OS Support Android 8.1 , Debian 9 (TBD) SID-21WR1 Quick Reference Guide... - Page 8 Test high: 96.5cm (Based on product weight) Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Note: Specifications are subject to change without notice. 8 SID-21WR1 Quick Reference Guide...
-
Page 9: System Overview
Line out Audio line-out connector Head phone jack HDMI HDMI connector HDMI type A USB2.0 2 x USB2.0 connector USB type A DC power-in connector DC jack DCIN RJ-45 Ethernet connector Serial port connector DB-9 male connector SID-21WR1 Quick Reference Guide... -
Page 10: System Dimensions
SID-21WR1 1.5 System Dimensions (Unit: mm) 10 SID-21WR1 Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw SID-21WR1 Quick Reference Guide 11... -
Page 12: Sid-21Wr1 Connector Mapping
SID-21WR1 2.1 SID-21WR1 connector mapping 2.1.1 Serial port connector (COM) Signal PIN PIN Signal 2.1.2 RJ-45 Ethernet connector (LAN) Signal LAN_MDI0+ LAN_MDI0- LAN_MDI1+ LAN_MDI2+ LAN_MDI2- LAN_MDI1- LAN_MDI3+ LAN_MDI3- 12 SID-21WR1 Quick Reference Guide... -
Page 13: Hdmi Connector (Hdmi)
Quick Reference Guide 2.1.3 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 2.1.4 USB2.0 connector (USB2.0) Signal Data- Data+ SID-21WR1 Quick Reference Guide 13...
