DPS1000
Copyright © 2023 Barfield Inc. All Rights Reserved.

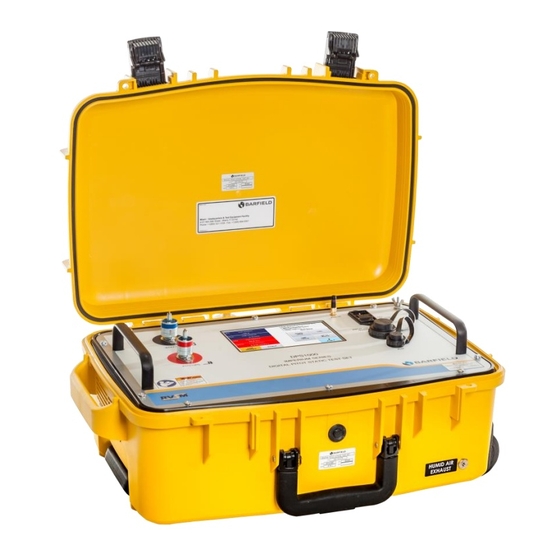

RVSM Pitot-Static Test Set
USER INSTRUCTION MANUAL
M/N: DPS1000, P/N: 101-01175
Doc. P/N: 56-101-01175
Revision P
March 9, 2023
_______________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPS1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for barfield DPS1000

Summary of Contents for barfield DPS1000

  • Page 1 DPS1000 RVSM Pitot-Static Test Set USER INSTRUCTION MANUAL M/N: DPS1000, P/N: 101-01175 Doc. P/N: 56-101-01175 Revision P March 9, 2023 _______________________________ Copyright © 2023 Barfield Inc. All Rights Reserved.
  • Page 2 Barfield Inc. Confidential and Proprietary Information. This document and all the information contained herein is the sole property of Barfield Inc. No intellectual property rights are granted by the delivery of this document or the disclosure of its content.
  • Page 3 SAFETY Before using this instrument, the operator should read and understand all the related data. This includes the applicable local safety procedures, this publication, and the instructions for the accessories/options/equipment you are using it with and the system or components under test. This equipment was designed to be safe when used as per the procedures of this Instruction Manual.
  • Page 4 CAUTION: Failure to follow procedures as written could produce a negative airspeed condition capable of damaging the aircraft instruments. MARKING AND SYMBOLS This instrument meets the relevant European safety directives . The (**) instrument carries the CE mark Wi-Fi disabled for EMC. (**) Units with MOD D installed are CE Compliant.
  • Page 5 Barfield in order to validate the warranty and to ensure that you will receive updated information when published. You MUST have your name and address on file at Barfield as a registered user of this equipment to be able to obtain the service covered by the warranty.
  • Page 6 In case of malfunction, contact the manufacturer to obtain the list of approved repair facilities worldwide, ensuring that this equipment will be serviced using proper procedures and certified instruments. BARFIELD PRODUCT SUPPORT DIVISION Telephone (305) 894-5400 Shipping Address: (800) 321-1039 Barfield, Inc.

  • Page 7: Revision Record

    ECO # REV. DATE DESCRIPTION OF CHANGE May 28, 2014 Initial Release. 260-01041 October 15, 2014 Update Barfield logo and warranty. 260-01092 March 18, 2015 Completely Revised. 260-01118 August 11, 2015 TOC Page vii, Chapter #s Pages 54 & 55.
  • Page 8 REVISION RECORD (CONTINUED) REV. ECO# REV. DATE DESCRIPTION OF CHANGE Reformatting & grammar revisions; removed Figure 36 (duplicate); Addition to Introduction: 4. App Information and modified 5. Software; 260-01270 September 2, 2020 Addition to Table: Key to Figure 11; Addition to Chapter 4, 11: Aircraft Testing section;...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS Safety / Warnings / Cautions Symbols Attention / Contact Information Maintenance Revision Record Table of Contents List of Figures List of Tables PAGE INTRODUCTION ........................ 1 1. PUBLICATION BREAKDOWN ..................1 2. INFORMATION PROVIDED WITH THE TEST SET ............1 3.
  • Page 10 APPENDIX F: CABIN PRESSURE MODE ..............80 1. CABIN PRESSURE MODE ................... 80 APPENDIX G: IBF SYSTEM MODE ................88 1. IBF SYSTEM MODE ..................... 88 APPENDIX H: FIELD FIRMWARE UPDATE PROCEDURE VIA USB & BARFIELD ADTS APP ........................93 56-101-01175 Revision P Page | x...

  • Page 11: List Of Figures

    Figure 7 Power Supply Cable ....................17 Figure 8 Do Not Obstruct Vents ....................17 Figure 9 Humid Air Exhaust ....................... 17 Figure 10 DPS1000 Pressure Connections ................18 Figure 11 O-Flared Ports ......................18 Figure 12 DPS1000 Front Panel ....................19 Figure 13 Instruction Manual, P/N 56-101-01175 ...............
  • Page 12 Figure 62 Password Request Screen ..................74 Figure 63 Connect screen with selected unit displayed .............. 75 Figure 64 Information Pop-up Message (iOS) ................75 Figure 65 DPS1000/1811NG Wi-Fi Selected ................76 Figure 66 Password Request Screen ..................76 Figure 67 Select Disconnect ...................... 77 Figure 68 Disconnect Remote button ..................
  • Page 13 LIST OF TABLES PAGE Table 1 Physical Characteristics ....................6 Table 2 Environmental ......................... 6 Table 3 Conformity ........................6 Table 4 MOD “B” Performance Accuracy ..................7 Table 5 MOD “B” Pressure Units Specifications ................9 Table 6 Non-MOD “B” Performance Accuracy ................10 Table 7 Non-MOD “B”...

  • Page 14: Introduction

    INTRODUCTION 1. PUBLICATION BREAKDOWN This user instruction manual establishes the standards of operation for the DPS1000, Pitot- Static Test Set. Its purpose is to provide enough information for the personnel unfamiliar with this unit to understand it, identify its parts, and operate it in accordance with proper procedures, operating techniques, precautions, and limitations.

  • Page 15: Recertification

    B. The Owner's Warranty Registration card (refer to Figure 2) is to be completed by the owner and returned to Barfield, Inc. within ten (10) days of purchase to ensure automatic update of printed matter and validation of warranty. To register your unit, please visit https://www.barfieldinc.com/warranty_registration...

  • Page 16: Mobile Device's App Information

    4. MOBILE DEVICE’S APP INFORMATION Visit the Apple App Store or Google Play App Store to download the free application, “Barfield ADTS,” onto your iOS or Android mobile device (not supplied). You can also check Barfield’s website to be redirected to the app store at: https://www.barfieldinc.com/en/services-and-offers/ground-support-test-equipment...

  • Page 17: Test Set Equivalent

    6. TEST SET EQUIVALENT The Barfield DPS1000, Reduced Vertical Separation Minimum (RVSM) rated Pitot-Static Test Set, is a suitable substitute for the Barfield 1811D, 1811G, 1811H, 1811HA, 1811NG, DPS300, DPS350, DPS400, DPS450 and DPS500 Pitot Static Test Sets for all aircraft applications that fall within the range of 55,000 feet altitude, 6,000 feet/minute rate of climb and 650 knots airspeed.

  • Page 18: Figure 3 Limited 2 Year Warranty

    BARFIELD or an authorized distributor that this product will be free from defects in material and workmanship under normal use and service for two years after date of purchase. BARFIELD reserves the right, before having any obligation under this limited warranty, to inspect the damaged BARFIELD product, and all costs of shipping the DPS1000/1811NG product to BARFIELD for inspection shall be borne solely by the Purchaser.

  • Page 19: Chapter 1: General

    CHAPTER 1: GENERAL 1. INTENDED USE A. The Barfield DPS1000 Imperium Series (P/N 101-01175) is a self-contained flight line Pitot-Static Test Set. The Test Set provides complete measurement and pneumatic control for performing leak testing, functional tests of air data instruments, components, and systems.

  • Page 20: Table 4 Mod "B" Performance Accuracy

    D. Performance AERONAUTICAL MOD “B” RtCAS Ps Channel Pt Channel Mach (Rate of CAS) (Altitude) (Rate of Climb) (Calibrated Airspeed) Units Feet ft/min knots (kts) kts/min Operating 0 to 20,000 (*3) (*2) -2,000 to 53,000 0 to 650 50 to 600 0 to 2.8 Range (*1)
  • Page 21 MODs, and provide firmware updates. (*7) Note : This tolerance represents the DPS1000 internal leak rate with no hoses attached to the Static (Ps) or Pitot (Pt) ports. If configured with AN4 ports, the AN4 ports are capped.

  • Page 22: Table 5 Mod "B" Pressure Units Specifications

    (*5) Note : This tolerance represents the stability over a 12-month period. Barfield has confirmed “typ” stability performance to be the expected performance that is experienced. If this level of accuracy performance is required, the customer...

  • Page 23: Table 6 Non-Mod "B" Performance Accuracy

    AERONAUTICAL NON-MOD “B” Ps Channel Pt Channel RtCAS Mach (Rate of Change) Units Feet ft/min knots (kts) kts/min Operating 0 to 20,000 (*2) -2,000 to 55,000 0 to 650 50 to 600 0 to 2.8 Range (*1) 0 to 6,000 (*3) Accuracy 0.01% FS...

  • Page 24: Table 7 Non-Mod "B" Pressure Units Specifications

    (*7) Note : This tolerance represents the DPS1000 internal leak rate with no hoses attached to the Static (Ps) or Pitot (Pt). If configured with AN4 ports, the AN4 ports are capped. PRESSURE UNITS NON-MOD “B” RtQc...

  • Page 25: Table 8 Display Units

    (*4) Note : Specification are based on empirical results obtained from the evaluation of units received back for annual recertification. However, if the application requires this level of accuracy, historic proof of stability should be maintained for proof of accuracy. (*5) Note : This tolerance represents the stability over a 12-month period.

  • Page 26: Instructions For Use

    3. INSTRUCTIONS FOR USE A. With the Barfield DPS1000 Static (Ps) and Pitot (Pt) ports connected via the hoses (included) and mating aircraft adapters (not included) to their respective ports on the aircraft, the user is able to enter pressures or equivalent aeronautical values using the Test Set’s touch screen input display to drive the aircraft system to the required points of...

  • Page 27: Chapter 2: Ratings

    CHAPTER 2: RATINGS 1. SUPPLY VOLTAGES A. The Test Set may be powered from either 100 to 120 VAC at 50 or 60 Hz, 400 VA, or from 200 to 240 VAC at 50 or 60 Hz, 400 VA. 2. CONNECTION DESCRIPTION A.

  • Page 28: Chapter 3: Installation

    The user should take inventory of the package contents to insure the following items are there: 1. DPS1000 Pitot Static Test Set, P/N 101-01175. 2. Hose kit P/N 115-00632 composed of: a) 1 each Blue 25 ft Hose with quick disconnect and 1 tethered plug for Static (Ps) port connection, P/N 115-00630.

  • Page 29: Grounding (Earthing)

    B. The DPS1000 chassis may be grounded to the aircraft or instrument under test using the Ground stud located in the upper right corner of the panel depicted as item 5 in Figure 11.

  • Page 30: Electrical Connections

    Figure 8 Do Not Obstruct Vents B. Drainage The DPS1000 has a port located on the front of the enclosure. It is pictured and labeled as shown in Figure 9 and is used to exhaust humid air which is produced by the internal pressure pump.

  • Page 31: Pneumatic Pressure Connections

    2. Static (Ps) – P/N B-QC4-D-2PMK2FV Note: OPT A includes AN4 fittings in both ports Pt (pitot) and Ps (static), P/N 284-00013 Figure 10 DPS1000 Pressure Connections B. Blanking Caps (Used on OPT A only) When not in use, the panel mounted blanking caps should be fitted to the ports to prevent the introduction of any foreign matter.

  • Page 32: Chapter 4: Operation

    CHAPTER 4: OPERATION 1. OPERATING CONTROLS A. The DPS1000 front panel switches and controls are depicted in Figure 12. Figure 12 DPS1000 Front Panel Key to Figure 12 Pitot (Pt) Pressure Port Connect to Aircraft Pitot system. This is also referred to as the Pt Port and Total Pressure port.

  • Page 33: Options

    OEM use only. (*1) Note : When a remote iOS or Android device is connected to DPS1000, the touch screen on the DPS1000 is disabled except for the “Disconnect Remote” and “Local UI: enable” buttons (refer to APPENDIX E: WI-FI CONNECTION PROCEDURE).

  • Page 34: Figure 13 Instruction Manual, P/N 56-101-01175

    3. Hose Kit, P/N 115-00632 (refer to Figure 15). 4. Wi-Fi Antenna, P/N 126-00001 (refer to Figure 16). 5. Carrying Bag, P/N 195-00020 (refer to Figure 17). 6. AN4 Caps with Lanyard, P/N 176-00001 (OPT A) (refer to Figure 18). Figure 13 Instruction Manual, P/N 56-101-01175 Figure 14 Electrical Cable, P/N AE9887-ND P/N 115-00632 (Standard Configuration)

  • Page 35: Figure 16 Antenna, P/N 126-00001

    B. Items not included 1. Ruggedized shipping case, Barfield P/N 194-00073 (refer to Figure 6). 2. Nav-Aids Pitot Static Adapters – Contact Barfield with your aircraft requirements. 3. Wi-Fi enabled tablet – either Android or IOS device. 4. Wi-Fi Application – available as free download from either Google Play Store or Apple App Store.

  • Page 36: Preparation

    Pitot (Pt) and Static (Ps) hoses. Each Test Set is completely calibrated and tested before shipment. However, to ensure the integrity of the tests, the DPS1000 should be leak checked before each use. To help automate this process, use the predefined ATP Test Set only.

  • Page 37: Operating Modes

    6. OPERATING MODES A. The DPS1000 has two pneumatic control modes of operation, (1) the default mode, 2- channel (Static and Pitot) mode and (2) 1-channel, Pt-Only mode, which the user can select by following this Menu sequence: Main Menu, Page 2, Additional Functions, Control Mode.

  • Page 38: Test Set Configuration Status Display

    D. Below are examples of the 2 modes: 1. Default: Aeronautical 2-Channel (Dual Ps, Pt) (refer to Figure 20). 2. Aeronautical 1-Channel (Pt Only) (refer to Figure 21). Figure 20 Default 2-Channel (Dual Ps, Pt) mode Figure 21 Optional 1-Channel (Pt Only) Mode Note: Please refer to APPENDIX D: MENU NAVIGATION for the complete menu navigation.

  • Page 39: Figure 22 Test Set Configuration Information Displayed

    D. Auto Leak Recovery: Enabled or Disabled Note: The Configuration Status area is an active touch zone the user can navigate by either pressing the top right box or selecting this Menu sequence: Main Menu, Page 2, Setup 1 (refer to Figure 22). Step 1 Touch Configuration...

  • Page 40: User Interface Menu And Display

    8. USER INTERFACE MENU AND DISPLAY A. The User Interface (UI) was designed and structured to provide the user/operator with an efficient and intuitive man-machine interface. 1. The left-half of the screen provides all the measurement and control display screens. 2.

  • Page 41: Figure 24 Control Mode

    Figure 24 Control Mode Note: Regarding the UI Menu structure, the menu screen above is considered the top level “Root Menu.” Note: Throughout this section, while explaining all the UI related functions, the soft- key (touch screen) sequence will be listed based on starting at the top level “Main Menu”...

  • Page 42: Figure 26 Hold Mode (Select "Resume")

    Figure 26 Hold Mode (Select “Resume”) Note: The Hold feature does not place a STOP to the ALT and CAS values displayed. Since the ALT and CAS values are in transition with some ROC and RtCAS, the PCM controller requires some response time to reach the new temporary Target.

  • Page 43: Figure 28 Display Setup: 4-Parameter Format

    B. Display Setup – Configuring display format The Display Setup allows the user to configure the display as a 2 or 4-parameter format (refer to Figure 28 and Figure 29). While operating in Aeronautical mode for example, the 4-parameter format will allow ALT, ROC, CAS and MACH or ALT, ROC, CAS, and RtCAS to be displayed.

  • Page 44: Figure 30 Display Units For Aeronautical Mode

    Figure 30 Display Units for Aeronautical Mode Figure 31 Display Units for Pressure Units Mode D. Leak Testing – There are two types of leak tests supported on the Test Set: (1) the traditional leak testing using the Leak Rate Timer and (2) the Automatic Test Process (ATP) Leak Test Profiles (refer to Figure 32).

  • Page 45: Figure 33 Leak Rate Timer Results

    1. Leak Rate Timer – this is the traditional leak testing that allows the user to set the desired target values of ALT and CAS. Once the Test Set achieves those target values, the user selects the following Menu sequence in Leak Measure mode: 2.

  • Page 46: Figure 34 Select Atp Leak Test Profile

    Figure 34 Select ATP Leak Test Profile The ATP Leak Test provides the following profile options (refer to Figure 35 and Figure 36): a) ALR: “Auto Leak Recover” can be “(X)” selected/deselected. b) Ambient Comp: Can be “(X)” select/deselected. Ambient Comp compensates for local ambient barometric pressure to ensure for example that a 5,000 ft.

  • Page 47: Figure 35 Atp Leak Test: Parameter Profile Screen

    Figure 35 ATP Leak Test: Parameter Profile Screen Figure 36 ATP Leak Test Results Screen E. Go To Ground: This function will take the Test Set back to Ground (ambient barometric pressure altitude) and CAS = 0 Kts. Go To Ground can be selected while operating in Leak Measure or Control mode (refer to Figure 37).

  • Page 48: Figure 37 Go To Ground Confirm Screen

    Main Menu: Go To Ground (refer to Figure 37) Figure 37 Go to Ground Confirm Screen 1. The user can select “Go To Ground” from the Main menu, while in either Leak Measure or Control mode. At the conclusion of Go To Ground (refer to Figure 38), the Test Set will perform an AutoZero function to trim off any small Qc pressure offset that may have crept into the Qc transducer typically due to thermal component (Test Set Warming or cooling).

  • Page 49: Figure 39 Setup 1

    3. After a Go To Ground function is performed, the Test Set will remain vented to ambient until “Ok” is selected. Note: Selecting “Ok” results in the internal ambient valve closing. The unit is now a sealed system, no longer vented to ambient. Under these conditions it is normal for the displayed ALT and CAS values to be affected over time by thermal conditions changing within the Test Set.

  • Page 50: Figure 40 Altitude Correction Screen

    Figure 40 Altitude Correction Screen Figure 41 Altitude Correction On-Aircraft Figure 42 Altitude Correction Keypad 56-101-01175 Revision P Page | 37...

  • Page 51: Figure 43 Test Set Configuration, Updated Altitude Correction

    At the conclusion of the Go To Ground the Test Set will leave the Static (Ps) port vented to ambient while driving the Pitot (Pt) port to the Target pressure specified by the user. Note: The DPS1000 always powers up into the default: 2-Channel (Dual Ps, Pt) mode. Figure 44 Setup 1: Control Mode(s) 6.

  • Page 52: Figure 45 Setup 2: Selecting Limit File To Edit

    G. Setup 2 (PIN Required) The Setup 2 menu is PIN protected to provide some level of security to the activities completed under this menu structure. After entering the user PIN code (default code is 123456), the following screen (refer to Figure 45) will appear: Figure 45 Setup 2: Selecting Limit File to Edit 1.

  • Page 53: Figure 46 Setup 2: Edit Custom Limits

    Figure 46 Setup 2: Edit Custom Limits c) Delete Custom Limits Allows user to delete custom limit profile(s) (refer to Figure 47). Note: Before deleting a user-created “custom limit profile,” the user needs to ensure that it is not selected at the time of deletion. The user must select a different limit (“default”...

  • Page 54: Figure 47 Delete Custom Limits

    Step 1 Touch “Limits Create/Edit/Delete.” Step 2 Touch “Delete Custom Limits.” Step 3 Ensure “Limits” is different from “custom limits” created. Step 4 Select “custom Step 5 limits” created. Touch “delete” to erase the “custom limits” created. Figure 47 Delete Custom Limits 2.

  • Page 55: Figure 48 Backlight Adjustment

    3. Firmware Update: refer to APPENDIX E: WI-FI CONNECTION PROCEDURE. a) Flash - HUIM from USB: Update HUIM firmware from dpsx file located on the USB flash drive. b) Flash - PCM from USB: Update PCM firmware from controller.hex file located on the USB flash drive.

  • Page 56: Test Set Operation

    OFF position prior to connecting the AC power cable. 2. As a standard practice and under normal circumstances it is recommended that the DPS1000 not have hoses connected prior to initialization. This is not a requirement just an additional precaution.

  • Page 57: Figure 49 Initialization Display

    (~ 2 times/second) with the latest pressure measurement results. In Leak Measure mode, the pneumatic pressure pump, vacuum pump and four proportional control values (PvPs_V, PvPs_P, PvPt_V, PvPt_P, refer to APPENDIX C: DPS1000 INTERNAL PNEUMATIC DIAGRAM) are off. When the Display Setup is configured for Aeronautical mode, the Test Set has some additional features and safeguards such as ALR and Leak Test ATP.

  • Page 58: Test Set Leak Test

    6,000 ft/min or higher. When the DPS1000 transitions into Control mode, the display indicates “Wait Resuming Control.” During this transition period (~ 4 seconds) the PCM is responsible for establishing the same controlled pressures as last measured on the Static (Ps) and Pitot (Pt) ports while in Leak Measure mode.

  • Page 59: Figure 50 Leak Testing Menu(S)

    4. Leak Testing: There are two methods available to perform Leak Testing using the Test Set (refer to Figure 50). Figure 50 Leak Testing Menu(s) a) Method (1) Leak Rate Timer: This traditional method uses the Leak Rate Timer where the user first establishes a given CAS and ALT and uses the Leak Rate Timer to measure the Leak Rate.

  • Page 60: Figure 52 Leak Test Profile: Parameters Screen

    Figure 52 Leak Test Profile: Parameters Screen 5. From the UI main menu, touch to select “Leak Testing.” A panel appears with two options: “Leak Rate Timer and ATP Leak Test Profiles (refer to Figure 50). a) Touch “ATP Leak Test Profiles.” The ATP Leak Test Profiles screen appears with three options.

  • Page 61: Figure 53 Leak Test Timer Screen

    B. STATIC and PITOT Test Set Leak Test (Test Set and hoses only) • Confirm hoses connected to both Static (Ps) and Pitot (Pt) ports on the Test Set – hand- tighten only. • Confirm the other end of each hose is sealed with an AN4 plug – hand-tighten only. •...

  • Page 62: Figure 54 Leak Rate Time: Unit Safe At Ground

    Figure 54 Leak Rate Time: Unit Safe at Ground The Test Set will automatically switch into Leak Measure mode with the Static (Ps) and Pitot (Pt) ports vented to ambient and the pumps will be powered off. m) This completes leak testing the Static (Ps) channel using Method 1 (Leak Rate Timer). 2.

  • Page 63: Aircraft Testing

    Note: The ports on the Test Set and mating hoses are color-coded to help prevent the accidental crossing of Static (Ps) and Pitot (Ps) hoses. 2. Using a Barfield Inc. universal adapter or another manufacturer’s custom aircraft pitot adapter, connect the Pitot (red) port hose to the aircraft pitot system as referenced in the AMM.
  • Page 64 4. Set the aircraft altimeter baro setting to 29.92 inHg (1013.25 mbar). 5. View and select the appropriate Limits on the DPS1000 for the Aircraft / Instruments to be tested. 6. If necessary, (from the Main Menu) select Display Setup to configure display for the Aeronautical display parameters required.

  • Page 65: Figure 56 Unit Safe At Ground

    1. For a detailed explanation of the ATP Leak Test capability and parameter field descriptions, reference section B.2. Using Method (2) ATP Leak Test on page 49. 2. Verify the DPS1000 including hoses and the Aircraft Pitot System Leak Test and Static System Leak Tests have been completed.
  • Page 66 Read message, select “Ok.” The “ALT Correction” numbered keypad panel opens e) Enter Altitude correction value. The height difference between the aircraft system or instrument under test and the DPS1000 Test Set. 7. Using the AMM or CMM, select the appropriate Leak Test ATP Leak Test Profile.

  • Page 67: Figure 57 Leak Test Results

    Figure 57 Leak Test Results f) Record the leak test results. g) If additional leak test at other altitudes or airspeeds is required, select the appropriate ATP Leak Test profile, edit the values, and repeat steps 8 and 9 above for any additional test points.
  • Page 68 Note: While testing the Static (Ps) system, the Target value for CAS should remain at 0 kts. While testing various altitude levels, the Test Set will maintain 0 kts (Qc = 0.000 inHg pressure differential) between the Static (Ps) and Pitot (Pt) ports which will ensure the ASI is not damaged.
  • Page 69 E. Testing the Aircraft Pitot System CAUTION: Observe all safety precautions detailed in the AMM and or CMM. CAUTION: The AMM or CMM procedure should always be recognized as the primary authority and this manual should be recognized as a secondary aide. As such the primary objective of this manual is to provide instruction relevant to general Test Set operation while the AMM or CMM dictates the specific test process, sequences, and values.
  • Page 70 7. If necessary, change the displayed parameters on the Test Set to those required. a) From the main menu, select “Display Setup.” b) On the “Display Setup” screen, select the desired aeronautical parameters. 8. If necessary, different units can be selected by touching “Units” from the Main Menu. 9.
  • Page 71 1. Verify the Test Set is powered ON. Ensure Initialization has completed, the system is safe at Ground and the display indicates “Vented.” a) If required, select Go To Ground and wait for the Test Set to indicate “Unit Safe at Ground.”...
  • Page 72 14. Set the ALT Target values and CAS Target values as specified by the AMM and CMM procedures. 15. Continue with the next ALT Target value or CAS Target value as required. a) For test procedures requiring small step changes in ALT or CAS, there is a “Nudge”...

  • Page 73: Engine Pressure Ratio (Epr) Test

    H. Airspeed Switch Test 1. If required, from the Main Menu, select Display Setup and select “ALT, ROC, CAS, MACH” display format. 2. Select Control mode. 3. Enter the Target CAS value below the operating limits of the switch. Note: For an airspeed switch with a 140 kts ± 2 kts trip point, start with a CAS Target of ~136 kts.

  • Page 74: Table 9 Engine Pressure Ratio Test Table

    Enter the first Altitude Target value. d) Enter the first Airspeed Target value. e) After the DPS1000 achieves both Target values, confirm the EPR Ratio reading. f) Repeat the process by entering Both Target values for all increments of test.

  • Page 75: Shutdown Procedure

    c) Enter the first Static (PT2) pressure Target value. d) Enter the first Pitot (PT7) pressure Target value or the first EPR Target. e) After the Test Set achieves both the Target values confirm the EPR Ratio reading. f) Repeat the process by entering both Target values for all increments of test. 3.
  • Page 76 4. Switch power OFF. 5. Disconnect the Static (Ps) and Pitot (Pt) hoses from the aircraft ports and or adapters. 6. Disconnect the Static (Ps) and Pitot (Pt) hoses from the tester ports. 56-101-01175 Revision P Page | 63...

  • Page 77: Chapter 5: Receiving, Shipping, And Storage

    CHAPTER 5: RECEIVING, SHIPPING, AND STORAGE 1. RECEIVING No special unpacking procedures are necessary. It is recommended that the factory-shipping container and packing materials be retained should it become necessary to re-ship the Test Set for a variety of reasons, including O.E.M. recertification. It is also recommended that the Test Set undergoes a leak check upon receipt and its carrying case should be carefully inspected for damage.

  • Page 78: Chapter 6: Maintenance

    CAUTION: RECERTIFICATION BY A CALIBRATION/REPAIR SHOP NOT POSSESSING THE NECESSARY TECHNICAL KNOWLEDGE, DOCUMENTATION, SPECIAL TEST EQUIPMENT, TOOLING, AND STANDARDS WILL ADVERSELY AFFECT THE ACCURACY/CAPABILITY OF THE DPS1000 FOR TESTING THE AIRCRAFT, INCLUDING THE DEMANDING REDUCED VERTICAL SEPARATION MINIMUM (RVSM) ACCURACY REQUIREMENT. 56-101-01175 Revision P...

  • Page 79: Appendix A: Abbreviations & Glossary

    APPENDIX A: ABBREVIATIONS & GLOSSARY Absolute Altitude (ft or m). Auto Leak Recover Aircraft Maintenance Manual Authorized Procedure Application Airspeed Indicator Automatic Test Process Calibrated Air Speed (kts or km/h) Component Maintenance Manual Engine Pressure Ratio Degrees Fahrenheit Degrees Celsius Foot Gauge Hour...
  • Page 80 Personal Identification Number Static Pressure Pounds per square inch Pitot Pressure PsRt Ps Rate, rate of Ps pressure change PtRt Pt rate, rate of Pt pressure change Differential pressure (Qc = Pt - Ps) Local atmospheric pressure Barometric pressure at sea level Rate Of Climb in units of (ft/min or m/min) Rate RtCAS...

  • Page 81: Appendix B: Operating Limits

    APPENDIX B: OPERATING LIMITS The DPS1000 comes with 2 predefined sets of operating limits, the (1) default limits profile and the (2) max limits profile. The unit also includes limits files for each of the three operating modes: (1) Aeronautical, (2) Pressure units and (3) EPR.

  • Page 82: Table 11 Aeronautical Limits Profile (Max)

    AERONAUTICAL LIMITS PROFILE (MAX) Parameters Limits Comments ALT Min -2,000 ft { -610 m } Minimum Altitude ALT Max 55,000 ft { 16,765 m } ROC Min 100 ft/min { 30 m/min} ROC Max 20,000 ft/min {6,000 m/min } ROC – (default) 3,000 ft/min {914 m/min} CAS Min CAS Max...

  • Page 83: Table 13 Pressure Limits Profile (Max)

    PRESSURE LIMITS PROFILE (MAX) Parameters Limits Comments Ps Min 2.693 inHg Ps Minimum Pressure Ps Max 38.000 inHg Ps Maximum Pressure Qc Min 0.000 inHg Qc Minimum Pressure Qc Max 40.000 inHg Qc Maximum Pressure Pt Min 2.693 inHg Pt Minimum Pressure Pt Max 78.000 inHg Pt Maximum Pressure...

  • Page 84: Appendix C: Dps1000 Internal Pneumatic Diagram

    APPENDIX C: DPS1000 INTERNAL PNEUMATIC DIAGRAM 56-101-01175 Revision P Page | 71...

  • Page 85: Appendix D: Menu Navigation

    APPENDIX D: MENU NAVIGATION 56-101-01175 Revision P Page | 69...

  • Page 86: Appendix E: Wi-Fi Connection Procedure

    APPENDIX E: WI-FI CONNECTION PROCEDURE The DPS1000 and 1811NG Test Sets can be controlled using a Wi-Fi enabled Android or iOS tablet or cellphone (not supplied) as a wireless remote-control device. Download the free Barfield app from the Google Play Store or Apple App Store - search for “Barfield ADTS.”...

  • Page 87: Figure 61 Information Pop-Up Message

    8. If connecting to your android device for the first time, a password request will trigger (refer to Figure 62). Figure 62 Password Request Screen 9. Type in default password barfield (all lowercase). 10. Press “CONNECT.” 56-101-01175 Revision P Page | 74...

  • Page 88: Establishing Wi-Fi Connection For Ios Devices

    1. Launch the Barfield ADTS app from your device. 2. Press “Connect” (refer to Figure 60). 3. If you are not connected to a DPS1000/1811NG Test Set Wi-Fi, complete steps A.4- A.11 below. If you are connected, continue onto step A.12.

  • Page 89: Figure 65 Dps1000/1811Ng Wi-Fi Selected

    7. Connect to available DPS1000/1811NG Wi-Fi connection (refer to Figure 65). Figure 65 DPS1000/1811NG Wi-Fi Selected 8. If you are connecting your iOS device to the DPS1000/1811NG Wi-Fi for the first time, a password request will trigger (refer to Figure 66).

  • Page 90: Disconnection Wi-Fi Connection For Android & Ios Devices

    9. Type in default password barfield (all lowercase). 10. Press “Join” on your iOS device. 11. Return to the Barfield ADTS App. Note: The selected DPS1000/1811NG Wi-Fi will now be displayed on the screen (refer to Figure 63). 12. Press “Connect.”...

  • Page 91: Figure 68 Disconnect Remote Button

    Figure 68 Disconnect Remote button B. Enabling 1811NG Touchscreen Note: By default, while the Test Set is connected to the Android device, the DPS1000’s touch screen is disabled. Only the “Disconnect Remote” and “Local UI: enable” buttons are enabled. 1. To enable the DPS1000’s touchscreen, press the “Local UI: enable” on the Test Set (refer to Figure 69).

  • Page 92: Figure 70 Remote Connected/Remote Ui Disabled

    3. A yellow button on the remote’s screen will indicate “Remote Connected, Remote UI disabled” (refer to Figure 70). Figure 70 Remote Connected/Remote UI disabled 56-101-01175 Revision P Page | 79...

  • Page 93: Appendix F: Cabin Pressure Mode

    It should be noted that this test is not commonly performed on aircraft. Therefore, the Cabin Pressure testing feature is disabled in the default configuration of the Test Set (as shipped from Barfield). Section A below describes the process of enabling the Cabin Pressure function while Section B describes the actual usage of the Cabin Pressure Mode.

  • Page 94: Figure 73 Setup 2 Screen

    4. “Setup 2” screen is displayed (refer to Figure 73). Select “System Configuration.” Figure 73 Setup 2 Screen 5. A screen appears with three options. Select “Cabin Pressure Mode Disabled” (refer to Figure 74). Figure 74 Disabled Cabin Pressure Mode 56-101-01175 Revision P Page | 81...

  • Page 95: Figure 75 Enabled Cabin Pressure Mode

    6. The Test Set will change the Cabin Pressure Mode to “Enabled” (refer to Figure 75). Figure 75 Enabled Cabin Pressure Mode 7. The Test Set is now ready to be used in the Cabin Pressure Mode. To access the mode, restart the Test Set.

  • Page 96: Figure 77 Cabin Pressure Mode (Step 1)

    5. The Cabin Pressure Mode’s Step 1 window is displayed (refer to Figure 77). Figure 77 Cabin Pressure Mode (Step 1) 6. In Step 1 of the Cabin Pressure Mode, ensure that the cabin of the aircraft is open, and the Pitot (Pt) port of the unit is vented to ambient (Static (Ps) port connection not required).

  • Page 97: Figure 79 Warning Screen (1)

    8. A warning pop-up window is displayed with the message below (refer to Figure 79). Select “Yes.” Figure 79 Warning Screen (1) 9. Step 2 window is displayed (refer to Figure 80). Here, the unit will vent to ambient. Figure 80 Cabin Pressure Mode (Step 2) 56-101-01175 Revision P Page | 84...

  • Page 98: Figure 81 Cabin Pressure Mode (Step 3)

    6. Once the Test Set is vented, Step 3 window will appear (refer to Figure 81). Select “Cabin Pressure.” Note: Ensure that the cabin is sealed and ready for pressurization as per AMM. Figure 81 Cabin Pressure Mode (Step 3) 7.

  • Page 99: Figure 83 Measuring Cabin Pressure & Rate

    9. Step 3 shows the screen for the cabin pressure mode on which the unit is monitoring the change in the cabin pressure and displays this value in unit of psi and ROC in ft/min. (refer to Figure 83). Figure 83 Measuring Cabin Pressure & Rate 10.

  • Page 100: Figure 85 Venting Process

    13. The Test Set will begin the venting process (refer to Figure 85). Figure 85 Venting Process 14. Once the venting process is completed, the Test Set will display the message below (refer to Figure 86). Set the power switch to OFF. Figure 86 Unit Safe to Power Off 15.

  • Page 101: Appendix G: Ibf System Mode

    APPENDIX G: IBF SYSTEM MODE The following appendix details the configuration and usage of the unit when setup to perform in IBF (Inlet Barrier Filter) Mode. The purpose of the IBF is to protect the turbine engine from foreign damage and micro erosion when operating in normal and severe environmental conditions.

  • Page 102: Figure 88 Select Additional Functions

    Figure 88 Select Additional Functions 7. A new screen will appear with 4 options (refer to Figure 89). Select “IBF Inlet Barrier Filter Mode.” Figure 89 Select IBF Inlet Barrier Filter Mode 8. Step 1 window is displayed with the message below (refer to Figure 90). Select “IBF Vent/Tare.”...

  • Page 103: Figure 91 Warning Message (1)

    9. A warning pop-up message will appear. Select “Yes” (refer to Figure 91). Figure 91 Warning Message (1) 10. Step 2 window is briefly displayed while the Test Set is venting to ambient and performing Tear function (refer to Figure 92). Figure 92 IBF Mode (Step 2) Note: The Test Set is now vented to Ambient with ALT Tare at 0 ft pressure altitude and dP Tare at 0.0 inH...

  • Page 104: Figure 93 Ibf Mode (Step 3)

    11. Step 3 window is displayed (refer to Figure 93). Select “IBF Control.” Figure 93 IBF Mode (Step 3) 12. The Test Set will transition into control mode with the Target value (both ALT & dP) set to the current pressure measure on the Static (Ps) port. 13.

  • Page 105: Figure 95 Warning Message (2)

    17. Once testing is completed, press “Exit.” 18. A warning pop-up message will appear. Select “Yes” (refer to Figure 95). Figure 95 Warning Message (2) 19. The Test Set will briefly vent, and a new window is displayed with the message below (refer to Figure 96).

  • Page 106: Appendix H: Field Firmware Update Procedure Via Usb & Barfield Adts App

    APPENDIX H: FIELD FIRMWARE UPDATE PROCEDURE VIA USB & BARFIELD ADTS APP (Refer to the 42-101-01175_01178 for this procedure) 56-101-01175 Revision P Page | 93...

This manual is also suitable for:

101-01175

Table of Contents

Save PDF
