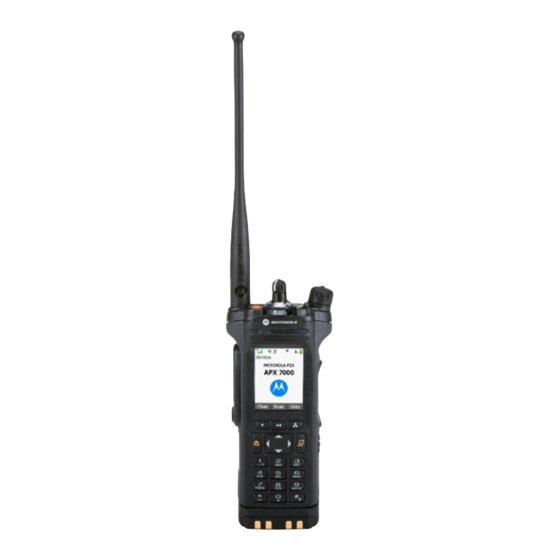

APX TWO-WAY RADIOS
DUAL DISPLAY
APX 7000/APX 7000L
USER GUIDE
DECEMBER 2019
*6875945M01*
6875945M01-NL
©
2019 Motorola Solutions, Inc. All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APX 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Motorola solutions APX 7000

Summary of Contents for Motorola solutions APX 7000

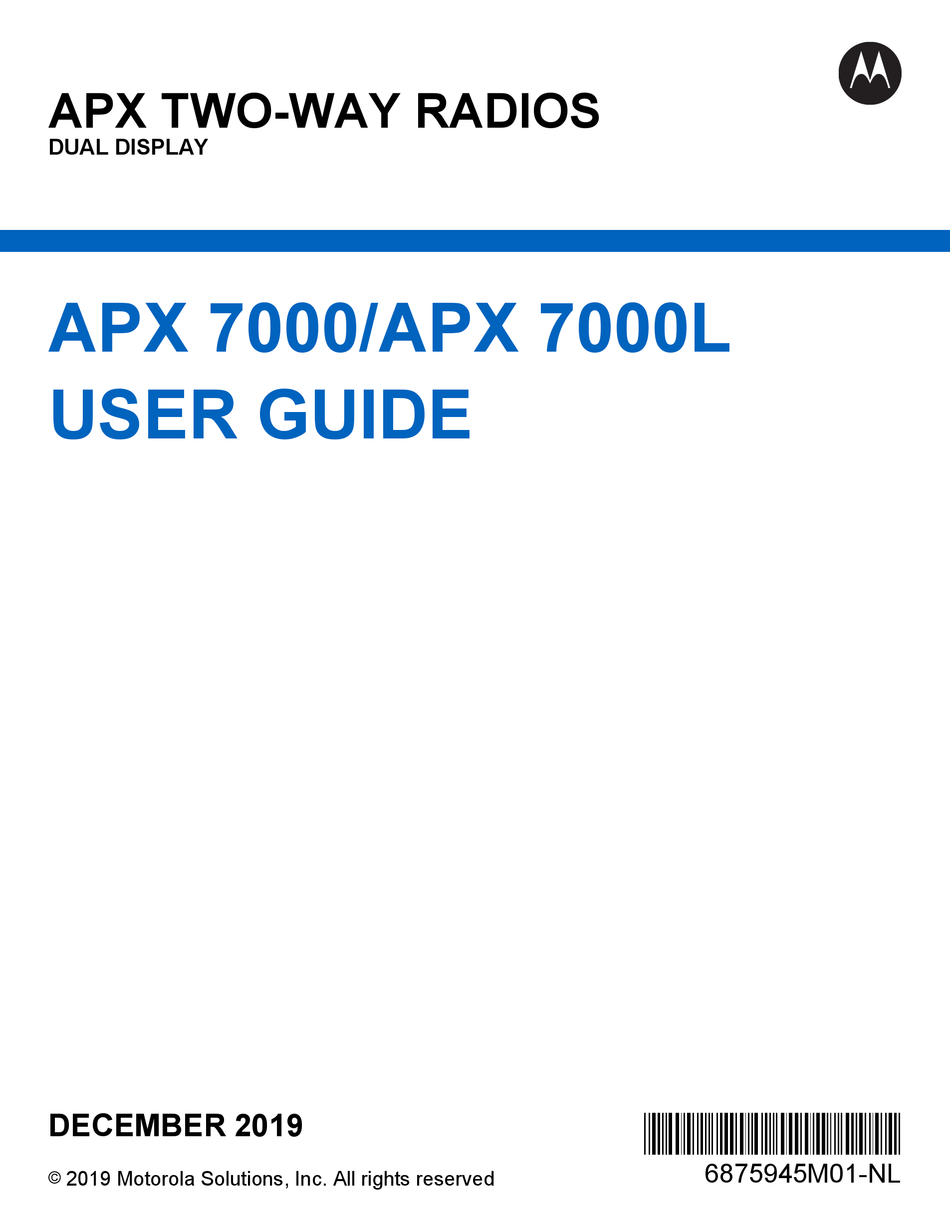

  • Page 1 APX TWO-WAY RADIOS DUAL DISPLAY APX 7000/APX 7000L USER GUIDE DECEMBER 2019 *6875945M01* 6875945M01-NL © 2019 Motorola Solutions, Inc. All rights reserved...
  • Page 2 6875945M01-NL Contents Contents Declaration of Conformity..................11 Important Safety Information................... 13 Notice to Users (FCC and Industry Canada)............14 Software Version.......................15 Computer Software Copyrights................16 Documentation Copyrights..................17 Disclaimer........................18 Read Me First......................19 Notations Used in This Manual....................19 Radio Maintenance........................19 Radio Care........................19 Cleaning Your Radio....................
  • Page 3 6875945M01-NL Contents Radio Controls......................31 Radio Parts and Controls......................31 Programmable Features......................32 Assignable Radio Functions..................... 32 Assignable Settings or Utility Functions................35 Accessing the Preprogrammed Functions...................35 Menu Select Buttons......................36 Home Button........................36 4-Way Navigation Button....................36 Data Feature Button......................36 Keypad............................37 Keypad Characters – Uppercase Mode................37 Keypad Characters –...
  • Page 4 6875945M01-NL Contents 1.6 Methods to Make a Radio Call....................57 1.6.1 Making a Talkgroup Call ..................58 1.6.2 Making a Private Call (Trunking Only)..............58 1.6.3 Making an Enhanced Private Call (Trunking Only)..........59 1.6.4 Making a Telephone Call (Trunking Only)............... 59 1.7 Switching Between Repeater or Direct Operation Button............60 1.8 Monitor Feature........................
  • Page 5 6875945M01-NL Contents 2.3.6.3 Editing a Call Type..................75 2.3.7 Viewing Details of a Contact..................75 2.4 Scan Lists..........................75 2.4.1 Intelligent Priority Scan.................... 76 2.4.2 Viewing a Scan List....................76 2.4.3 Editing the Scan List....................76 2.4.4 Changing the Scan List Status.................77 2.4.5 Viewing and Changing the Priority Status..............77 2.5 Scan............................78 2.5.1 Turning Scan On or Off....................78...
  • Page 6 6875945M01-NL Contents 2.11.3 Radio Alerts When Man Down Feature is Triggered..........90 2.11.4 Triggering Emergency....................90 2.11.5 Radio Alerts When Man Down Enhanced is Triggered..........91 2.11.6 Exiting Man Down Feature..................91 2.11.7 Re-Initiating Man Down..................91 2.11.8 Testing the Man Down Feature................92 2.12 Automatic Registration Service (ARS).................92 2.12.1 Selecting or Changing the ARS Mode..............
  • Page 7 6875945M01-NL Contents 2.15.3 Managing Encryption................... 107 2.15.3.1 Loading Encryption Keys............... 107 2.15.3.2 Multikey Feature..................108 2.15.3.3 Selecting Encryption Keys..............108 2.15.3.4 Selecting Keysets...................109 2.15.3.5 Erasing Encryption Keys................ 109 2.15.3.6 Requesting an Over-the-Air Rekey............110 2.15.3.7 MDC Over-the-Air Rekeying Page (Conventional Only)......110 2.15.3.8 Infinite UKEK Retention.................
  • Page 8 6875945M01-NL Contents 2.20.1 Entering the Geofence Area................123 2.20.2 Mission Critical Geofence..................124 2.20.3 Entering Mission Critical Geofence..............124 2.20.4 Exiting Mission Critical Geofence................ 124 2.21 Trunking System Controls....................124 2.21.1 Operating in Failsoft System................124 2.21.2 Out-of-Range Radio.....................125 2.21.3 Site Trunking Feature..................125 2.21.4 Locking and Unlocking a Site................125 2.21.5 Site Display and Search Button................
  • Page 9 6875945M01-NL Contents 2.23.1 Responding to the Notification of Upgrade............140 2.24 Voice Announcement ......................141 2.25 Site Selectable Alerts (ASTRO 25)..................141 2.25.1 Sending SSA Notification to Single Site...............141 2.25.2 Sending SSA Notification to Single Site by Manual Entry........142 2.25.3 Sending SSA Notification to All Sites..............143 2.25.4 Sending SSA Notification to All Available Sites...........
  • Page 10 4.3 Declaration of Compliance for the Use of Distress and Safety Frequencies....... 170 4.4 Technical Parameters for Interfacing External Data Sources..........170 Glossary........................171 Limited Warranty.....................178 6.1 MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS..........178 6.2 I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:......... 178 6.3 II. GENERAL PROVISIONS:....................179 6.4 III. STATE LAW RIGHTS:....................179 6.5 IV.

  • Page 11: Declaration Of Conformity

    Name: Motorola Solutions, Inc. Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that APX 7000/APX 7000L conforms to FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. This device complies with Industry Canada license-exempt RSS standard(s).
  • Page 12 Conforms to the following regulations: FCC Part 15, Section 15.19, 15.21, and 15.105 NOTICE: Changes or modifications not expressly approved by Motorola Solutions may void the users authority, as authorized by the FCC, to operate this device and should not be made. See 47 CFR Part 15.21.

  • Page 13: Important Safety Information

    Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. For a list of Motorola Solutions-approved antennas, batteries, and other accessories, visit the following website: http://www.motorolasolutions.com Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.

  • Page 14: Notice To Users (Fcc And Industry Canada)

    • This device must accept any interference received, including interference that may cause undesired operation. • Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment.

  • Page 15: Software Version

    6875945M01-NL Software Version Software Version All the features described in the following sections are supported by the software version R20.60.00 or later. Accessing the Radio Information on page 161 to determine the software version of your radio. Check with your dealer or system administrator for more details of all the supported features.

  • Page 16: Computer Software Copyrights

    The Motorola Solutions products described in this manual may include copyrighted Motorola Solutions computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program.

  • Page 17: Documentation Copyrights

    No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola Solutions. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola Solutions.
  • Page 18 The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola Solutions reserves the right to make changes to any products herein to improve readability, function, or design. Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein;...

  • Page 19: Read Me First

    6875945M01-NL Read Me First Read Me First This User Guide covers the basic operation of the radio. However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information. If you attempt to use features which are mutually exclusive, one or more of the following occurs: •...
  • Page 20 • (For APX 7000/APX 7000L R Radios Only) Your radio is designed to be submerged to a maximum depth of 6 feet, with a maximum submersion time of 2 hours. Exceeding either maximum limit may result in damage to the radio.
