IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
For replacement parts and the most up-to-date instruction manuals, visit

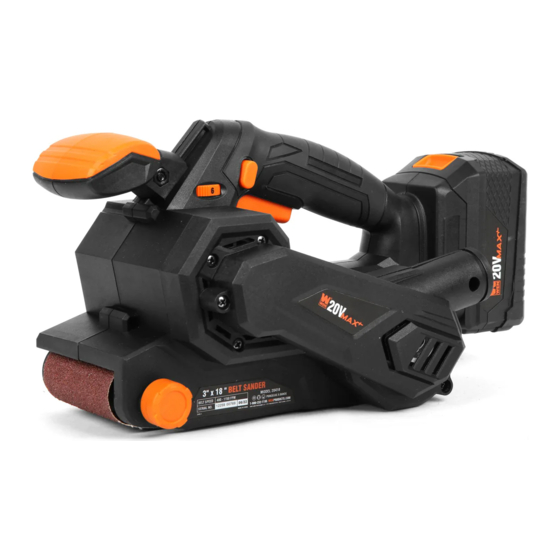

3"x18" BELT SANDER
NEED HELP? CONTACT US!
MODEL 20418, 20418BT
20V CORDLESS
Instruction Manual
TECHSUPPORT@WENPRODUCTS.COM
WENPRODUCTS.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wen 20418
Summary of Contents for Wen 20418
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
Replacement Sanding Belts (Model 6318SP80, 6318SP120, and 6318SP240) WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools compatible with the included battery and charger, visit wenproducts.com and search model number 20202 (2Ah), 20204 (4Ah),... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Belt Sander. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Belt Sander Safety Warnings
BELT SANDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. WARNING! EXTREME CAUTION REQUIRED WHEN SANDING PAINT. The dust residue may contain LEAD, which is poisonous. Exposure to even low levels of lead can cause irreversible brain and nervous system dam- age, to which young and unborn children are particularly vulnerable. - Page 7 BELT SANDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. VIBRATION SAFETY 12. Replacing the Sanding Belt. Replace the sanding belt as soon as it becomes worn or torn. Torn sanding This tool vibrates during use.
-
Page 8: Electrical Information
ELECTRICAL INFORMATION (CHARGER) DOUBLE-INSULATED CHARGER The charger’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal components with protecting insulation. -
Page 9: Battery & Charger Safety Warnings
Never carry the charger by its cord or yank it by the cord battery chemicals. If the battery or charger are damaged, to disconnect it from the receptacle. Keep the cord away call WEN customer service at 1-800-232-1195 for as- from heat, oil and sharp edges. Make sure the cord will sistance. - Page 10 BATTERY & CHARGER SAFETY WARNINGS ABOUT THE BATTERY 1. The battery pack has to be charged completely before you use the tool for the first time. 2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently. 3.
-
Page 11: Before Operating
Adapter (1) Belt Sander (1) Dust Bag Assembly (1) 20V Battery (1)** * The 80-Grit Sanding Belt comes pre-installed on the Belt Sander. ** Battery and charger only included with model 20418. Model 20418BT does not include a battery or charger. -
Page 12: Know Your Belt Sander
TOOL PURPOSE Easily shape and finish wood and other materials with your WEN Handheld Belt Sander. Refer to the following dia- grams to become familiarized with all the parts and controls of your sander. The components will be referred to later in the manual for assembly and operation instructions. -
Page 13: Assembly & Adjustments
ASSEMBLY & ADJUSTMENTS CHOOSING SANDING BELTS Sanding belts come in different grades from rough to smooth. Select the grade required for the particular job. Refer to the table below for the type and applications of different grades. Your sander comes with one 80-grit sanding belt. Additional sanding belts of various grits can be purchased from wenproducts.com. - Page 14 ASSEMBLY & ADJUSTMENTS DUST COLLECTION The dust produced by sanding can be hazardous to your health. Always wear a dust mask and operate the tool in a well-ventilated area. This sander comes with a dust collection bag. Before operating the sander, make sure to install the dust bag, or connect the tool to a suitable dust extraction system.
- Page 15 ASSEMBLY & ADJUSTMENTS WARNING! To avoid injury from accidental startups, be sure that the tool is switched off and disconnected from the power supply before inspecting the unit, making adjustments, or changing accessories. CHARGING THE BATTERY PACK The 20V battery pack for this tool is supplied in a low charge condition to prevent possible problems, and must be charged completely before you use the tool for the first time.
-
Page 16: Operation & Maintenance
SERVICE Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and com- ponents, possibly causing a serious hazard. Call WEN customer service line at 1-800-232-1195 for product support. CLEANING Ventilation openings and switch levers must be kept clean and free of foreign matter. The tool may be cleaned most effectively with compressed dry air. -
Page 17: Maintenance
MAINTENANCE WARNING! To avoid accidents, always remove the battery from the tool before cleaning or performing any maintenance. Always wear safety goggles when cleaning tools with compressed air. NOTE: Follow instructions in section "INSTALLING OR REPLACING THE SANDING BELT" to regularly change the sanding belt, for optimal safety and quality of sanding. -
Page 18: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty. - Page 19 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 20418-001 Sanding Belt 20418-033 Handle-Left 20418-002 Screw ST4x20 20418-034 Hex Nut M5 20418-003 Belt Clamp Support 20418-035 V-Pulley 20418-004 Front Roller Axle 20418-036 Washer 20418-005 Flat Washer...
-
Page 20: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
