深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
地址/Add: 深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋1层至4层、4栋1层至4层
1st to 4th Floor, Building 2/ 1st to 4th Floor, Building 4, Yaochuan Industrial Zone, Tangwei
Community, Fuhai Street, Bao'an District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062)
传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
http://www.godox.com
705-TT350C-02
Made in China

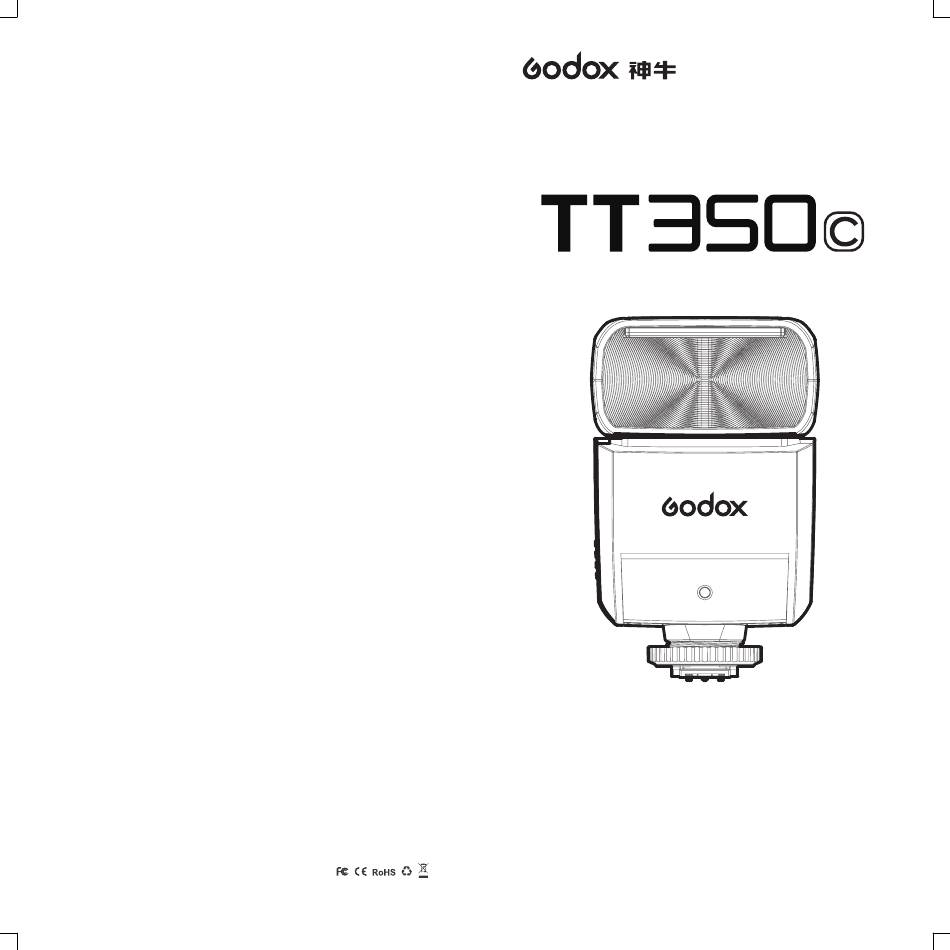

迅丽TTL机顶闪光灯
Thinklite TTL Camera Flash
For Canon
INSTRUCTION MANUAL
说
明
中英文双语 / Chinese English Bilingual
在使用本产品之前：
请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将
来查询参考。
Before using this product:
Please read this user manual carefully in order to ensure your safety
and the proper operation of this product. Keep for future reference.
手
册
Advertisement
Table of Contents
Related Manuals for Godox TT350C
Summary of Contents for Godox TT350C
- Page 1 手 册 中英文双语 / Chinese English Bilingual 深圳市神牛摄影器材有限公司 在使用本产品之前： GODOX Photo Equipment Co., Ltd. 请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将 地址/Add: 深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋1层至4层、4栋1层至4层 1st to 4th Floor, Building 2/ 1st to 4th Floor, Building 4, Yaochuan Industrial Zone, Tangwei 来查询参考。 Community, Fuhai Street, Bao’an District, Shenzhen 518103, China Before using this product: 电话/Tel: +86-755-29609320(8062)
- Page 2 Always keep this product dry. Do not use in rain or in damp conditions. This TT350C camera flash applies to Canon series cameras and is Do not disassemble. Should repairs become necessary, this compatible with TTL autoflash. With this TTL compatible flash, your product must be sent to an authorized maintenance center.
-
Page 3: Table Of Contents
Contents Foreword Warning Name of Parts Body Control Panel LCD Panel What's in the Box of TT350C? Separately Sold Accessories Attaching to a Camera Power Management Flash Mode: TTL Autoflash FEC (Flash Exposure Compensation) High-Speed Sync Second-Curtain Sync Flash Mode – M: Manual Flash Flash Mode –... -
Page 4: Name Of Parts
● LCD Panel Name of Parts (1) TTL Autoflash : zoom display (Page 42) Zoom Focus length (Page 42) : TTL autoflash : Flash exposure Flash exposure compensation (Page 33) compensation amount (2)M Manual Flash : Manual flash Manual flash output (3)Multi Flash Body Multi... -
Page 5: What's In The Box Of Tt350C
What’s in the Box of TT350C? ● Power Management 1. Flash unit 2. Mini stand 3. Protection case 4. Diffuser 5. Instruction manual Power Switch to power the flash unit on (Long press the Separately Sold Accessories ● button for one second) or off. Turn off if it will not be used for an extended period of time. -
Page 6: Fec: Flash Exposure Compensation
FEC: Flash Exposure Compensation M: Manual Flash With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where minor adjusting of the TTL system is The flash output is adjustable from 1/1 full power to 1/128th power needed based on the environment. -
Page 7: Wireless Flash Shooting: Radio (2.4G) Transmission
Use the formula below to calculate the shutter speed and set TT685C, TT600. it with the camera. As a slave unit, TT350C can be controlled by the following master Number of Flashes / Flash Frequency = Shutter Speed unit models: X1T-C, V860IIC, V850II, TT685C, TT600. -
Page 8: Setting The Communication Channel
Slave Unit Setting MODE ZOOM SYNC SLAVE ● Set the TT350C that to be Press the <MODE> Button for controlled as the wireless 2 seconds to switch to Multi slave unit. (Page 37) mode. ● The slave unit can be set as A/B/C. -
Page 9: M: Wireless Flash Shooting With Manual Flash
Using a flash (master/slave) with a radio transmission wireless shooting function make it easy to shoot with advanced wireless The Reason & Solution of Not Triggering in Godox 2.4G Wireless multiple flash lighting, in the same way as TTL autoflash shooting. -
Page 10: Other Applications
3. Whether the distance between the flash trigger and the flash If the wall or ceiling is too far away, the bounced flash might ● is too close or not be too weak and result in underexposure. →Please turn on the “close distance wireless mode” on the flash trigger ●... -
Page 11: C.fn: Setting Custom Functions
Using the Wide Panel Protection Function Pull out the wide panel and place it over the flash head as shown. The 1. Over-Temperature Protection flash coverage will then be extended to 14 mm. To avoid overheating and deteriorating the flash head, do not fire ●... -
Page 12: Firmware Upgrade
Hotshoe, optic triggering • Dimensions Technical Data W x H x D 140*62*38 mm Weight without battery 200g Model TT350C • Type Compatible Cameras Please reference to compatible camera models Guide No. 36 (m ISO 100) (1/1 output @ 105mm) Flash Coverage 24 to 105mm •... -
Page 13: Troubleshooting
Troubleshooting Compatible Camera Models This flash unit can be used on the following Canon camera If there is a problem, refer to this Troubleshooting Guide. models: The Camera Flash cannot be charged. 760D 600D 5D Mark III ● The battery is installed in the wrong direction. 100D 1100D Digital X...
