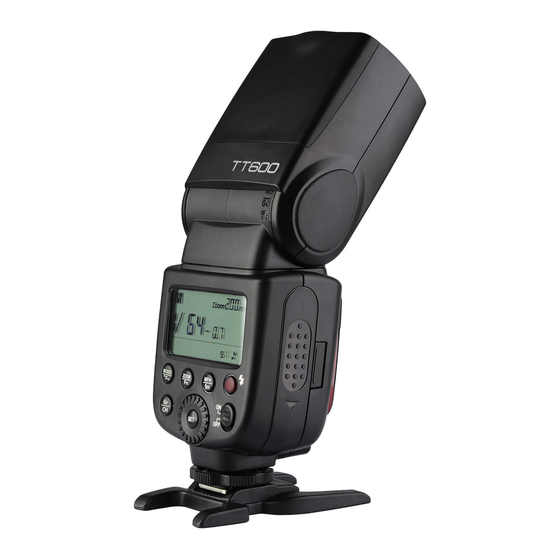

Godox TT600 Instruction Manual

Thinklite

Hide thumbs Also See for TT600:

Instruction manual (21 pages)

User manual (21 pages)

User manual (122 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the TT600 and is the answer not in the manual?

Questions and answers

Keilan S Williams

May 4, 2025

I just purchased a Godox TT600 Flash. What is charging In DC on the flash mean? There is no charging cord with the flash. Can this flash be used on a Canon Rebel T7 Camera? Also, What is the settings for normal picture taking?

1 comments:

Mr. Anderson

May 17, 2025

"Charging in DC" on the Godox TT600 means using an external power supply (DC power input) instead of or in addition to AA batteries to power the flash. However, the TT600 does not mention a DC input port in the provided context, so it likely relies only on AA batteries.

Yes, the Godox TT600 can be used with a Canon Rebel T7 camera. It is compatible with all DSLR brands, including Canon.

For normal picture taking, basic recommended settings include:
- Flash power: Start at 1/16 or 1/8 and adjust as needed.
- Mode: Manual mode (M) on flash and camera.
- ISO: 100–400 depending on lighting.
- Aperture: f/5.6 is a good starting point.
- Shutter speed: Stay at or below your camera’s sync speed (usually 1/200s or 1/250s) unless using high-speed sync.
- Zoom head: Match your lens focal length or set manually (e.g., 35mm).

Adjust based on lighting conditions and subject distance.

This answer is automatically generated

Ely Joseph LYBEER

May 18, 2025

how to power TT600 flash with DC power wihout AA batteries ?

Summary of Contents for Godox TT600

Page 1 迅丽机顶闪光灯 Thinklite Camera Flash INSTRUCTION MANUAL 说明手册中英文双语 / Chinese English Bilingual 在使用本产品之前：请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将来查询参考。 Before using this product: Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep for future reference.
Page 2: Foreword
Foreword Thank you for purchasing a GODOX product. TT600 camera flash adopts Godox wireless X system and 2.4G ratio transmission, which is compatible with AD360II-C、AD360II-N、 TT685C、TT685N、X1T-C、X1T-N, etc. Fit all DSLR camera brands e.g. Canon, Nikon, Sony, etc. This TT600 camera flash features: •...
Page 3: For Your Safety
For Your Safety • Always keep this product dry. Do not use in rain or in damp conditions. • This product contains high-voltage electronic parts. Touching the high-voltage circuit inside it may result in electric shock. Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
Page 4 E l e c t r o n i c C a m e r a F l a s h Thinklite Camera Flash Conventions used in this Manual ● This manual is based on the assumption that both the camera and camera flash’s power switches are powered on.
Page 5: Table Of Contents
Contents Foreword For Your Safety Name of Parts Body Control Panel LCD Panel What’s in the Box of TT600? Separately Sold Accessories Attaching to a Camera Using the Flash Power Management Flash Output ZOOM: Setting the Flash Coverage M Mode...
Page 6: Name Of Parts
Name of Parts ● Body 06. Wireless Control Port 01. Catchlight Panel 07. Sync Cord Jack 02. Built-In Wide Panel 08. Hotshoe (Retracted) 09. Lock Ring 03. Flash Head 10. Battery Compartment 04. Optic Control Sensor 05. Focus Assist Beam ●...
Page 7: Lcd Panel
Name of Parts ● LCD Panel 19. <M>Manual Flash Mode 26. < >Sleep Status 20. <S1>S1 Slave Flash Triggering 27. < >Overtemperature 21. <S2>S2 Slave Flash Triggering Indication 22. <Multi>Multi/Stroboscopic 28. < >Wireless Signal Flash Mode Transmission 23. < >High Speed Sync 29.
Page 8: What's In The Box Of Tt600
● What’s in the Box of TT600? 1. Flash unit 2. Mini stand 3. Protection case 4. Instruction manual ● Separately Sold Accessories The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: Cells II high speed trigger, FT-16S power &...
Page 9: Attaching To A Camera
Attaching to a Camera Attach the Camera Flash. ● Slip the camera flash’s mounting foot into the camera’s hotshoe all the way. Secure the Camera Flash. ● Rotate the locking screw on the mounting foot until it locks Detach the Camera Flash. ●...
Page 10: Multi Mode: Stroboscopic Flash
Using the Flash 4. M Mode: Manual Mode Press MODE Selection Button < > to enter M mode. In this mode, you can set the flash unit onto your camera hot shoe or your trigger hot shoe for firing. Before shooting, adjust the flash power output.
Page 11: S1 Mode
Using the Flash Maximum Stroboscopic Flashes： Flash Output 1/16 1/32 1/64 1/128 12-14 15-19 20-50 60-199 Flash Output 1/16 1/32 1/64 1/128 To avoid overheating and deteriorating the flash head during stroboscopic flash, do not use stroboscopic flash more than 10 times in succession.
Page 12: Hi-Speed Sync Triggering
1. Hi-speed sync trigger, e.g., Godox Cells II transceiver. 2. TTL wireless flash trigger X1C 3. TTL wireless flash trigger X1N *Hi-speed sync triggering mode is not available when TT600 is mounted onto the camera. Godox Cells II transceiver TTL wireless flash trigger (Optional）...
Page 13: Buzz Function
< >is shown on the LCD display. 11. Wireless Flash Shooting: Ratio (2.4G) Transmission ● TT600 has 2.4G ratio transmission (Master/Slave) ● Wireless mode setting: Long press < > button and hold for 2 seconds until< > icon is blinking. Turn the Select Dial to set from OFF/Master(M)/Slave(S) mode.
Page 14: Wireless Control Function
Using the Flash Master mode, groups can be selected from M/A/B/C/D/E; while in Slave mode, groups can be selected from A/B/C/D/E. ● As TT600 adopts Godox wireless X system, it is compatible with AD360II-C、AD360II-N、TT685C、TT685N、X1T-C、X1T-N wireless control, etc. ● See the picture below:...
Page 15: Custom Function
Using the Flash < > to set a desired time for the flash or to turn off Sleep Function. Press < > button to return. Idle Time Meaning Sleep Function is turned off. The flash unit will not automatically enter sleep mode. Idle time before entering Sleep Mode is set to 3 minutes.
Page 16 Using the Flash Custom Function Settings & Operation Function Description Signs Auto <10>10 seconds 1. Press < > Power <20>20 seconds button to enter <30>30 seconds Custom Functions. Time 2. Press < > Setting button to enter FC of Auto states.
Page 17: Protection Function
Protection Function 1. Over-Temperature Protection ● To avoid overheating and deteriorating the flash head, do not fire more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at least 10 minutes.
Page 18: Advanced Application
Protection Function 2. Other Protections The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference: Prompts on Meaning LCD Panel A failure occurs on the temperature sensor. Please send this kit to a maintenance center. A failure occurs on the recycling system so that the flash cannot fire.
Page 19: Using The Wide Panel
Advanced Application ● Creating a Catchlight With the catchlight panel, you can create a catchlight in the subject’s eyes to add life to the facial expression. Point the flash head upward by 90°. Pull out the wide panel. The catchlight panel will come out at the same time.
Page 20: Technical Data
Technical Data Product Model TT600 Guide No. GN 60 (m ISO 100) (1/1 power @ 200mm) Vertical Rotation Angle -7°-90° Horizontal Rotation Angle 0-360° Ni-MH batteries (recommended) Power Supply or 4*LR6 alkaline batteries Approx. 230 Full Power Flashes (2500mA Ni-MH batteries) Approx.
Page 21 深圳市神牛摄影器材有限公司 GODOX Photo Equipment Co., Ltd. 地址 /Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园 A4 栋 Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong Town, Baoan District, Shenzhen 518103, China 电话 /Tel: +86-755-29609320(8062) 传真 /Fax: +86-755-25723423 邮箱 /E-mail: godox@godox.com http://www.godox.com 705-TT6000-00 Made In China...
