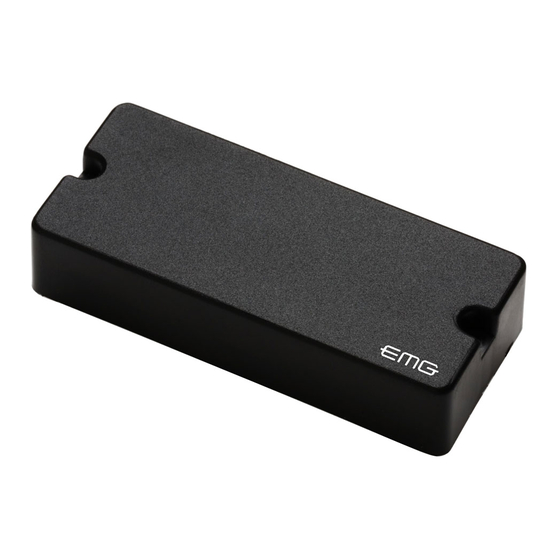

INSTALLATION INSTRUCTIONS FOR THE EMG-707

SPECIFICATIONS:

Logo Color
Resonant Frequency (KHz)
Magnet Type
Output Voltage (String)
Output Voltage (Strum)
Output Noise@ 60Hz
Output Impedance (Kohm)
Current@ 9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
Magnet Type: A (Alnico) A/S (Alnico/Steel)

IMPORTANT INSTALLATION NOTES:

1) Only one battery is required per instrument. EMG Accessories such as
the SPC, RPC EXG, Pi2, PA2, etc. do not require an additional battery.
2) Use an alkaline battery, Duracell MN1604 or similar, for longest life.
3) The controls included with EMG Systems are 25K Ohm, audio taper.
25K Ohm controls are required for the system to work correctly.
4) When installing EMG Pickups, DO NOT reconnect the bridge ground
wire. This wire is soldered to a volume or tone control casing and goes
to the bridge or vibrato cavity. It grounds the strings and uses them and
your body as a shield against hum and buzz. It also creates a shock
hazard. EMG Pickups are shielded internally and do not require string
grounding. This greatly reduces the possibility of reverse polarity shock
from microphones and the like.
Gold
2.65
Alnico
2.0
4.5
-90
10
80
3,000
27
C (Ceramic) C/S (Ceramic/Steel)
Warranty:
All EMG Pickups and accessories are warranted for a period of two years. This warranty
does not cover failure due to improper installation, abuse or damage. If upon examination the
pickup is determined to be defective, a replacement will be made at no charge. Warranty
replacement products are covered by this same warranty. This warranty covers only those
pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
.34"
MAXIMUM RECOMENDED STRING SIZE 2.625

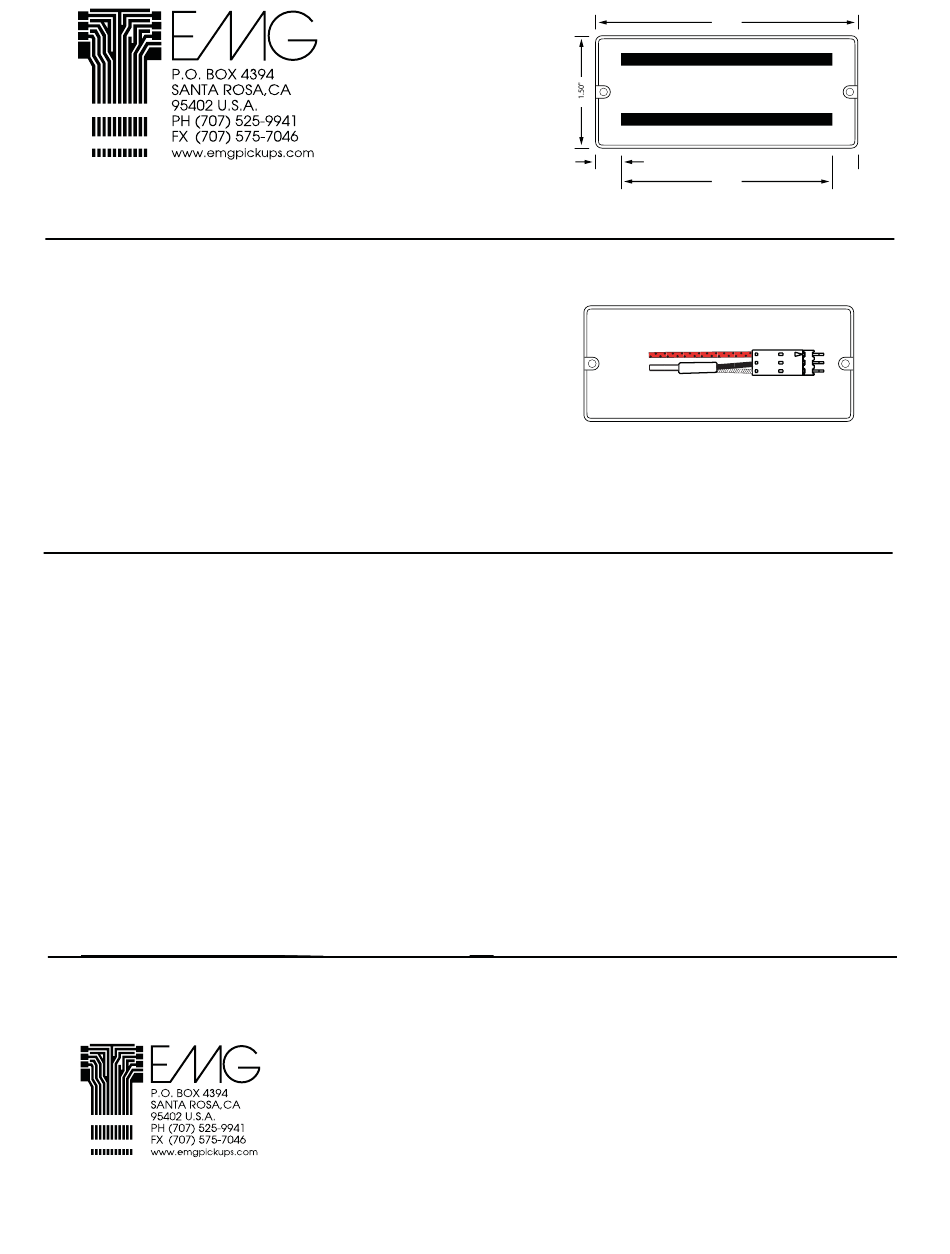

The EMG-707 features the
EMG Quick-Connect header.
Install the output cable
as shown in this diagram.
5) EMG Pickups have very little magnetism compared to high-impedance
passive pickups. We recommend you adjust the pickups as close to
the strings as possible. Sustain and string movement will not be
inhibited by close adjustment.
6) If your installation is different from the diagrams in these instructions
and you need additional diagrams, contact us by phone, fax, or e-mail.
It is highly possible another EMG Installation Sheet will have the
diagram you require. Additional diagrams are available at
http://www.emgpickups.com.
7) The magnetic length of the 707 is 2.9 inches. The maximum string
width should be under 2.75 inches. Most 7 -string guitars have an
overall string width of less than 2.5 inches at the bridge pickup with
Floyd Rose string spacing.
© Copyright EMG Inc. 2006
3.50"
EMG
2.82"
