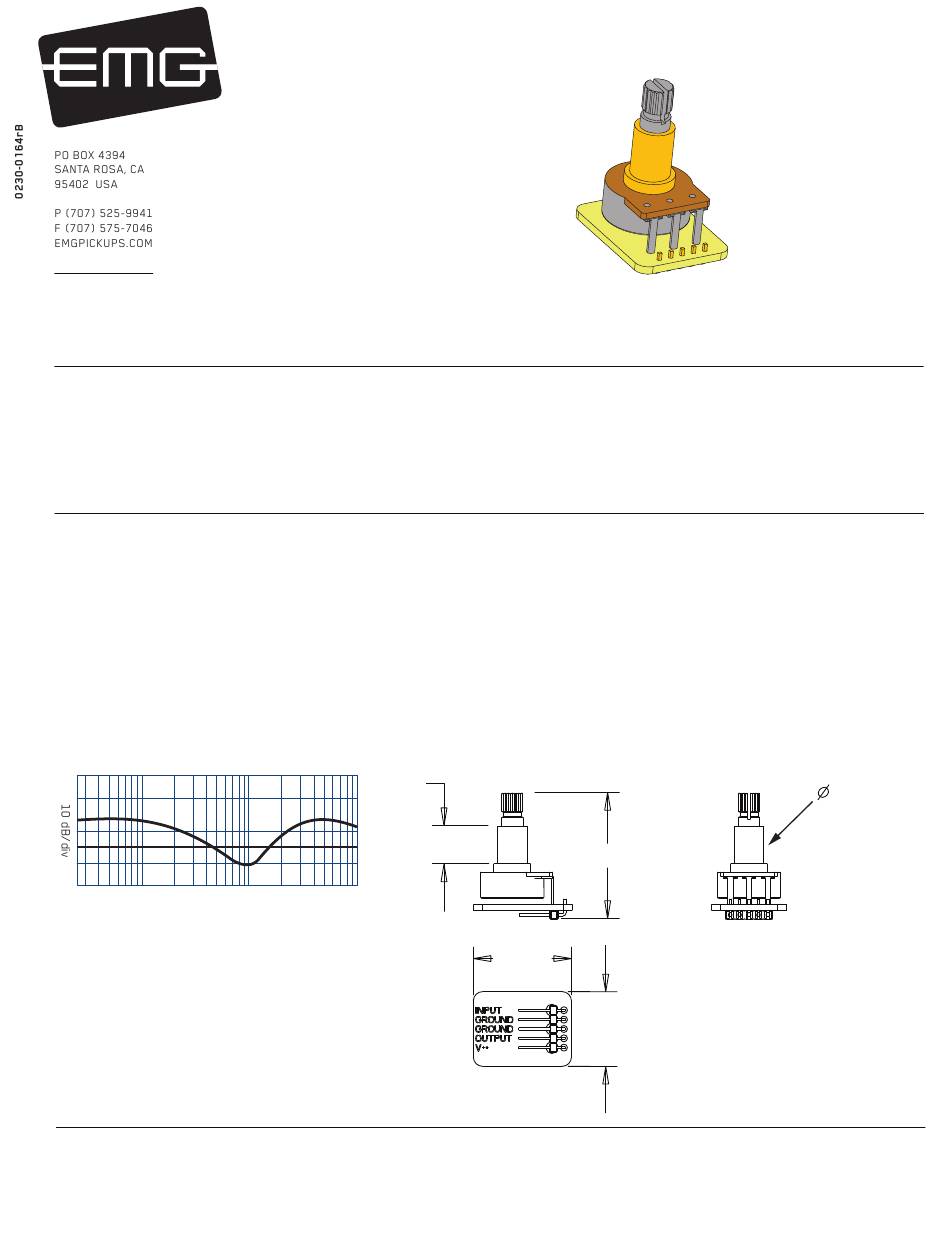

INSTALLATION INFORMATION
EMG MODEL: EXG
(ACTIVE/PASSIVE PICKUP INPUTS)
SPECIFICATIONS
Input Impedance (Ohms)
Input Referred Noise
Output Impedance (Ohms)
Current @ 9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
GENERAL OPERATION:
The EXG is an active EQ circuit for guitar that simultaneously increases both low and high frequencies while decreasing mid-range.
The graph below illustrates the effect of the EXG. The thick black line displays the effect with the control all the way up (clockwise).
The flat black line illustrates the effect with the control all the way down (counter-clockwise) in the bypass mode. The EXG is continuously
variable from flat to maximum effect. The EXG is wired in series with the signal path, so there is an input and output.
The EXG has buffered inputs and can be used with passive pickups.
Frequency Response:
EMG-EXG
0.025
LOG FREQ (kHz)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
© 2014 Copyright EMG INC. All Rights Reserved.
250K
-130dbV
2K
750
200
18
Dimensions:
.400
10
1.050
EXG
INCLUDED:
1 EXG Control
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
2 Interconnect cables
1.325
1 2 3 4 5

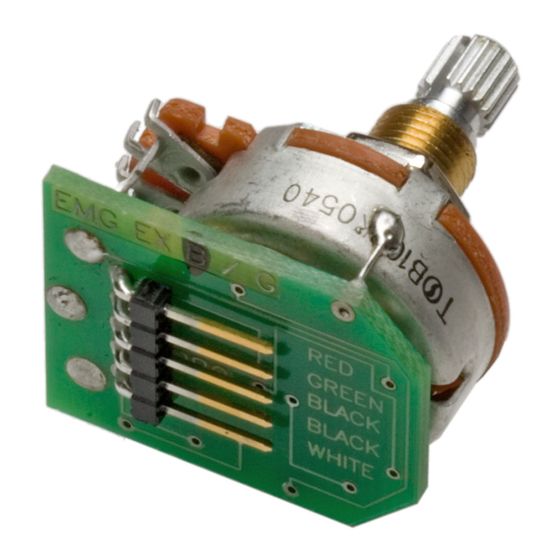

Connector for EMG Active Tone controls
and accessories.
1
2
.800
3
Pin 1
4
5
Pin 2
Pin 3
Pin 4
Pin 5
.309 (8mm P .75)
Input
Ground for Input
Ground for Output
Output
V+ Supply
