H3C Campus SeerEngine LSXM1SEERBXC2 Quick Start Manual

Manual version: 6PW104-20211028
H3C LSXM1SEERBXC2 Campus SeerEngine Module
1 Identifier
The module identifier LSXM1SEERBXC2 is on the far right of the front panel.
2 About the module
The LSXM1SEERBXC2 is a campus SeerEngine module preinstalled with application driven
campus (ADCAMPUS) solution components such as U-Center, endpoint intelligent access (EIA),
vDCHP, and SeerEngine. It is plug and play and can be automatically deployed on small and
medium-sized campus networks, eliminating the need to install physical servers.

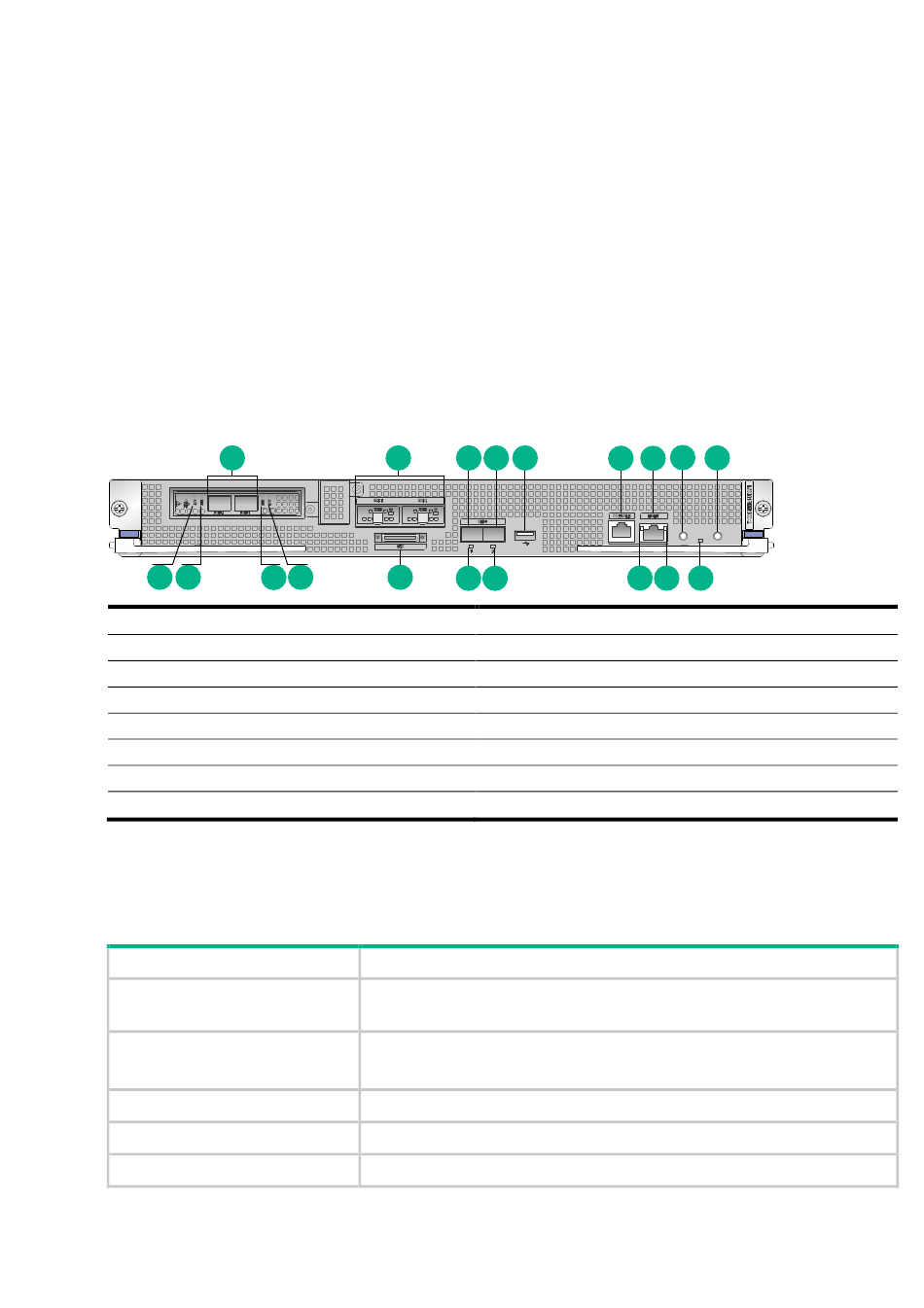

Figure 1 LSXM1SEERBXC2 front panel
15 16
(1) SFP+ fiber ports (3 in total)
(3) HDM shared network port
(5) Console port
(7) UID button/LED
(9) Health LED
(11) HDM dedicated network port LED (LINK)
(13) SFP+ fiber port state LED
(15) SFP+ fiber port LEDs (ACT)
3 Specifications
Table 1 Module specifications
Item
Drive
Memory
Dimensions (H × W × D)
Power consumption
SSD hot swapping
1 2
16 15 14
Specifications
•
•
8 memory slots
Standard configuration: 256 GB (8 × 32 GB memory bars)
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in)
140 to 285 W
Not supported
1 3 4
13 12
(2) Data drive ports (SSD0 and SSD1)
(4) USB 3.0 port
(6) HDM dedicated network port
(8) Power on/standby button and system power LED
(10) HDM dedicated network port LED (ACT)
(12) HDM shared network port LED
(14) SUV port (using an SUV connector)
(16) SFP+ fiber port LEDs (LINK)
2 × 960GB system solid-state drives (SSD)
2 × 1TB data SSDs
i
BOM: 3123A1WS
5 6 7 8
11 10
9
