Manual version: 6PW102-20150210
H3C S9500E LSR1FW2A1 Card Manual
1 Card identifier
The card identifier LSR1FW2A1 is at the upper right corner of the front panel.
2 Introduction
The LSR1FW2A1 card provides one console port, one CF card interface, two USB interfaces, two
10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
You can use a GE port or combo interface to provide the following functions:
In-band management.
•
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
3 Specifications

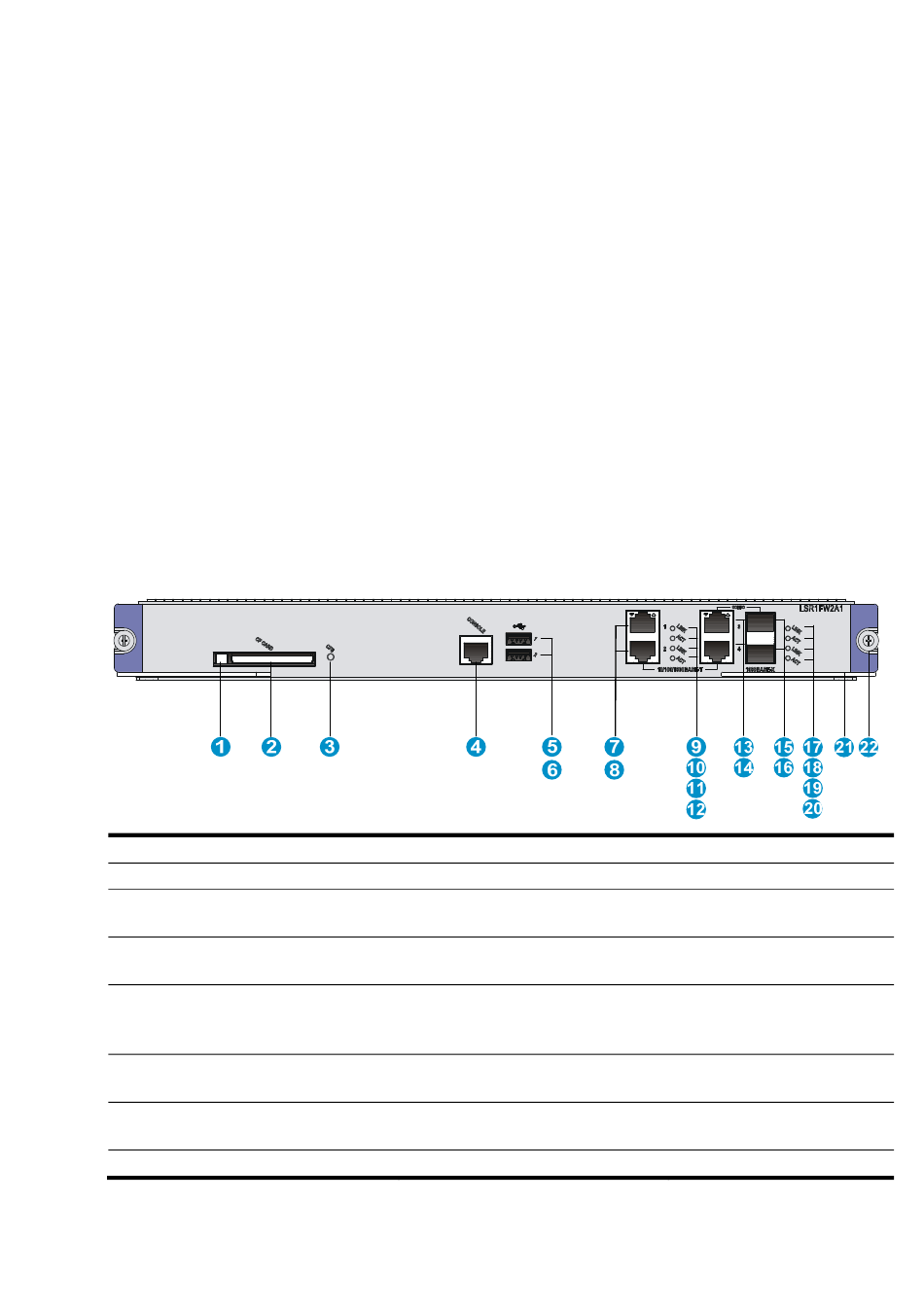

Figure 1 Front panel
(1) CF card eject button
(4) Console port (CONSOLE)
(7) Management Ethernet interface 1
(10/100/1000BASE-T)
(10) Management Ethernet interface 1
LED (ACT)
(13) Management interface 3
(Electrical port of combo interface
10/100/1000BASE-T)
(16) Management interface 4 (Optical
port of combo interface 1000BASE-X)
(19) Management interface 4 LED
(LINK)
(22) Captive screw
(2) CF card slot (CF CARD)
(5) USB interface 1 (reserved)
(8) Management Ethernet interface
2 (10/100/1000BASE-T)
(11) Management Ethernet interface
2 LED (LINK)
(14) Management interface 4
(Electrical port of combo interface
10/100/1000BASE-T)
(17) Management interface 3 LED
(LINK)
(20) Management interface 4 LED
(ACT)
i
BOM: 3123A0A5
(3) CF LED (CFS)
(6) USB interface 2 (reserved)
(9) Management Ethernet
interface 1 LED (LINK)
(12) Management Ethernet
interface 2 LED (ACT)
(15) Management interface 3
(Optical port of combo
interface 1000BASE-X)
(18) Management interface 3
LED (ACT)
(21) Ejector lever
Advertisement
Related Manuals for H3C S9500E LSR1FW2A1
Summary of Contents for H3C S9500E LSR1FW2A1
- Page 1 Manual version: 6PW102-20150210 BOM: 3123A0A5 H3C S9500E LSR1FW2A1 Card Manual 1 Card identifier The card identifier LSR1FW2A1 is at the upper right corner of the front panel. 2 Introduction The LSR1FW2A1 card provides one console port, one CF card interface, two USB interfaces, two 10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
- Page 2 Operating: 10% to 95%, noncondensing Ambient relative humidity • Non-operating: 5% to 95%, noncondensing Compatible device models H3C S9500E series switches System software version See the release notes that come with the card. Table 2 Console port specifications Item Specification...
- Page 3 Manual version: 6PW102-20150210 BOM: 3123A0A5 Item Specification Transmission distance 100 m (328.08 ft) • 10 Mbps, half/full duplex • 100 Mbps, half/full duplex Operating mode • 1000 Mbps, full duplex Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module Connector Interface standard 802.3, 802.3u, and 802.3ab...
-
Page 4: Installing The Card
Manual version: 6PW102-20150210 BOM: 3123A0A5 Status Description No link is present on the port. GE/Combo copper port Steady green A link is present on the port. (LINK/ACT) Flashing yellow The port is sending or receiving data. 5 Installing and removing the card CAUTION: •... -
Page 5: Removing The Card
Log in through the card's Web interface, console port, Telnet, or SSH. • H3C recommends that you log in to the card from the switch's CLI the first time you access the card. This section includes a procedure for logging in from the switch's CLI. For more information about other login... -
Page 6: Software Upgrade
The card uses independent BootWare and system software images. You must upgrade the card software separately from the switch software. To ensure a successful card upgrade, H3C recommends that you upgrade the card through the card's console port or management Ethernet port. For more information about software upgrade of the card, see the release notes that come with the card.
