LSUM1TGT24FD0 10GE copper interface module
1 Identifier
The module identifier LSUM1TGT24FD0 is in the upper right corner of the front panel.
2 Specifications
Table 1 Module specifications
Item
Dimensions (H × W × D)
SDRAM (DDR4)
Power consumption
Connector type
Ports
Port rate
Available cables
Transmission medium and max
transmission distance
NOTE:
To verify the compatibility of the card with the software release you are using, see the release notes.
The 100M/1000M/2.5G/5G/10G copper port uses an RJ-45 connector.

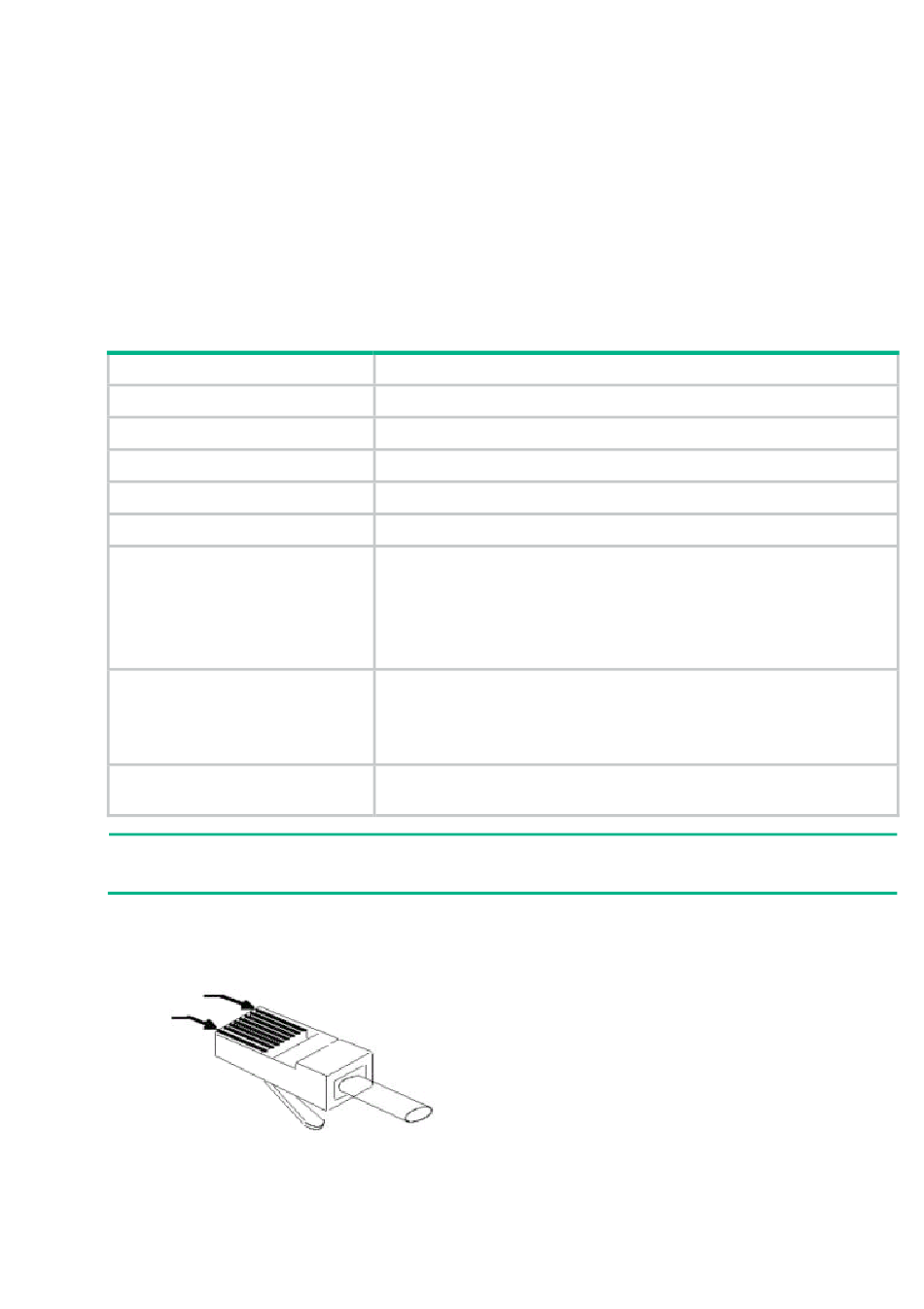

Figure 1 RJ-45 connector
PIN #8
PIN #1
Specifications
40 × 399 × 355 mm (1.57 × 15.71 × 13.98 in)
2 GB
60 W to 112 W
RJ-45
24
•
100 Mbps
•
1000 Mbps
•
2.5 Gbps
•
5 Gbps
•
10 Gbps
•
100M/1000M/2.5G copper port: Category 5e or higher twisted pair
cables
•
5G copper port: Category 6 or higher twisted pair cables
•
10G copper port: Category 6a or higher twisted pair cables
100 m (328.08 ft)
i
BOM: 3123A1QJ
