Manual version: 6PW103-20141219
1 Card identifier
The card identifier LSQ1LBSC0 is at the upper right corner of the front panel.
2 Introduction
The LSQ1LBSC0 module provides one console port, one CF card slot, two USB interfaces, two
10/100/1000BASE-T management Ethernet electrical interfaces, and two management Gigabit combo
interfaces.
You can use a GE port or combo interface to provide the following functions:
In-band management.
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
•
3 Specifications

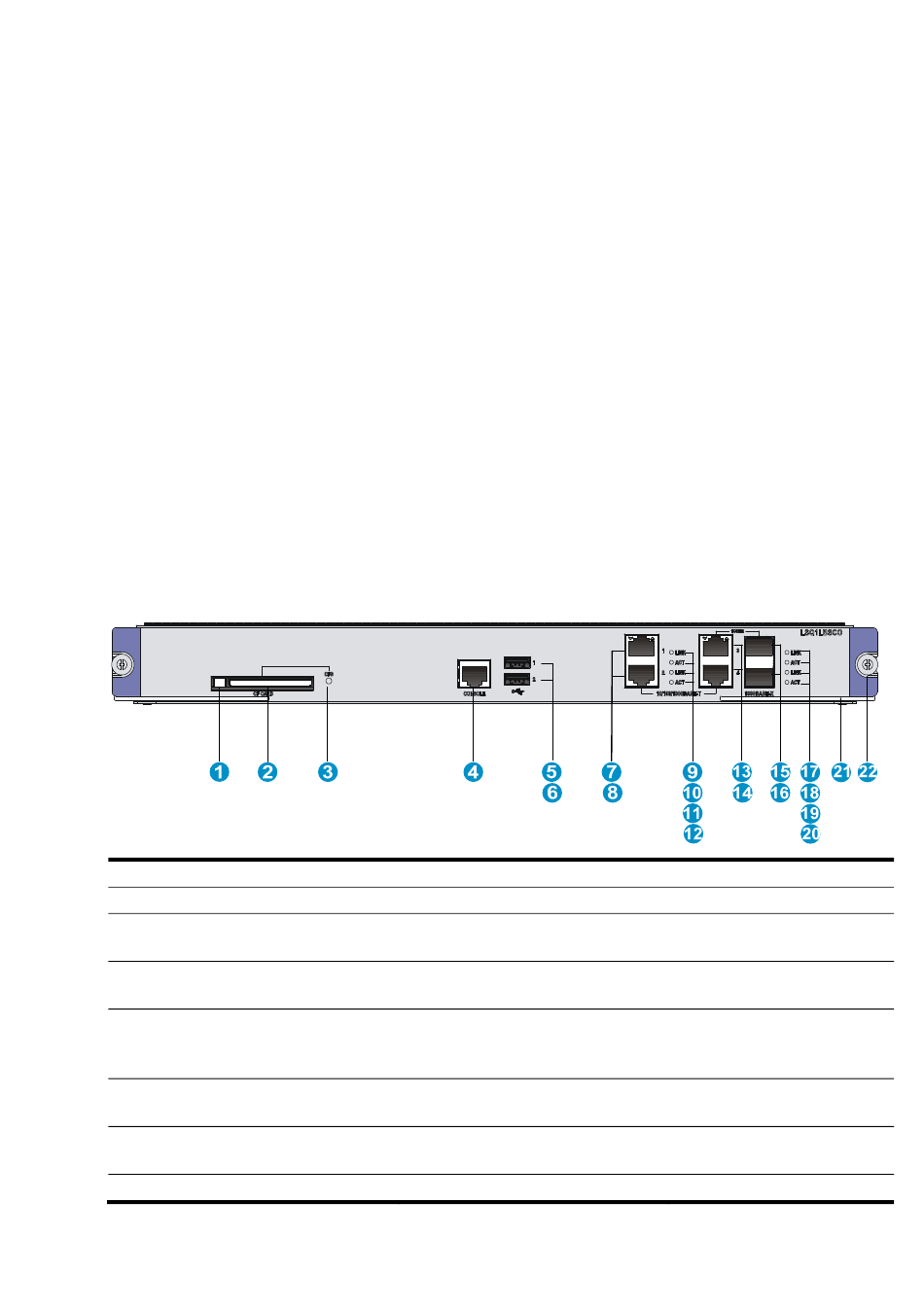

Figure 1 Front panel
(1) CF card eject button
(4) Console port (CONSOLE)
(7) Management Ethernet interface 1
(10/100/1000BASE-T)
(10) Management Ethernet interface 1
LED (ACT)
(13) Management interface 3
(Electrical port of combo interface
10/100/1000BASE-T)
(16) Management interface 4 (Optical
port of combo interface 1000BASE-X)
(19) Management interface 4 LED
(LINK)
(22) Captive screw
H3C LSQ1LBSC0 Card Manual
(2) CF card slot (CF CARD)
(5) USB interface 1 (reserved)
(8) Management Ethernet interface
2 (10/100/1000BASE-T)
(11) Management Ethernet interface
2 LED (LINK)
(14) Management interface 4
(Electrical port of combo interface
10/100/1000BASE-T)
(17) Management interface 3 LED
(LINK)
(20) Management interface 4 LED
(ACT)
i
BOM: 3123A13N
(3) CF LED (CFS)
(6) USB interface 2 (reserved)
(9) Management Ethernet
interface 1 LED (LINK)
(12) Management Ethernet
interface 2 LED (ACT)
(15) Management interface 3
(Optical port of combo
interface 1000BASE-X)
(18) Management interface 3
LED (ACT)
(21) Ejector lever
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for H3C LSQ1LBSC0
Summary of Contents for H3C LSQ1LBSC0
- Page 1 The card identifier LSQ1LBSC0 is at the upper right corner of the front panel. 2 Introduction The LSQ1LBSC0 module provides one console port, one CF card slot, two USB interfaces, two 10/100/1000BASE-T management Ethernet electrical interfaces, and two management Gigabit combo interfaces.
- Page 2 • Operating: 10% to 95%, noncondensing Ambient relative humidity • Non-operating: 5% to 95%, noncondensing • H3C S7500E series switches Compatible device models • H3C S7600 series switches System software version See the release notes that come with the card.
- Page 3 Manual version: 6PW103-20141219 BOM: 3123A13N Item Specification Supported cable Category-5 (or above) twisted pair cable Transmission distance 100 m (328.08 ft) • 10 Mbps, half/full duplex • 100 Mbps, half/full duplex Operating mode • 1000 Mbps, full duplex Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module...
-
Page 4: Installing The Card
Do not touch the components on the PCB. 5.1 Installing the card Locate the slot where you will install the LSQ1LBSC0, and remove the blank panel from the position. This manual describes installing the LSQ1LBSC0 to slot 2. Push the module with the components facing upward into the slot along the guide rails until the positioning hole of the module is seated onto the positioning pin on the backplane. -
Page 5: Removing The Card
Manual version: 6PW103-20141219 BOM: 3123A13N Figure 2 Installing the card 5.2 Removing the card Use a Phillips screwdriver to loosen the captive screws at both sides of the card. Pull the ejector levers at both sides of the card outward to separate it from the backplane, and then pull the card along the guide rails to remove it from the chassis. -
Page 6: Software Upgrade
BOM: 3123A13N H3C recommends that you log in to the card from the switch's CLI the first time you access the card. This section includes a procedure for logging in from the switch's CLI. For more information about other login methods, see H3C SecBlade LB Module Configuration Guides.
